Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCP1700T-3302E/MBVAOIC REG LINEAR 3.3V 250MA SOT89-3 |
1,360 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 250mA | 250mA | 4 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-89-3 |
|
|
MCP1700T-5002E/MBVAOIC REG LINEAR 5V 250MA SOT89-3 |
2,446 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.35V @ 250mA | 250mA | 4 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-89-3 |
|
|
MCP1702T-5002E/MBVAOIC REG LINEAR 5V 250MA SOT89-3 |
3,153 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 13.2V | 5V | - | 0.65V @ 250mA | 250mA | 5 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-89-3 |
|
MCP1703AT-3302E/CBVAOIC REG LIN 3.3V 250MA SOT23A-3 |
3,425 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.725V @ 250mA | 250mA | 5 µA | - | 35dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23A-3 |
|
|
MCP1703T-3002E/CBVAOIC REG LINEAR 3V 250MA SOT23A-3 |
2,668 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3V | - | 0.975V @ 250mA | 250mA | 5 µA | - | 35dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23A-3 |
|
|
MCP1703T-3302E/CBVAOIC REG LIN 3.3V 250MA SOT23A-3 |
2,066 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.725V @ 250mA | 250mA | 5 µA | - | 35dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23A-3 |
|
|
MCP1703T-5002E/CBVAOIC REG LINEAR 5V 250MA SOT23A-3 |
1,325 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.65V @ 250mA | 250mA | 5 µA | - | 35dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23A-3 |
|
MCP1726T-1202E/SNVAOIC REG LINEAR 1.2V 1A 8SOIC |
3,429 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.5V @ 1A | 1A | 3 µA | - | 54dB (100Hz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
MCP1726T-3302E/SNVAOIC REG LINEAR 3.3V 1A 8SOIC |
4,172 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.5V @ 1A | 1A | 3 µA | - | 54dB (100Hz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
MCP1754T-3302E/OTVAOIC REG LINEAR 3.3V 150MA SOT23-5 |
1,572 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.5V @ 150mA | 150mA | 90 µA | 250 µA | 72dB (1kHz) | Power Good, Shutdown | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
MCP1824T-ADJE/OTVAOIC REG LIN POS ADJ 300MA SOT23-5 |
2,343 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 0.8V | 5V | 0.32V @ 300mA | 300mA | 220 µA | - | 55dB (100Hz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
MCP1825ST-3302E/DBVAOIC REG LIN 3.3V 500MA SOT223-3 |
2,001 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 500mA | 500mA | 220 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-223-3 |
|

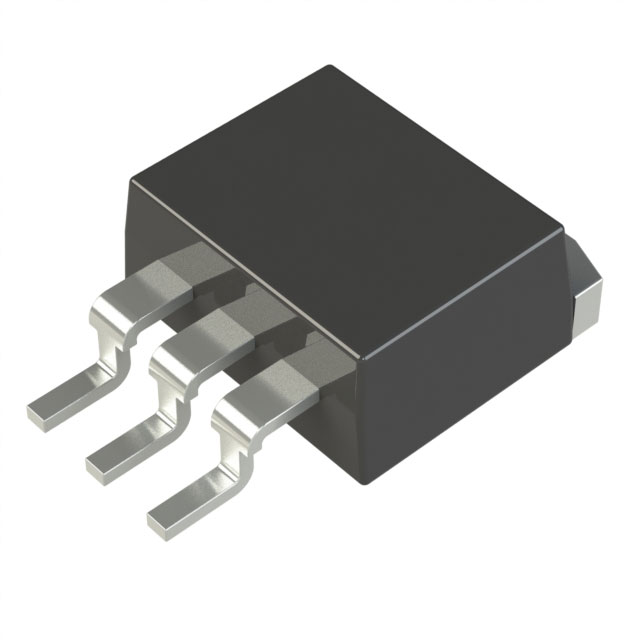

MCP1825ST-3302E/EBVAOIC REG LINEAR 3.3V 500MA 3DDPAK |
1,975 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 500mA | 500mA | 220 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | DDPAK-3 |
|
MCP1825T-3302E/DCVAOIC REG LIN 3.3V 500MA SOT223-5 |
2,874 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 500mA | 500mA | 220 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-223-5 |
|

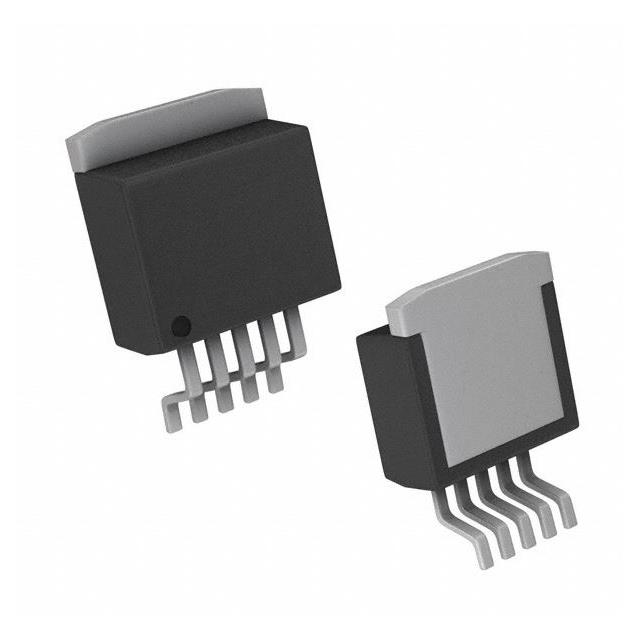

MCP1825T-ADJE/ETVAOIC REG LIN POS ADJ 500MA 5DDPAK |
3,447 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 0.8V | 5V | 0.35V @ 500mA | 500mA | 220 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | DDPAK-5 |
|
|
TC1014-3.0VCT713-VAOIC REG LINEAR 3V 50MA SOT23-5 |
3,613 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.12V @ 50mA | 50mA | 80 µA | - | 64dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
TC1016-3.0VLTTR-VAOIC REG LINEAR 3V 80MA SC70-5 |
2,723 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.3V @ 80mA | 80mA | 90 µA | - | 58dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-70-5 |
|
|
TC1185-5.0VCT713-VAOIC REG LINEAR 5V 150MA SOT23-5 |
1,778 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.4V @ 150mA | 150mA | 80 µA | - | 64dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
TC1187VCT713-VAOIC REG LIN POS ADJ 150MA SOT23-5 |
3,721 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.2V | 5.5V | 0.4V @ 150mA | 150mA | 80 µA | - | 64dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
TC2185-3.3VCTTR-VAOIC REG LINEAR 3.3V 150MA SOT23-5 |
4,269 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.21V @ 150mA | 150mA | 80 µA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
