Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS7808CZ C0GIC REG LINEAR 8V 1A TO220 |
1,227 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | 2V @ 1A (Typ) | 1A | 8 mA | 500 µA | 72dB (120Hz) | Current Limit | Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
|
TS7809CZ C0GIC REG LINEAR 9V 1A TO220 |
3,875 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 9V | - | 2V @ 1A (Typ) | 1A | 8 mA | 500 µA | 72dB (120Hz) | Current Limit | Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
|
TS7812CZ C0GIC REG LINEAR 12V 1A TO220 |
2,695 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 1A (Typ) | 1A | 8 mA | 500 µA | 71dB (120Hz) | Current Limit | Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
|
TS7824CZ C0GIC REG LINEAR 24V 1A TO220 |
4,851 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 40V | 24V | - | 2V @ 1A (Typ) | 1A | 8 mA | 500 µA | 70dB (120Hz) | Current Limit | Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
|
TS79M05CZ C0GIC REG LINEAR -5V 500MA TO220 |
3,171 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -5V | - | 2V @ 500mA (Typ) | 500mA | 8 mA | - | 66dB (120Hz) | Current Limit | Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
TS2950CT33 B0GIC REG LINEAR 3.3V 150MA TO92-3 |
4,302 |
|
Datasheet | - | - | Box | Active | Positive | Fixed | 1 | 30V | - | 3.3V | 0.45V @ 100mA | 150mA | - | 12 mA | - | - | - | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
TS2950CT50 B0GIC REG LINEAR 5V 150MA TO92-3 |
2,999 |
|
Datasheet | - | - | Box | Obsolete | Positive | Fixed | 1 | 30V | - | 5V | 0.45V @ 100mA | 150mA | - | 12 mA | - | - | - | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
TS78L03CT B0GIC REG LINEAR 3.3V 100MA TO92 |
1,088 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 2V @ 100mA (Typ) | 100mA | 6 mA | - | 49dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS78L05CT B0GIC REG LINEAR 5V 100MA TO92 |
3,443 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 1.7V @ 100mA (Typ) | 100mA | 6 mA | - | 49dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS78L09CT B0GIC REG LINEAR 9V 100MA TO92 |
4,952 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | Positive | Fixed | 1 | 35V | 9V | - | 1.7V @ 100mA (Typ) | 100mA | 6 mA | - | 57dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS78L12CT B0GIC REG LINEAR 12V 100MA TO92 |
1,430 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 1.7V @ 100mA (Typ) | 100mA | 6.5 mA | - | 42dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS78L15CT B0GIC REG LINEAR 15V 100MA TO92 |
3,297 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | 1.7V @ 100mA (Typ) | 100mA | 6.6 mA | - | 39dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS79L09CT B0GIC REG LINEAR 9V 100MA TO92 |
3,193 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | Negative | Fixed | 1 | 35V | 9V | - | 1.7V @ 100mA (Typ) | 100mA | 6 mA | - | 57dB (120Hz) | Current Limit | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-92 |
|
|
5962-9212604MPAIC REG LIN POS ADJ 250MA 8CERDIP |
1,077 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Active | Positive | Adjustable (Fixed) | 1 | 16.5V | 1.3V (5V) | 15V | 0.6V @ 250mA | 250mA | 25 µA | - | - | - | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
MAX16910DATA8/V+IC REG LIN POS ADJ 200MA 8TDFN |
2,807 |
|
Datasheet | - | 8-WDFN Exposed Pad | Strip | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.5V (3.3V, 5V) | 11V | 0.6V @ 200mA | 200mA | 30 µA | - | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-TDFN (3x3) |
|
TLE4262GMXUMA2IC REG LINEAR 5V 200MA DSO14 |
1,801 |
|
Datasheet | OPTIREG™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 150mA | 200mA | 50 µA | 23 mA | 54dB (100Hz) | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-14 |
|
NCP140AMXC330TCGIC REG LINEAR 3.3V 150MA 4XDFN |
3,588 |
|
Datasheet | - | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.22V @ 150mA | 150mA | 75 µA | - | 62dB ~ 55dB (100Hz ~ 1kHz) | Enable | Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-XDFN (0.8x0.8) |
|
NCV8161BSN180T1GIC REG LINEAR 1.8V 450MA 5TSOP |
3,535 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.48V @ 450mA | 450mA | 23 µA | - | 91dB ~ 48dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|

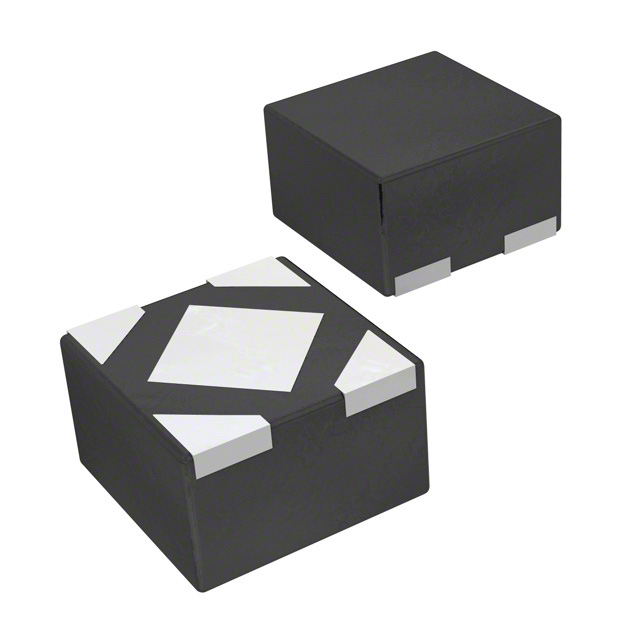

NCP103BMX180TCGIC REG LINEAR 1.8V 150MA 4UDFN |
1,913 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 95 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
SPX29151ICF-3-3IC REG LINEAR 3.3V 1.5A TO263-5 |
1,960 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.6V @ 10.5A | 1.5A | - | 25 mA | - | Enable | Over Current, Reverse Polarity, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
