Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS1353-15-TIC REG LINEAR 1.5V 150MA SOT23-5 |
2,255 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | - | 150mA | 180 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
AS1353-26-TIC REG LINEAR 2.6V 150MA SOT23-5 |
4,279 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.6V | - | 0.6V @ 150mA (Typ) | 150mA | 180 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
AS1353-33-TIC REG LINEAR 3.3V 150MA SOT23-5 |
1,631 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.6V @ 150mA (Typ) | 150mA | 180 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
AS1353-36-TIC REG LINEAR 3.6V 150MA SOT23-5 |
2,319 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.6V @ 150mA (Typ) | 150mA | 180 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
AS1358-BTTT-18IC REG LIN 1.8V 150MA TSOT23-5 |
1,701 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-5 |
|
|
AS1358-BTTT-27IC REG LIN 2.7V 150MA TSOT23-5 |
4,551 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.12V @ 150mA | 150mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-5 |
|
|
AS1358-BTTT-285IC REG LIN 2.85V 150MA TSOT23-5 |
4,650 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.12V @ 150mA | 150mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-5 |
|
|
AS1359-BTTT-18IC REG LIN 1.8V 300MA TSOT23-5 |
4,597 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 300mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-5 |
|
|
AS1359-BTTT-26IC REG LIN 2.6V 300MA TSOT23-5 |
4,037 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.6V | - | 0.23V @ 300mA | 300mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-5 |
|
AS1361-BTTT-45IC REG LIN 4.5V 150MA TSOT23-6 |
1,394 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4.5V | - | 0.095V @ 150mA | 150mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
AS1362-BTTT-25IC REG LIN 2.5V 300MA TSOT23-6 |
1,862 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.23V @ 300mA | 300mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
AS1362-BTTT-27IC REG LIN 2.7V 300MA TSOT23-6 |
4,125 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.23V @ 300mA | 300mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
AS1362-BTTT-285IC REG LIN 2.85V 300MA TSOT23-6 |
2,043 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.23V @ 300mA | 300mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
AS1362-BTTT-45IC REG LIN 4.5V 300MA TSOT23-6 |
4,837 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4.5V | - | 0.2V @ 300mA | 300mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
AS1363-BSTT-15IC REG LINEAR 1.5V 500MA SOT23-6 |
1,057 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | - | 500mA | 150 µA | 200 µA | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
|
AS1363-BSTT-30IC REG LINEAR 3V 500MA SOT23-6 |
1,776 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | - | 500mA | 150 µA | 200 µA | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
|
AS1363-BSTT-45IC REG LINEAR 4.5V 500MA SOT23-6 |
4,708 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4.5V | - | - | 500mA | 150 µA | 200 µA | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|

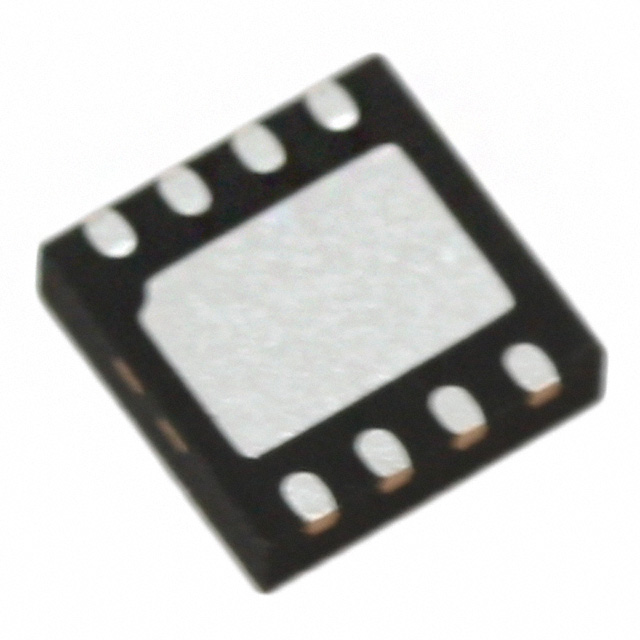

AS1364-BTDT-33IC REG LINEAR 3.3V 1A 8TDFN |
1,214 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.32V @ 1A | 1A | 150 µA | 200 µA | 78dB ~ 46dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-TDFN (3x3) |
|

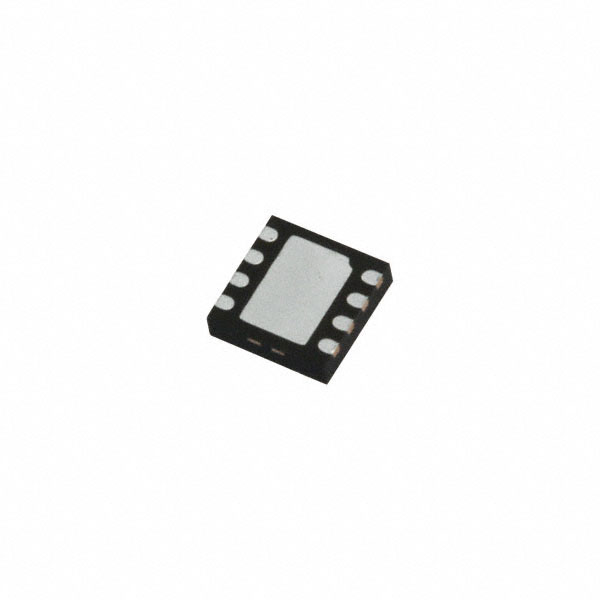

AS1364-BTDT-45IC REG LINEAR 4.5V 1A 8TDFN |
2,947 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4.5V | - | - | 1A | 150 µA | 200 µA | 78dB ~ 46dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (3x3) |
|
AS1367-BTDT-12IC REG LINEAR 1.2V 150MA 8TDFN |
2,092 |
|
Datasheet | - | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 150mA | 16 µA | 30 µA | 75dB ~ 52dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 8-TDFN (2x2) |
