Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV8674DS120GIC REG LINEAR 12V 350MA D2PAK |
4,865 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Positive | Fixed | 1 | 45V | 12V | - | 0.6V @ 350mA | 350mA | 42 µA | - | 67dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-3 |
|
|
NCV8674DS120R4GIC REG LINEAR 12V 350MA D2PAK |
3,742 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 12V | - | 0.6V @ 350mA | 350mA | 42 µA | - | 67dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-3 |
|
L4993DIC REG LINEAR 5V 150MA 8SO |
3,114 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.4V @ 150mA | 150mA | 125 µA | 2 mA | 55dB (100Hz) | Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
L4995KIC REG LIN 5V 500MA POWERSSO-24 |
3,344 |
|
Datasheet | - | 24-PowerBSOP (0.295", 7.50mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 400mA | 500mA | 160 µA | 2.7 mA | 55dB (100Hz) | Enable, Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PowerSSO-24 |
|
|
L4988DIC REG LINEAR 5V 200MA 8SO |
2,380 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 200mA | 200mA | 150 µA | 2.5 mA | 60dB (100Hz) | Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
L4993MDIC REG LINEAR 5V 150MA 20SO |
4,867 |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.4V @ 150mA | 150mA | 125 µA | 2 mA | 55dB (100Hz) | Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 20-SO |
|
L4995JIC REG LIN 5V 500MA POWERSSO-12 |
4,198 |
|
Datasheet | - | PowerSSO-12 | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 400mA | 500mA | 160 µA | 2.7 mA | 55dB (100Hz) | Enable, Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PowerSSO-12 |
|
|
L4995AJIC REG LIN 5V 500MA POWERSSO-12 |
1,387 |
|
Datasheet | - | PowerSSO-12 | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 400mA | 500mA | 160 µA | 2.7 mA | 55dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PowerSSO-12 |
|
LX8213-00ISEIC REG LIN POS ADJ 300MA SOT23-5 |
1,341 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.2V | 5.5V | 0.3V @ 300mA | 300mA | 90 µA | - | 68dB ~ 54dB (100Hz ~ 10kHz) | Enable | Over Temperature, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|

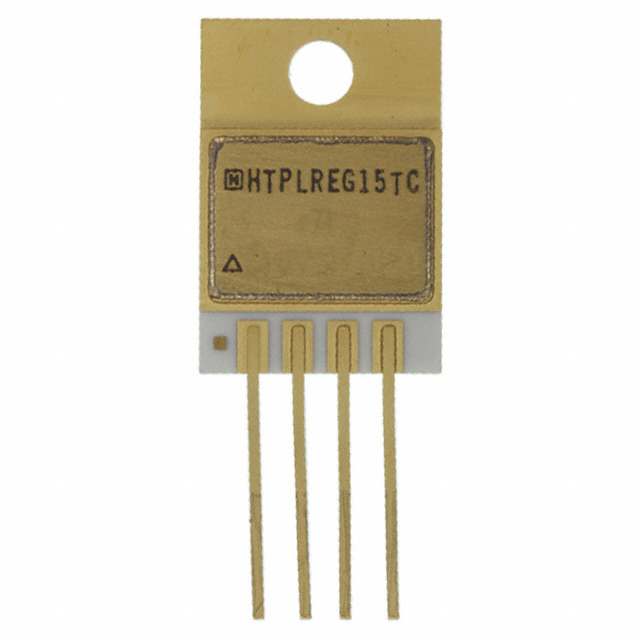

HTPLREG15TCIC REG LIN 15V 500MA 4PIN PWR |
1,546 |
|
Datasheet | - | 4-SIP | Bulk | Active | Positive | Fixed | 1 | 28V | 15V | - | 3V @ 250mA | 500mA | 1.5 mA | - | 66dB (120Hz) | Enable | Short Circuit | -55°C ~ 225°C | - | - | Through Hole | Hermetic 4-Pin Power |
|
HTPLREG10TCIC REG LIN 10V 500MA 4PIN PWR |
2,709 |
|
Datasheet | - | 4-SIP | Bulk | Active | Positive | Fixed | 1 | 28V | 10V | - | 3V @ 250mA | 500mA | 1.5 mA | - | 66dB (120Hz) | Enable | Short Circuit | -55°C ~ 225°C | - | - | Through Hole | Hermetic 4-Pin Power |
|
|
HTPLREG12TCIC REG LIN 12V 500MA 4PIN PWR |
3,904 |
|
Datasheet | - | 4-SIP | Bulk | Active | Positive | Fixed | 1 | 28V | 12V | - | 3V @ 250mA | 500mA | 1.5 mA | - | 66dB (120Hz) | Enable | Short Circuit | -55°C ~ 225°C | - | - | Through Hole | Hermetic 4-Pin Power |
|
FAN2564UMP15XIC REG LINEAR 1.5V 300MA 6UMLP |
2,396 |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.5V | - | 0.16V @ 300mA | 300mA | 75 µA | 200 µA | 60dB (1kHz) | Enable | Over Temperature, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 6-UMLP (2x2) |
|
|
PQ1LA335MSPQIC REG LINEAR 3.3V 300MA SOT89 |
3,266 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 3.3V | - | 0.7V @ 300mA | 300mA | 800 µA | - | 55dB (400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89 |
|
MAX8840ELT45+TIC REG LINEAR 4.5V 150MA 6UDFN |
4,145 |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 4.5V | - | 0.12V @ 120mA (Typ) | 150mA | 90 µA | - | 78dB ~ 54dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-µDFN (1.5x1) |
|
TA48015BF(T6L1,NQ)IC REG LINEAR 1.5V 1A PW-MOLD |
1,928 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1.5V | - | 1.9V @ 1A (Typ) | 1A | 1.7 mA | 20 mA | 65dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | PW-MOLD |
|
|
TA48018BF(T6L1,NQ)IC REG LINEAR 1.8V 1A PW-MOLD |
4,206 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1.8V | - | 1.6V @ 1A (Typ) | 1A | 1.7 mA | 20 mA | 66dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | PW-MOLD |
|
|
TA48LS00F(TE85L,F)IC REG LINEAR POS ADJ 300MA PS8 |
2,244 |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 14V | 1.5V | 5V | 0.6V @ 300mA | 300mA | 1.7 mA | 10 mA | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | PS-8 (2.9x2.4) |
|
TCR5SB30A(T5L,F,T)IC REG LINEAR 3V 150MA SMV |
1,603 |
|
Datasheet | TCR5SB | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3V | - | 0.19V @ 50mA | 150mA | 75 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
|
TCR5SB33A(T5L,F,T)IC REG LINEAR 3.3V 150MA SMV |
4,285 |
|
Datasheet | TCR5SB | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.19V @ 50mA | 150mA | 75 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
