Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP220ACBZ-2812R7IC REG LINEAR 1.2V/2.8V 6WLCSP |
4,616 |
|
Datasheet | - | 6-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 2.8V | - | -, 0.23V @ 200mA | 200mA | 120 µA | 220 µA | 68dB ~ 40dB (100Hz ~ 1MHz), - | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.45x0.95) |
|
|
ADP220ACBZ-2827R7IC REG LINEAR 2.7V/2.8V 6WLCSP |
4,638 |
|
Datasheet | - | 6-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 2.7V, 2.8V | - | 0.23V @ 200mA, 0.23V @ 200mA | 200mA | 120 µA | 220 µA | 68dB ~ 40dB (100Hz ~ 1MHz), - | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.45x0.95) |
|
TA58L05F(TE16L1,NQIC REG LINEAR 5V 250MA PW-MOLD |
4,344 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 29V | 5V | - | 0.4V @ 200mA | 250mA | 1 mA | 50 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Surface Mount | PW-MOLD |
|
|
TA58L08F(TE16L1,NQIC REG LINEAR 8V 250MA PW-MOLD |
2,806 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 29V | 8V | - | 0.4V @ 200mA | 250mA | 1 mA | 50 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Surface Mount | PW-MOLD |
|

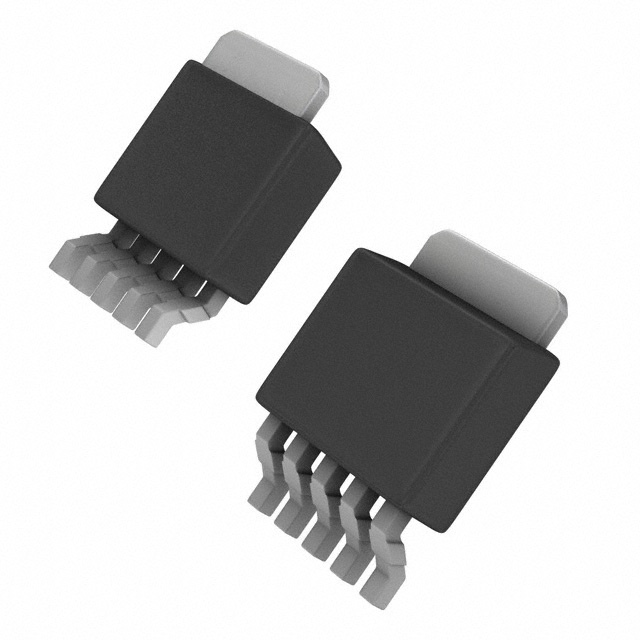

TA58LT00F(T6L1,Q)IC REG LIN POS ADJ 150MA 5HSIP |
3,998 |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 26V | 2.5V | 13.4V | 0.6V @ 100mA | 150mA | 0.8 mA | 15 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 5-HSIP |
|
|
TA58M05F(TE16L1,NQIC REG LINEAR 5V 500MA PW-MOLD |
2,572 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 29V | 5V | - | 0.65V @ 500mA | 500mA | 1 mA | 80 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 105°C | - | - | Surface Mount | PW-MOLD |
|
|
TA58M08F(TE16L1,NQIC REG LINEAR 8V 500MA PW-MOLD |
3,869 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 29V | 8V | - | 0.65V @ 500mA | 500mA | 1 mA | 80 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 105°C | - | - | Surface Mount | PW-MOLD |
|
|
TA58M10F(TE16L1,NQIC REG LINEAR 10V 500MA PW-MOLD |
2,627 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 29V | 10V | - | 0.65V @ 500mA | 500mA | 1.2 mA | 80 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 105°C | - | - | Surface Mount | PW-MOLD |
|
|
TA58M12F(TE16L1,NQIC REG LINEAR 12V 500MA PW-MOLD |
4,528 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 29V | 12V | - | 0.65V @ 500mA | 500mA | 1.2 mA | 80 mA | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 105°C | - | - | Surface Mount | PW-MOLD |
|
TA78DS05AF(TE12L,FIC REG LINEAR 5V 30MA PW-MINI |
1,760 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 29V | 5V | - | 0.3V @ 10mA | 30mA | 1 mA | - | - | - | Over Current, Over Temperature, Over Voltage, Transient Voltage | -40°C ~ 85°C | - | - | Surface Mount | PW-MINI (SOT-89) |
|
TA78L015AP(F,M)IC REG LINEAR 15V 150MA LSTM |
2,215 |
|
Datasheet | - | TO-226-3, TO-92-3 Long Body | Bulk | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | - | 150mA | 6 mA | 6.5 mA | 41dB (120Hz) | - | Over Current, Over Temperature | -30°C ~ 85°C | - | - | Through Hole | LSTM |
|
TA78L12PF(TE85L,F)IC REG LINEAR 12V 150MA PS-8 |
4,795 |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 150mA (Typ) | 150mA | 6 mA | 6.5 mA | 41dB (120Hz) | - | Over Current, Over Temperature | -30°C ~ 85°C | - | - | Surface Mount | PS-8 (2.9x2.4) |
|
LM78M06CTIC REG LINEAR 6V 500MA TO220-3 |
4,333 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 6V | - | 2V @ 500mA (Typ) | 500mA | 6 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LM78M08CTIC REG LINEAR 8V 500MA TO220-3 |
2,281 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | 2V @ 500mA (Typ) | 500mA | 6 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM78M24CTIC REG LINEAR 24V 500MA TO220-3 |
1,404 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 40V | 24V | - | 2V @ 500mA (Typ) | 500mA | 6 mA | - | 70dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM78T05CTIC REG LINEAR 5V 3A TO220-3 |
3,179 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2.5V @ 3A | 3A | 6 mA | - | 75dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM78T12CTIC REG LINEAR 12V 3A TO220-3 |
2,684 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 2.5V @ 3A | 3A | 6 mA | - | 67dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM78T15CTIC REG LINEAR 15V 3A TO220-3 |
2,884 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 40V | 15V | - | 2.5V @ 3A | 3A | 6 mA | - | 65dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM78M12CTIC REG LINEAR 12V 500MA TO220-3 |
1,369 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 500mA (Typ) | 500mA | 6 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LM78M15CTIC REG LINEAR 15V 500MA TO220-3 |
1,195 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | 2V @ 500mA (Typ) | 500mA | 6 mA | - | 70dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
