Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP38690DTX-3.3/NOPBIC REG LINEAR 3.3V 1A TO252-3 |
5,288 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 3.3V | - | 1V @ 1A | 1A | 55 µA | 100 µA | 55dB (120Hz) | - | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
TPS7B6350QPWPRQ1IC REG LINEAR 5V 300MA 16HTSSOP |
3,881 |
|
Datasheet | - | 16-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.4V @ 300mA | 300mA | 42 µA | 98 µA | 60dB ~ 40dB (100Hz ~ 100kHz) | Enable | Over Current | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 16-HTSSOP |
|
LD1085D2M33RIC REG LINEAR 3.3V 3A D2PAK-3 |
9,469 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 3.3V | - | 1.5V @ 3A | 3A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
LM2940SX-5.0/NOPBIC REG LIN 5V 1A DDPAK/TO263-3 |
5,395 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 5V | - | 1V @ 1A | 1A | 10 mA | 15 mA | 64dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
RT9048GSPIC REG LINEAR POS ADJ 2A 8SOP |
5,189 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 0.5V | 5.4V | 0.6V @ 2A | 2A | 0.7 mA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP-EP |
|
MIC5219-3.3YML-TRIC REG LINEAR 3.3V 500MA 6MLF |
41,417 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 3.3V | - | 0.6V @ 500mA | 500mA | 8 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC5219YMT-TRIC REG LIN POS ADJ 500MA 6TMLF |
18,883 |
|
Datasheet | - | 6-UDFN Exposed Pad, 6-TMLF® | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 12V | Adjustable | - | 0.6V @ 500mA | 500mA | 8 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-TMLF® (2x2) |
|
NCV8184DR2GIC REG LINEAR POS ADJ 70MA 8SOIC |
17,247 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 42V | Tracking | - | 0.6V @ 60mA | 70mA | 20 µA | 7 mA | 60dB (120Hz) | Enable | Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
.jpg "NCP785AH50T1G")
|
NCP785AH50T1GIC REG LINEAR 5V 10MA SOT89-3 |
7,647 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 450V | 5V | - | - | 10mA | 21 µA | - | 70dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-3 |
|
LM2937IMPX-5.0/NOPBIC REG LINEAR 5V 500MA SOT223-4 |
5,896 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 5V | - | 1V @ 500mA | 500mA | 10 mA | 20 mA | - | - | Mirror-Image Insertion, Over Temperature, Short Circuit, Transient Voltage | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-223-4 |
|
LM2937ET-3.3/NOPBIC REG LINEAR 3.3V 500MA TO220-3 |
4,429 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 26V | 3.3V | - | 1V @ 500mA | 500mA | 10 mA | 20 mA | - | - | Mirror-Image Insertion, Over Temperature, Short Circuit, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
TPS73250DBVTIC REG LINEAR 5V 250MA SOT23-5 |
4,425 |
|
Datasheet | TPS732xx | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 5V | - | 0.15V @ 250mA | 250mA | 550 µA | 950 µA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
TLE42662GHTMA2IC REG LINEAR 5V 150MA SOT223-4 |
17,038 |
|
Datasheet | OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 60 µA | 4 mA | 68dB (100Hz) | Inhibit | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
|
BA33BC0FP-E2IC REG LINEAR 3.3V 1A TO252-3 |
1,499 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | - | 1A | 0.5 mA | 900 µA | - | - | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Surface Mount | TO-252 |
|
|
NCP3334DADJR2GIC REG LIN POS ADJ 500MA 8SOIC |
2,958 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 12V | 1.25V | 10V | 0.34V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
S-812C50AMC-C3ET2GIC REG LINEAR 5V 75MA SOT23-5 |
35,602 |
|
Datasheet | S-812C | SC-74A, SOT-753 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 16V | 5V | - | 0.25V @ 10mA | 75mA | 500 nA | 2.1 µA | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
ZSR500GTAIC REG LINEAR 5V 200MA SOT223 |
14,332 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 5V | - | - | 200mA | 600 µA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | -55°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
LM1085ISX-3.3/NOPBIC REG LIN 3.3V 3A DDPAK/TO263-3 |
6,335 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 27V | 3.3V | - | 1.5V @ 3A | 3A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
|
LM1085ISX-ADJ/NOPBIC REG LIN POS ADJ 3A DDPAK |
1,780 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 29V | 1.25V | 15V | 1.5V @ 3A | 3A | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|

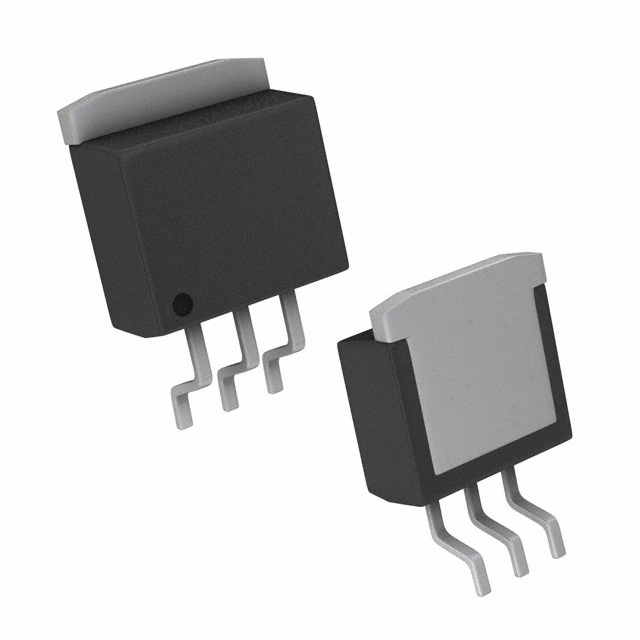

TLE42744GV50ATMA1IC REG LINEAR 5V 400MA TO263-3 |
3,010 |
|
Datasheet | OPTIREG™ | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO263-3-1 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
