Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM340T-15/NOPBIC REG LINEAR 15V 1.5A TO220-3 |
2,257 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 35V | 15V | - | 2V @ 1A | 1.5A | 8 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LM7805SX/NOPBIC REG LIN 5V 1.5A DDPAK/TO263-3 |
1,286 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A | 1.5A | 8 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
LM3940IMP-3.3/NOPBIC REG LINEAR 3.3V 1A SOT223-4 |
7,955 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7.5V | 3.3V | - | 0.2V @ 100mA | 1A | - | - | - | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
LM2940T-12.0/NOPBIC REG LINEAR 12V 1A TO220-3 |
5,659 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 26V | 12V | - | 1V @ 1A | 1A | 10 mA | 15 mA | 66dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM2940T-5.0/NOPBIC REG LINEAR 5V 1A TO220-3 |
3,343 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 26V | 5V | - | 1V @ 1A | 1A | 10 mA | 15 mA | 64dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
TLE4284DVATMA1IC REG LIN POS ADJ 1A TO252-3-11 |
2,297 |
|
Datasheet | OPTIREG™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.25V | 38.6V | 1.4V @ 1A | 1A | 120 µA | 5 mA | 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3-11 |
|
MCP1827ST-3302E/EBIC REG LINEAR 3.3V 1.5A 3DDPAK |
840 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.6V @ 1.5A | 1.5A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-3 |
|

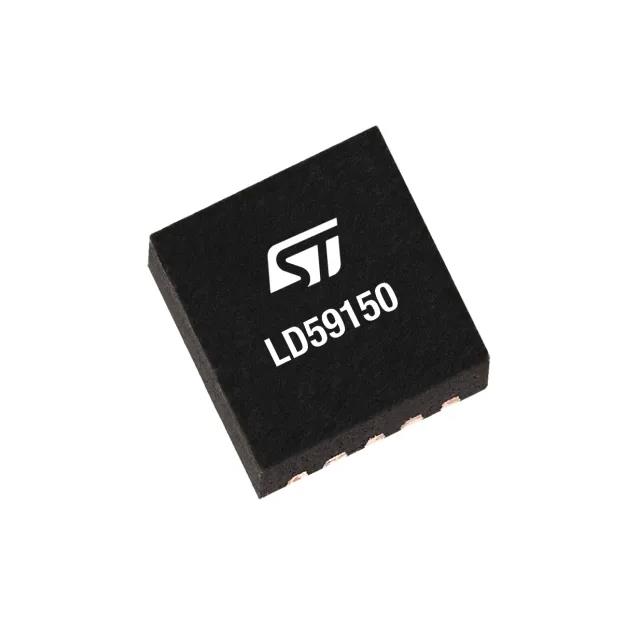

LD59150PURIC REG LINEAR POS ADJ 1.5A 10DFN |
630 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.125V @ 1.5A | 1.5A | 1.5 mA | - | 70dB ~ 30dB (1kHz ~ 300kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 10-DFN (3x3) |
|
TLE42744GSV33HTMA1IC REG LIN 3.3V 400MA SOT223-4 |
21,139 |
|
Datasheet | OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
|
MIC2920A-5.0WS-TRIC REG LINEAR 5V 400MA SOT223-3 |
13,400 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 5V | - | 0.75V @ 400mA | 400mA | 300 µA | 12 mA | - | - | Load Dump, Over Current, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
MIC5319-3.3YD5-TRIC REG LIN 3.3V 500MA TSOT23-5 |
6,312 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.4V @ 500mA | 500mA | 150 µA | - | 70dB ~ 60dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
|
MIC5201-3.3YS-TRIC REG LIN 3.3V 200MA SOT223-3 |
4,566 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 3.3V | - | 0.4V @ 150mA | 150mA | 400 µA | 2 mA | 75dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
LP38693MP-ADJ/NOPBIC REG LIN POS ADJ 500MA SOT223 |
3,680 |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 10V | 1.25V | 9V | - | 500mA | 55 µA | 100 µA | 55dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
|
MIC2920A-3.3WS-TRIC REG LIN 3.3V 400MA SOT223-3 |
2,980 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 3.3V | - | 0.75V @ 400mA | 400mA | 300 µA | 12 mA | - | - | Load Dump, Over Current, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
MIC2920A-12WSIC REG LINEAR 12V 400MA SOT223-3 |
1,773 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Active | Positive | Fixed | 1 | 26V | 12V | - | 0.75V @ 400mA | 400mA | 300 µA | 12 mA | - | - | Load Dump, Over Current, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
NCV8161ASN330T1GIC REG LINEAR 3.3V 450MA 5TSOP |
24,452 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.305V @ 450mA | 450mA | 23 µA | - | 91dB ~ 48dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
|
LM337IMPX/NOPBIC REG LIN NEG ADJ 1.5A SOT223-4 |
15,478 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | - | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
LM317AT/NOPBIC REG LIN POS ADJ 1.5A TO220-3 |
7,399 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
NCV8161BSN330T1GIC REG LINEAR 3.3V 450MA 5TSOP |
6,482 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.305V @ 450mA | 450mA | 23 µA | - | 91dB ~ 48dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
SPX2945M3-L-3-3/TRIC REG LINEAR 3.3V 400MA SOT223 |
5,676 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 3.3V | - | 0.7V @ 400mA | 400mA | 300 µA | 25 mA | 31dB (100kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-3 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
