Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL780-05KCSIC REG LINEAR 5V 1.5A TO220-3 |
1,774 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 25V | 5V | - | 2V @ 1A | 1.5A | - | - | 85dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
L4989DIC REG LINEAR 5V 150MA 8SO |
3,779 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 31V | 5V | - | 0.4V @ 150mA | 150mA | 69 µA | 2 mA | 55dB (100Hz) | Enable, Reset Output, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | 8-SOIC |
|

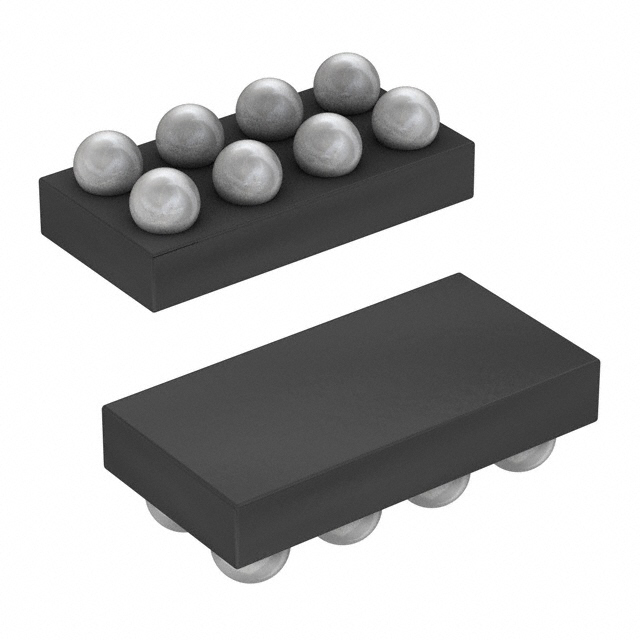

MAX8559EBAAA+TIC REG LINEAR 3.3V/3.3V 8UCSP |
4,571 |
|
Datasheet | - | 8-WFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 3.3V, 3.3V | - | 0.12V @ 100mA, 0.12V @ 100mA | 300mA, 300mA | 290 µA | - | 70dB ~ 54dB (10kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-UCSP (2.02x1.02) |
|
MAX8559ETAO1+TIC REG LINEAR 2.6V/1.85V 8TDFN |
2,518 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 2.6V, 1.85V | - | 0.12V @ 100mA, - | 300mA, 300mA | 290 µA | - | 70dB ~ 54dB (10kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-TDFN (3x3) |
|
|
MAX8559ETA8A+TIC REG LINEAR 1.5V/3.3V 8TDFN |
1,878 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 3.3V | - | -, 0.12V @ 100mA | 300mA, 300mA | 290 µA | - | 70dB ~ 54dB (10kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-TDFN (3x3) |
|
|
MAX8559EBAGG+TIC REG LINEAR 3V/3V 8UCSP |
4,836 |
|
Datasheet | - | 8-WFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 3V, 3V | - | 0.12V @ 100mA, 0.12V @ 100mA | 300mA, 300mA | 290 µA | - | 70dB ~ 54dB (10kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-UCSP (2.02x1.02) |
|
LM2936HVBMAX5.0IC REG LINEAR 5V 50MA 8SOIC |
1,549 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 60V | 5V | - | 0.4V @ 50mA | 50mA | 9 µA | 2.5 mA | 60dB (120Hz) | Shutdown | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
LP3879MRX-1.0IC REG LIN 1V 800MA 8SO POWERPAD |
4,236 |
|
Datasheet | - | 8-PowerSOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1V | - | - | 800mA | 1.4 mA | 2.2 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
|
|
LP38841MRX-ADJIC REG LIN POS ADJ 800MA 8SO |
3,535 |
|
Datasheet | - | 8-PowerSOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 0.56V | 1.5V | 0.21V @ 800mA | 800mA | 30 µA | 40 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
|
LD29300V50IC REG LINEAR 5V 3A TO220AB |
3,967 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 14V | 5V | - | 0.7V @ 3A | 3A | 50 mA | 100 mA | 64dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
R1514H120B-T1-JEIC REG LINEAR 12V 150MA SOT89-5 |
4,229 |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 12V | - | 0.4V @ 150mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
R1515S050B-E2-JEIC REG LINEAR 5V 50MA 6HSOP |
4,246 |
|
Datasheet | R1515x | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.4V @ 20mA | 50mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-HSOP-J |
|
|
R1515S033B-E2-JEIC REG LINEAR 3.3V 50MA 6HSOP |
3,543 |
|
Datasheet | R1515x | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.7V @ 20mA | 50mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-HSOP-J |
|
|
R1514H090B-T1-JEIC REG LINEAR 9V 150MA SOT89-5 |
3,976 |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 9V | - | 0.4V @ 150mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
R1514H033B-T1-JEIC REG LINEAR 3.3V 150MA SOT89-5 |
4,253 |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.7V @ 120mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
R1514H098B-T1-JEIC REG LINEAR 9.8V 150MA SOT89-5 |
4,335 |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 9.8V | - | 0.4V @ 150mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
R1514H030B-T1-JEIC REG LINEAR 3V 150MA SOT89-5 |
3,919 |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3V | - | 1V @ 120mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
R1514H080B-T1-JEIC REG LINEAR 8V 150MA SOT89-5 |
1,588 |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 8V | - | 0.4V @ 150mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
R1514H050B-T1-JEIC REG LINEAR 5V 150MA SOT89-5 |
3,187 |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.4V @ 150mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
R1514H040B-T1-JEIC REG LINEAR 4V 150MA SOT89-5 |
2,169 |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 4V | - | 0.5V @ 120mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
