Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

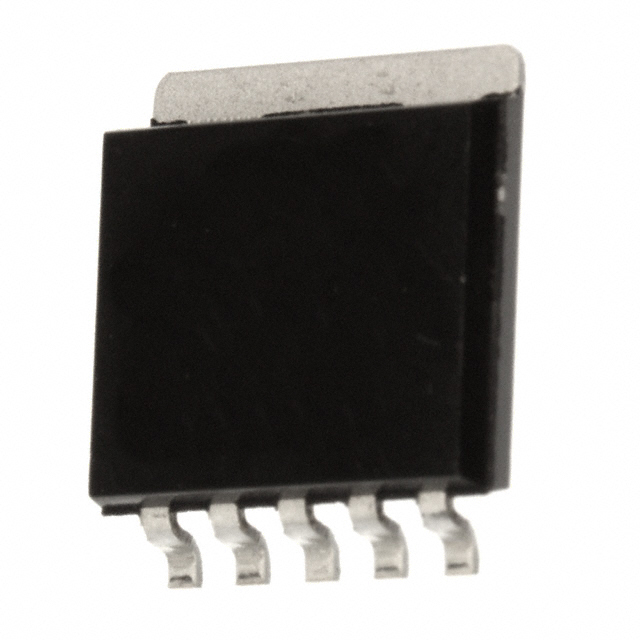

LX8816-04CDFIC REG LIN POS ADJ 1A/1A 5SPAK |
4,991 |
|
Datasheet | - | SPAK-5 (5 Leads + Tab) | Bulk | Obsolete | Positive | Adjustable (Fixed) | 2 | 10V | 1.25V (3.3V) | 5.5V | 1.3V @ 1A, 1.3V @ 1A | 1A, 1A | 3.8 mA | 6 A | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 5-SPAK |
|
MIC37139-1.8YS TRIC REG LINEAR 1.8V 1.5A SOT223-3 |
4,744 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.5V @ 1.5A | 1.5A | - | - | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
|
MIC37139-2.5YS TRIC REG LINEAR 2.5V 1.5A SOT223-3 |
3,745 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.5V @ 1.5A | 1.5A | - | - | - | - | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
LX8213-00ISE-TRIC REG LIN POS ADJ 300MA SOT23-5 |
3,496 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 6V | 0.8V | 5.5V | 0.17V @ 300mA | 300mA | 90 µA | - | 68dB ~ 54dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
MPQ20056GG-18-AEC1-PIC REG LINEAR 1.8V 250MA 8QFN |
1,246 |
|
Datasheet | - | 8-TFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 250mA | 250 µA | 330 µA | 65dB ~ 33dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-QFN (2x2) |
|
|
MPQ20056GG-33-AEC1-PIC REG LINEAR 3.3V 250MA 8QFN |
2,741 |
|
Datasheet | - | 8-TFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 250mA | 250mA | 250 µA | 330 µA | 65dB ~ 33dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-QFN (2x2) |
|
BA33B00FP-E2IC REG LINEAR POS ADJ TO252 |
4,969 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | Positive | Adjustable (Fixed) | 2 | 16V | 1.267V (3.3V) | 5V | 0.5V @ 500mA, 0.5V @ 200mA | 1A, 500mA | 0.8 mA | 1.4 mA | 58dB (120Hz), 55dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TO-252 |
|
BA3257FP-E2IC REG LIN POS ADJ 1A/1A TO252-5 |
3,622 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 2 | 14V | 1.25V (3.3V) | 12.7V | 1.3V @ 1A, 1.3V @ 1A | 1A, 1A | 3 mA | 5 mA | - | - | Over Current, Over Temperature | 0°C ~ 85°C | - | - | Surface Mount | TO-252-5 |
|
LP2950CDT-5.0IC REG LINEAR 5V 100MA DPAK |
2,202 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
LP2950CDT-3.0IC REG LINEAR 3V 100MA DPAK |
3,144 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 30V | 3V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
LP2950CDT-3.3IC REG LINEAR 3.3V 100MA DPAK |
4,113 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
TPS77601PWPRG4IC REG LIN POS ADJ 20HTSSOP |
2,137 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 10V | 1.2V | 5.5V | - | 500mA | 125 µA | - | 60dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
LP2988IM-2.5IC REG LINEAR 2.5V 200MA 8SOIC |
1,346 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 16V | 2.5V | - | 0.35V @ 200mA | 200mA | 120 µA | 3.7 mA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
LP2988IM-3.2/NOPBIC REG LINEAR 3.2V 200MA 8SOIC |
3,317 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 16V | 3.2V | - | 0.35V @ 200mA | 200mA | 120 µA | 3.7 mA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
LP2988IM-3.8/NOPBIC REG LINEAR 3.8V 200MA 8SOIC |
3,551 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 16V | 3.8V | - | 0.35V @ 200mA | 200mA | 120 µA | 3.7 mA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
MAX38911ANT+TIC REG 500MA |
2,801 |
|
Datasheet | - | 6-XFBGA, WLBGA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 5V | 0.3V @ 500mA | 500mA | 750 µA | - | 80dB ~ 44dB (1kHz ~ 1MHz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WLP (1.42x0.83) |
|
FAN1117AT33IC REG LINEAR 3.3V 1A TO220-3 |
2,355 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 18V | 3.3V | - | 1.2V @ 1A | 1A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LP3879SDX-1.2IC REG LINEAR 1.2V 800MA 8WSON |
2,374 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.2V | - | - | 800mA | 1.4 mA | 2.2 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|
|
IRU1150CMIC REG LINEAR POS ADJ 4A TO263-5 |
3,803 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Adjustable | 1 | 7V | 1.25V | 5.5V | 1.2V @ 4A | 4A | 10 mA | - | 70dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
LP2966IMMX-1818IC REG LINEAR 1.8V 150MA 8VSSOP |
2,894 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 7V | 1.8V | - | 0.27V @ 150mA | 150mA | 300 µA | 600 µA | 60dB ~ 40dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
