Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS7A6601QDGNRQ1IC REG LIN POS ADJ 150MA 8HVSSOP |
4,478 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.5V | 5V | 0.45V @ 150mA | 150mA | 20 µA | - | 60dB ~ 40dB (100Hz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO), Watchdog | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-HVSSOP |
|
S-1318D18-M5T1U4IC REG LINEAR 1.8V 100MA SOT23-5 |
3,690 |
|
Datasheet | S-1318 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.07V @ 10mA | 100mA | 250 nA | - | - | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
LM2940IMP-9.0/NOPBIC REG LINEAR 9V 1A SOT223-4 |
3,565 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 9V | - | 1V @ 1A | 1A | 10 mA | 15 mA | 64dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-4 |
|
NCV8705ML33TCGIC REG LINEAR 3.3V 500MA 8DFNW |
2,996 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.35V @ 500mA | 500mA | 25 µA | 260 µA | 73dB ~ 56dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-DFNW (3x3) |
|
TPS72733DSETIC REG LINEAR 3.3V 250MA 6WSON |
1,255 |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 200mA | 250mA | 110 µA | 130 µA | 85dB ~ 45dB (10Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
|
LM2940IMP-15/NOPBIC REG LINEAR 15V 1A SOT223-4 |
633 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 15V | - | 1V @ 1A | 1A | 10 mA | 15 mA | - | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-4 |
|

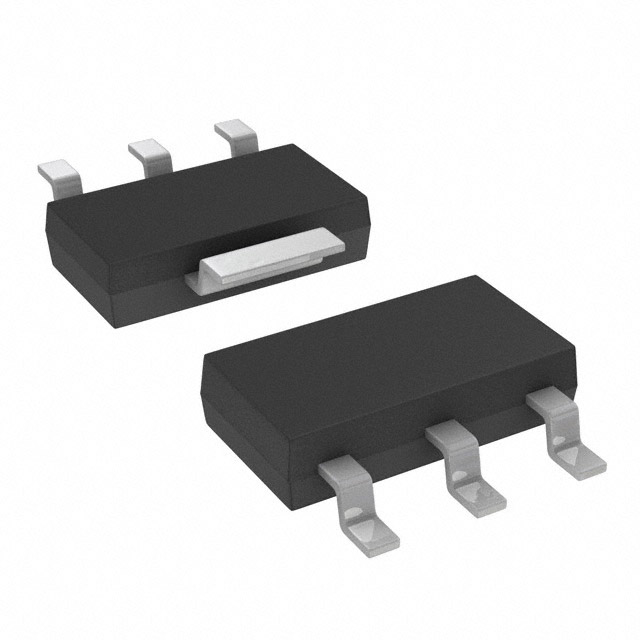

TLE42642GHTMA1IC REG LINEAR 5V 150MA SOT223-4 |
10,575 |
|
Datasheet | OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 70 µA | 4 mA | 68dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
|
TLS115D0LDXUMA1IC REG LIN POS ADJ 150MA TSON-10 |
4,056 |
|
Datasheet | OPTIREG™ | 10-TFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | 2V | 14V | 0.5V @ 150mA | 150mA | 90 µA | 14 mA | 85dB (100Hz) | Enable, Power Good | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSON-10 |
|
BD750L05G-CTRIC REG LINEAR 5V 50MA 5SSOP |
3,078 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 50mA | 50mA | 13 µA | 15 µA | 60dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 5-SSOP |
|
NCV7812BD2TR4GIC REG LINEAR 12V 1A D2PAK |
935 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 60dB (1kHz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-3 |
|
NJW4184U3-33B-TE2IC REG LINEAR 3.3V 300MA SOT89-3 |
7,110 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 3.3V | - | 0.1V @ 100mA | 300mA | 9 µA | - | 40dB (1kHz) | - | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-3 |
|
TLE42664GHTMA2IC REG LINEAR 5V 100MA SOT223-4 |
6,430 |
|
Datasheet | OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 100mA | 100mA | 60 µA | 4 mA | 68dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
_4040208^C.jpg "LM2941CT/NOPB")
|
LM2941CT/NOPBIC REG LINEAR POS ADJ 1A TO220-5 |
5,360 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Adjustable | 1 | 26V | 5V | 20V | 1V @ 1A | 1A | 10 mA | 15 mA | - | Enable | Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
LM1086CT-3.3/NOPBIC REG LINEAR 3.3V 1.5A TO220-3 |
3,138 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 27V | 3.3V | - | 1.5V @ 1.5A | 1.5A | 5 mA | 10 mA | 72dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
TPS7B8601DQDDARQ1IC REG LIN POS ADJ 8SO PWRPAD |
2,301 |
|
Datasheet | - | 8-PowerSOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Adjustable | 1 | 40V | 1.2V | 18V | 0.570V @ 500mA | 500mA | 26 µA | - | 70dB (1kHz) | Current Limit, Delay, Enable, Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SO PowerPad |
|
LD1085V50IC REG LINEAR 5V 3A TO220AB |
1,508 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 30V | 5V | - | 1.5V @ 3A | 3A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
LD1085VIC REG LINEAR POS ADJ 3A TO220 |
1,242 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Adjustable | 1 | 30V | 1.25V | 28.5V | 1.5V @ 3A | 3A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
,TO-226_bentlead.jpg "TL750L10CLPR")
|
TL750L10CLPRIC REG LINEAR 10V 150MA TO92-3 |
1,718 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 10V | - | 0.6V @ 150mA | 150mA | 2 mA | 12 mA | 65dB (120Hz) | - | Over Current, Over Temperature, Over Voltage, Reverse Polarity | 0°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
S-1206B33-M3T1UIC REG LINEAR 3.3V 250MA SOT23-3 |
4,421 |
|
Datasheet | S-1206 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.23V @ 100mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
MIC5216-5.0YM5-TRIC REG LINEAR 5V 500MA SOT23-5 |
3,169 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 5V | - | 0.6V @ 500mA | 500mA | 3 µA | 25 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
