Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

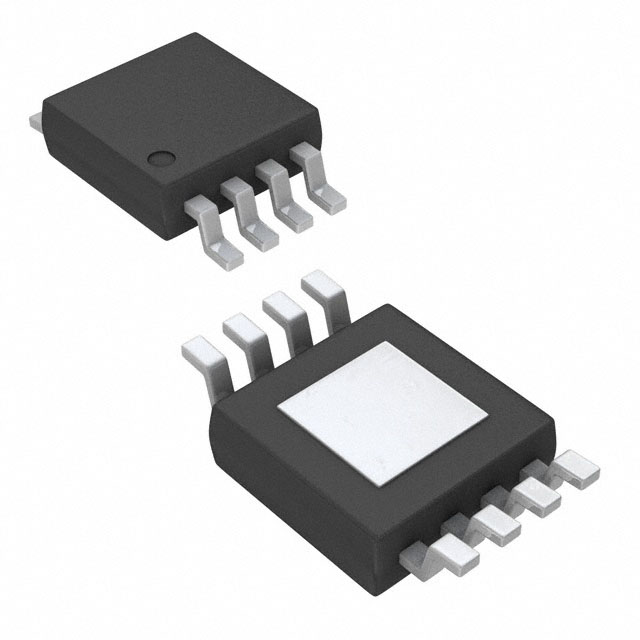

AP7583AQ-50MP-13LDO CMOS LOWCURR MSOP-8EP T&R 2. |
9,675 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | 5V | 0.5V @ 300mA | 300mA | 6 µA | - | 70dB (100Hz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-MSOP-EP |
|
NCV5500DT33RKGIC REG LINEAR 3.3V 500MA DPAK-5 |
3,640 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.7V @ 500mA | 500mA | 500 µA | 20 mA | 75dB ~ 70dB (120hZ ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
NCP5501DT50RKGIC REG LINEAR 5V 500MA DPAK |
2,256 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.7V @ 500mA | 500mA | 500 µA | 20 mA | 75dB ~ 70dB (120hZ ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | DPAK |
|
MC7915ACD2TGIC REG LINEAR -15V 1A D2PAK |
1,512 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | Negative | Fixed | 1 | -35V | -15V | - | 1.3V @ 1A (Typ) | 1A | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
LD1086V33-DGIC REG LINEAR 3.3V 1.5A TO220AB |
848 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 30V | 3.3V | - | 1.5V @ 1.5A | 1.5A | 10 mA | - | 79dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
LD1086BV-DGIC REG LINEAR POS ADJ 1.5A TO220 |
842 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Adjustable | 1 | 30V | 1.25V | 28.5V | 1.5V @ 1.5A | 1.5A | 10 mA | - | 88dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
LM320T-15/NOPBIC REG LINEAR -15V 1.5A TO220-3 |
369 |
|
Datasheet | - | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -15V | - | - | 1.5A | 2 mA | - | 64dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
TLE4253EXUMA2IC REG LIN POS ADJ 250MA 8DSO |
13,678 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | Tracking | - | 0.6V @ 200mA | 250mA | 150 µA | 15 mA | 60dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-27 |
__2.jpg "L4941BDT-TR")
|
L4941BDT-TRIC REG LINEAR 5V 1A DPAK |
5,015 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.7V @ 1A | 1A | 8 mA | 40 mA | 68dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | DPAK |
|
|
MC7812BD2TR4GIC REG LINEAR 12V 1A D2PAK |
3,033 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 60dB (1kHz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
|
MC33269DT-3.3GIC REG LINEAR 3.3V 800MA DPAK |
1,367 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 1.35V @ 800mA | 800mA | 8 mA | - | 55dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
LD29150PTRIC REG LINEAR POS ADJ 1.5A PPAK |
66,814 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 14V | 1.23V | 13.3V | 0.7V @ 1.5A | 1.5A | 180 µA | 80 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | PPAK |
|
NCP730BMT1500TBGIC REG LINEAR 15V 150MA 6WDFN |
10,926 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 38V | 15V | - | 0.48V @ 150mA | 150mA | 3 µA | 450 µA | 80dB ~ 48dB (10Hz ~ 1MHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
TPS7B8450QDCYRQ1IC REG LINEAR 5V 150MA SOT223-4 |
9,500 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.255V @ 150mA | 150mA | 25 µA | 35 µA | 70dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-223-4 |
|
MP2002AGD-ZIC REG LDO 500MA 8QFN |
4,827 |
|
Datasheet | - | 8-TFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.5V | 5V | 0.29V @ 500mA (Typ) | 500mA | - | - | - | Enable, Power Good | Over Current, Over Temperature | 125°C (TJ) | - | - | Surface Mount | 8-QFN (2x3) |
|
NJW4105DL5-05A-TE1HIGH VOLTAGE IO=500MA LDO REGULA |
1,891 |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.7V @ 500mA | 500mA | 105 µA | - | 53dB (1kHz) | Enable | Over Current, Over Temperature, UVLO | -40°C ~ 125°C | - | - | Surface Mount | TO-252-5 |
|
MIC5219-3.3YMM-TRIC REG LINEAR 3.3V 500MA 8MSOP |
19,719 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 3.3V | - | 0.6V @ 500mA | 500mA | 8 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
NCP730ASN300T1GIC REG LINEAR 3V 150MA 5TSOP |
8,758 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 38V | 3V | - | 0.48V @ 150mA | 150mA | 2.5 µA | 450 µA | 80dB ~ 48dB (10Hz ~ 1MHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 5-TSOP |
|
TPS74701QDRCRQ1IC REG LIN POS ADJ 500MA 10VSON |
8,182 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 1.39V @ 500mA | 500mA | - | - | 60dB ~ 30dB (1kHz ~ 300kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 10-VSON (3x3) |
|
|
MIC5219-5.0YMM-TRIC REG LINEAR 5V 500MA 8MSOP |
5,291 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 5V | - | 0.6V @ 500mA | 500mA | 8 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
