Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP718AMTADJTBGIC REG LIN POS ADJ 300MA 6WDFN |
8,503 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 24V | 1.2V | 5V | 0.49V @ 300mA | 300mA | 8 µA | 300 µA | 60dB (1kHz) | Soft Start | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
BD33GC0WEFJ-E2IC REG LINEAR 3.3V 1A 8HTSOP |
6,926 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 3.3V | - | 0.92V @ 1A | 1A | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|

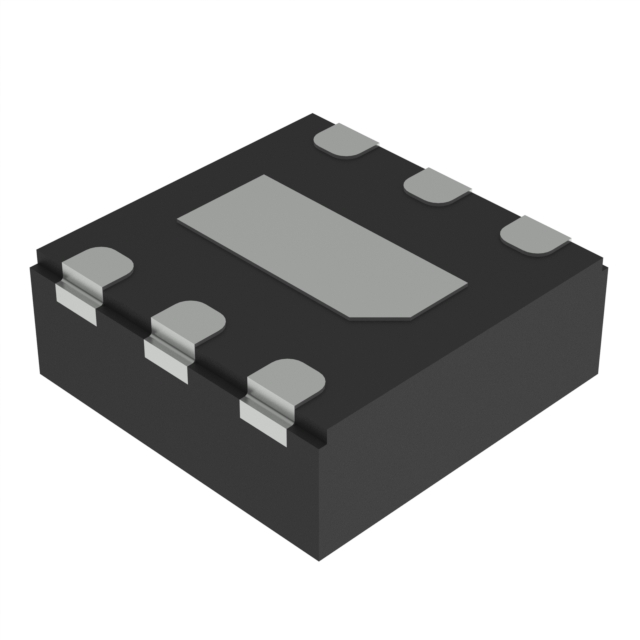

AP7583Q-50FDZW-7LDO CMOS LOWCURR W-DFN2020-6 T&R |
1,688 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 300mA | 300mA | 4 µA | - | 70dB (100Hz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
|
MC33269D-3.3GIC REG LINEAR 3.3V 800MA 8SOIC |
950 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 1.35V @ 800mA | 800mA | 8 mA | - | 55dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
MC7805ACD2TGIC REG LINEAR 5V 1A D2PAK |
668 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 83dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
NCP715SQ33T2GIC REG LINEAR 3.3V 50MA SC88A |
28,045 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 3.3V | - | 0.35V @ 50mA | 50mA | 4.2 µA | 5.8 µA | 60dB (100kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NCV5500DADJR2GIC REG LIN POS ADJ 500MA 8SOIC |
6,445 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 16V | 1.25V | 5V | 0.7V @ 500mA | 500mA | 500 µA | 20 mA | 75dB ~ 70dB (120hZ ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
NCP715SQ50T2GIC REG LINEAR 5V 50MA SC88A |
4,821 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 5V | - | 0.35V @ 50mA | 50mA | 4.2 µA | 5.8 µA | 56dB (100kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
LM317TGIC REG LINEAR POS ADJ 1.5A TO220 |
1,846 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
NCP164CSNADJT1GIC REG LIN POS ADJ 300MA 5TSOP |
10,753 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5V | 1.1V | 5V | - | 300mA | 40 µA | - | 83dB ~ 61dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
|
NCP716BCSN330T1GLDO 150MA |
6,183 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 3.3V | - | 1.08V @ 150mA | 150mA | 4.7 µA | - | 54dB (1kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | 150°C (TJ) | - | - | Surface Mount | 5-TSOP |
|
TPS7A7200RGTRIC REG LIN POS ADJ 2A 16VQFN |
5,326 |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 6.5V | 0.9V | 5V | 0.47V @ 2A | 2A | 4 mA | - | - | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 16-VQFN (3x3) |
|
|
NCP716BCSN500T1GLDO 150MA |
3,697 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 5V | - | 0.955V @ 150mA | 150mA | 4.7 µA | - | 53dB (1kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | 150°C (TJ) | - | - | Surface Mount | 5-TSOP |
|
|
NCV317BD2TR4GIC REG LIN POS ADJ 1.5A D2PAK-3 |
1,417 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-3 |
|
|
MC7824ACTGIC REG LINEAR 24V 1A TO220AB |
921 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 40V | 24V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 61dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
TLE4274DV33ATMA2IC REG LIN 3.3V 400MA TO252-3-11 |
549 |
|
Datasheet | OPTIREG™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 1.2V @ 300mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3-11 |
|
|
MC7906CTGIC REG LINEAR -6V 1A TO220AB |
434 |
|
Datasheet | - | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -6V | - | 1.3V @ 1A (Typ) | 1A | - | - | 65dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
TPS78501QWDRBRQ1IC REG LINEAR POS ADJ 1A 8SON |
26,470 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.2V | 5.5V | - | 1A | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
|
TPS78550QWDRBRQ1AUTOMOTIVE, 1-A, HIGH-ACCURACY, |
12,297 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.315V @ 1A | 1A | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
LM1117IDTX-5.0/NOPBIC REG LINEAR 5V 800MA TO252-3 |
10,285 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 5V | - | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
