Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV1117DT12RKGIC REG LINEAR 12V 1A DPAK |
2,602 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 12V | - | 1.2V @ 800mA | 1A | 10 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
MC7915BTGIC REG LINEAR -15V 1A TO220AB |
1,488 |
|
Datasheet | - | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -15V | - | 1.3V @ 1A (Typ) | 1A | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
TPS71733DCKTIC REG LINEAR 3.3V 150MA SC70-5 |
1,287 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
|
TPS71725DCKTIC REG LINEAR 2.5V 150MA SC70-5 |
1,272 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 2.5V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
MCP1826T-ADJE/ETIC REG LINEAR POS ADJ 1A 5DDPAK |
1,199 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 0.8V | 5V | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
MC7818CD2TR4GIC REG LINEAR 18V 1A D2PAK |
1,179 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 18V | - | 2V @ 1A (Typ) | 1A | 6.5 mA | - | 57dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
|
MC7912BTGIC REG LINEAR -12V 1A TO220AB |
1,127 |
|
Datasheet | - | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -12V | - | 1.3V @ 1A (Typ) | 1A | - | - | 61dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
TPS71733DRVTIC REG LINEAR 3.3V 150MA 6WSON |
776 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
|
MC7918CTGIC REG LINEAR -18V 1A TO220AB |
551 |
|
Datasheet | - | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -18V | - | 1.3V @ 1A (Typ) | 1A | - | - | 59dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
MCP1826-ADJE/ATIC REG LINEAR POS ADJ 1A TO220-5 |
511 |
|
Datasheet | - | TO-220-5 | Tube | Active | Positive | Adjustable | 1 | 6V | 0.8V | 5V | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | Enable, Power Good | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
MCP1826S-5002E/ABIC REG LINEAR 5V 1A TO220-3 |
327 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
MCP1826S-1202E/ABIC REG LINEAR 1.2V 1A TO220-3 |
298 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
MCP1826S-3302E/ABIC REG LINEAR 3.3V 1A TO220-3 |
293 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
MCP1826S-3002E/ABIC REG LINEAR 3V 1A TO220-3 |
159 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
MCP1826S-1802E/ABIC REG LINEAR 1.8V 1A TO220-3 |
137 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
TPS73718DCQRIC REG LINEAR 1.8V 1A SOT223-6 |
3,935 |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.5V @ 1A | 1A | 400 µA | 1.3 mA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|

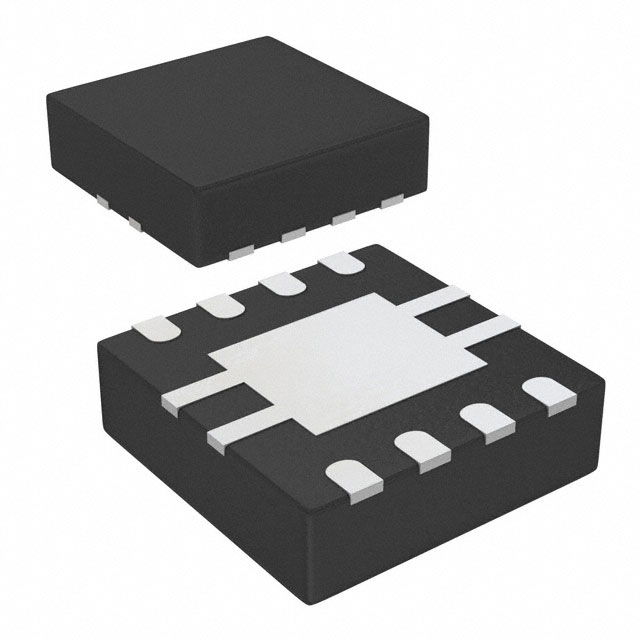

RT2519GQV(2)IC REG LINEAR POS ADJ 1A 8VDFN |
1,094 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 0.8V | 5.5V | 0.5V @ 1A | 1A | - | 350 µA | 63dB ~ 38dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-VDFN (3x3) |
|
LP38691SD-2.5/NOPBIC REG LINEAR 2.5V 500MA 6WSON |
661 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 2.5V | - | 0.73V @ 500mA | 500mA | 55 µA | 100 µA | 55dB (120Hz) | - | Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-WSON (3x3) |
|
|
LM317MBDTGIC REG LINEAR POS ADJ 500MA DPAK |
603 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 500mA | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | DPAK |
|
TLF80511EJV33XUMA1IC REG LIN 3.3V 400MA 8DSO E-PAD |
9,899 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.65V @ 250mA | 400mA | 46 µA | 80 µA | 55dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
