Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC78M15ABDTRKGIC REG LINEAR 15V 500MA DPAK |
2,753 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 15V | - | - | 500mA | - | - | 70dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
TPS72118DBVRIC REG LINEAR 1.8V 150MA SOT23-5 |
2,447 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.24V @ 150mA | 150mA | 120 µA | 850 µA | 48dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
LM317MABDTGIC REG LINEAR POS ADJ 500MA DPAK |
1,806 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 500mA | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | DPAK |
|
TPS7A0218DBVR200-MA, NANOPOWER-IQ (25 NA), LO |
1,559 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.56V @ 200mA | 200mA | 60 nA | - | 55dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TPS7A0220PDBVRIC REG LINEAR 2V 200MA SOT23-5 |
979 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2V | - | 0.45V @ 200mA | 200mA | 60 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
TPS7A0233PDQNRIC REG LINEAR 3.3V 200MA 4X2SON |
567 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.31V @ 200mA | 200mA | 60 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
__2.jpg "KF50BDT-TR")
|
KF50BDT-TRIC REG LINEAR 5V 500MA DPAK |
32,084 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 5V | - | 0.7V @ 500mA | 500mA | 1 mA | 12 mA | 76dB ~ 60dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
L4931ABD33-TRIC REG LINEAR 3.3V 250MA 8SO |
12,757 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 0.8V @ 250mA | 250mA | 1 mA | 6 mA | 73dB ~ 55dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
L4931CD50-TRIC REG LINEAR 5V 250MA 8SO |
4,680 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 5V | - | 0.8V @ 250mA | 250mA | 1 mA | 6 mA | 70dB ~ 55dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
TPS73230DBVRIC REG LINEAR 3V 250MA SOT23-5 |
4,334 |
|
Datasheet | TPS732xx | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.15V @ 250mA | 250mA | 550 µA | 950 µA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
MC7915CD2TR4GIC REG LINEAR -15V 1A D2PAK |
2,354 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -35V | -15V | - | 1.3V @ 1A (Typ) | 1A | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
LM2930T-5.0/NOPBIC REG LINEAR 5V 150MA TO220-3 |
292 |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 150mA | 150mA | 7 mA | 40 mA | 56dB (120Hz) | - | Load Dump, Mirror-Image Insertion, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-220-3 |
|
|
NCV1117DT15RKGIC REG LINEAR 1.5V 1A DPAK |
14,068 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 1.2V @ 800mA | 1A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | DPAK |
|
BD50GA5WEFJ-E2IC REG LINEAR 5V 500MA 8HTSOP |
9,590 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 5V | - | 0.9V @ 500mA | 500mA | - | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|

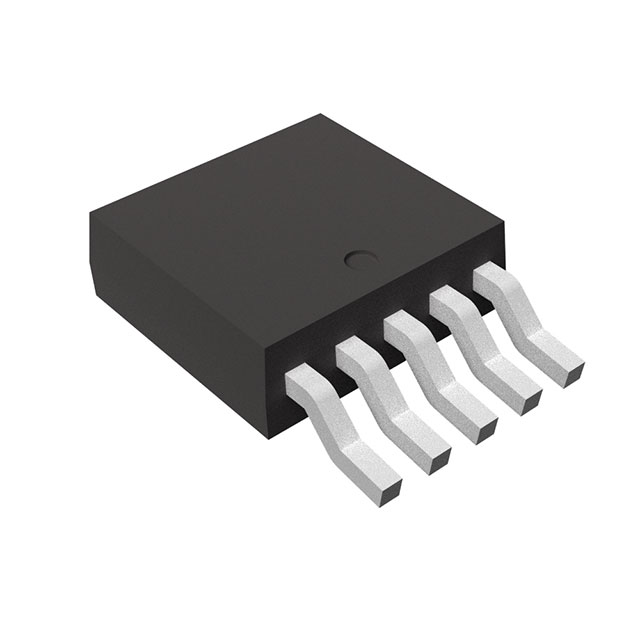

RP108J331D-T1-FEIC REG LINEAR 3.3V 3A TO252-5-P2 |
8,873 |
|
Datasheet | RP108J | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.56V @ 3A | 3A | 500 µA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | TO-252-5-P2 |
|
NCV551SN33T1GIC REG LINEAR 3.3V 150MA 5TSOP |
4,407 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 3.3V | - | 0.15V @ 10mA | 150mA | 8 µA | 8 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|

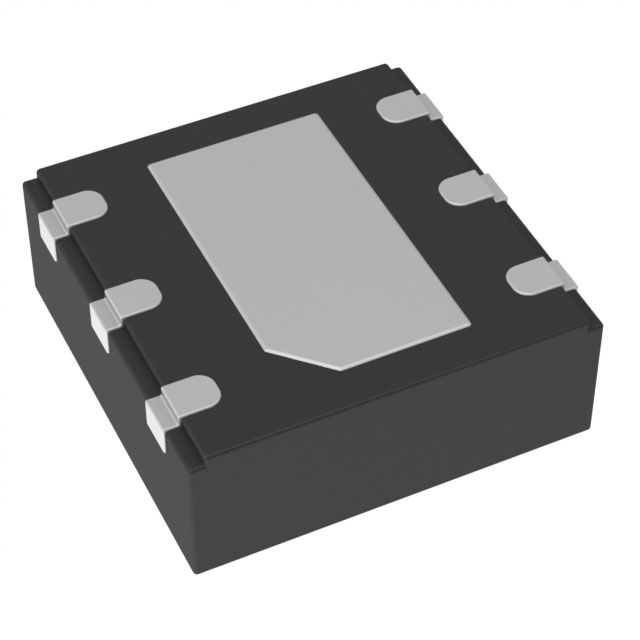

NCV8189CMTWADJTAGLDO, 0.5A, LOW NOISE, FIXED AND |
3,671 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.6V | 5V | 0.21V @ 500mA | 500mA | 55 µA | - | 85dB ~ 40dB (1kHz ~ 1MHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
|
TPS71701DCKTIC REG LIN POS ADJ 150MA SC70-5 |
3,522 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.9V | 6.2V | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
MCP1826ST-3302E/EBIC REG LINEAR 3.3V 1A 3DDPAK |
3,373 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.4V @ 1A | 1A | 220 µA | - | 60dB (100Hz) | - | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-3 |
|
|
LP2992IM5-1.8/NOPBIC REG LINEAR 1.8V 250MA SOT23-5 |
3,193 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 1.8V | - | 0.85V @ 250mA | 250mA | 95 µA | 4 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
