Analog Switches, Multiplexers, Demultiplexers
Review Analog Switches, Multiplexers, Demultiplexers Interface components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS5A23167YZPRIC SW SPST-NCX2 900MOHM 8DSBGA |
2,333 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 900mOhm | 40mOhm | 1.65V ~ 5.5V | - | 7.5ns, 11ns | 150MHz | 6pC | 19pF, 18pF | 20nA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DSBGA |
|
TS5A22364DRCRIC SWITCH SPDTX2 740MOHM 10VSON |
8,242 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 740mOhm | 40mOhm | 2.3V ~ 5.5V | - | 80ns, 70ns | 18.3MHz | 10pC | 70pF | 50nA | -78dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSON (3x3) |
|
MAX4594DBVRIC SWITCH SPST-NOX1 10OHM SOT23 |
6,748 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 10Ohm | - | 2.4V ~ 5.5V | - | 35ns, 40ns | 300MHz | 2pC | 8pF, 8pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|

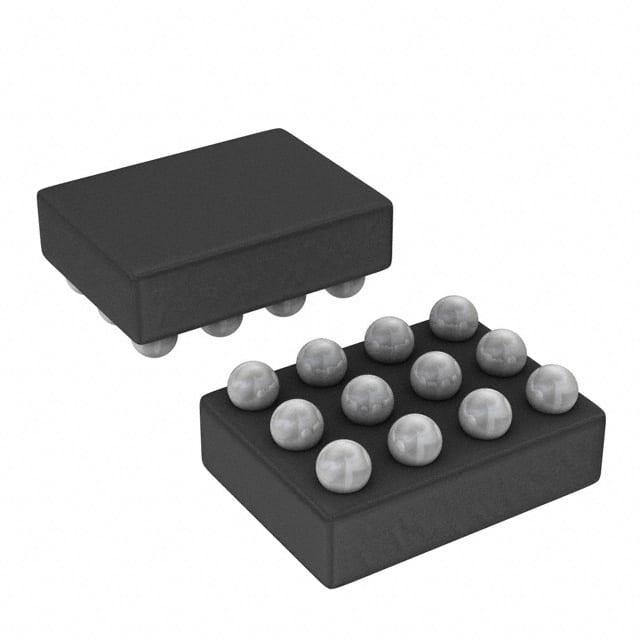

TS5A22366YFCRIC SWITCH SPDT X 2 1OHM 12DSBGA |
3,145 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 1Ohm | 100mOhm | 2.25V ~ 5.5V | - | 374ns, 325ns | 32MHz | 168pC | 48pF | 50nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DSBGA (1.57x1.17) |
|
TS3A5017QRGYRQ1IC SWITCH SP4T X 2 11OHM 16VQFN |
10,891 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 11Ohm (Typ) | 1Ohm | 2.3V ~ 3.6V | - | 9.5ns, 3.5ns | 165MHz | 5pC | 4.5pF, 19pF | 50nA (Typ) | -69dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-VQFN (4x3.5) |
|
LMS4684LD/NOPBIC SWITCH SPDTX2 800MOHM 10WSON |
3,270 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 800mOhm | 1.11mOhm | 1.8V ~ 5.5V | - | 60ns, 40ns | - | 200pC | - | 1nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-WSON (3x4) |
|
TS5A22364QDGSRQ1IC SWITCH SPDTX2 740MOHM 10VSSOP |
6,484 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 740mOhm | 40mOhm | 2.3V ~ 5.5V | - | 80ns, 70ns | 18.3MHz | 500pC | - | - | -78dB @ 100kHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 10-VSSOP |
|
TS12A4514DIC SWITCH SPST-NOX1 10OHM 8SOIC |
2,260 |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 1 | 10Ohm | - | 2.7V ~ 12V | - | 75ns, 45ns | 520MHz | -11.5pC | 7.5pF, 7.5pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LMS4684ITL/NOPBIC SWITCH SPDTX2 800MOHM 12USMD |
717 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 800mOhm | 1.11mOhm | 1.8V ~ 5.5V | - | 60ns, 40ns | - | 200pC | - | 1nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-uSMD (1.59x2.33) |
|
TS5N412PWIC SWITCH SPDTX4 12.5OHM 16TSSOP |
939 |
|
Datasheet | - | Bulk | Active | SPDT | 2:1 | 4 | 12.5Ohm | - | 4.75V ~ 5.25V | - | 200ns, 200ns | 25MHz (Min) | - | - | - | -50dB @ 25MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
Frequently Asked Questions
What are Analog Switches, Multiplexers, Demultiplexers components used for?
Analog Switches, Multiplexers, Demultiplexers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches, Multiplexers, Demultiplexers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
