Analog Switches, Multiplexers, Demultiplexers
Review Analog Switches, Multiplexers, Demultiplexers Interface components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MUX36S08IRUMRIC MUX 8:1 170OHM 16WQFN |
1,641 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 7.5pF | 40pA | -96dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 16-WQFN (4x4) |
|
MUX507IPWRIC MUX DUAL 8:1 200OHM 28TSSOP |
8,576 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 2 | 200Ohm | 6Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 78ns | - | 0.31pC | 2.1pF, 6.4pF | 1nA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 28-TSSOP |
|
MUX506IDWRIC MUX 16:1 200OHM 28SOIC |
860 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 16:1 | 1 | 200Ohm | 6Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 78ns | - | 0.67pC | 3pF, 12.2pF | 1nA | -96dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 28-SOIC |
|

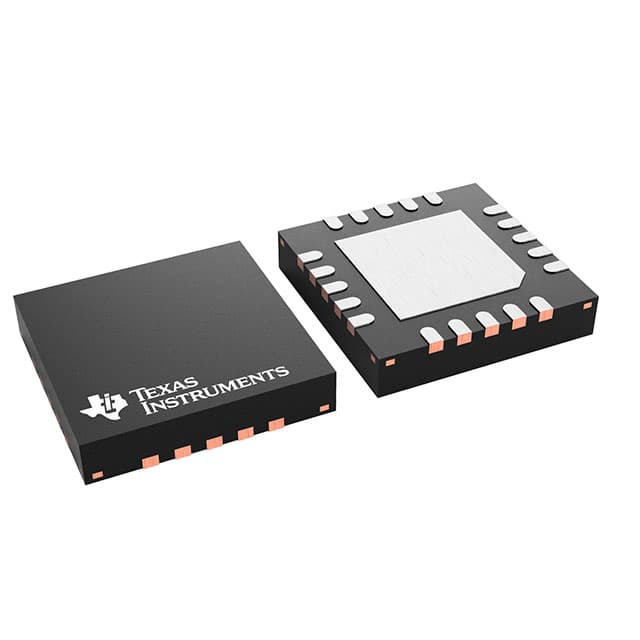

TMUX6234RRQRIC SW SPST-NO/NCX4 6.2OHM 20WQFN |
4,875 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 6.2Ohm | 200mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 95ns, 85ns | 95MHz | 3pC | 17pF, 28pF | 400pA | -105dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-WQFN (4x4) |
|
|
TMUX8211PWRIC SWITCH SPST-NCX4 7OHM 16TSSOP |
2,400 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 7Ohm | 200mOhm (Typ) | 10V ~ 100V | - | 4µs, 100ns (Typ) | 420MHz | -1300pC | 12pF, 12pF | 10pA (Typ) | -110dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
TMUX6234PWRIC SW SPDT-NO/NC 6.2OHM 20TSSOP |
1,725 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 4 | 6.2Ohm | 200mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 180ns, 150ns | 95MHz | 3pC | 17pF, 28pF | 400pA | -105dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-TSSOP |
|
TMUX7219MDGKRIC SWITCH SPDT X 1 2.8OHM 8VSSOP |
1,728 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 2.8Ohm | 100mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 168ns, 180ns | 40MHz | -16pC | 34pF, 48pF | 5nA | -106dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
MUX36D04IPWIC MUX DUAL 4:1 170OHM 16TSSOP |
134 |
|
Datasheet | - | Tube | Active | - | 4:1 | 2 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 4.3pF | 400pA | -96dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TMUX8109PWRIC SWITCH SP4T X 2 48OHM 16TSSOP |
3,452 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 48Ohm | 650mOhm | 10V ~ 100V | ±10V ~ 50V | 3µs, 650ns (Typ) | 380MHz | -150pC | 3pF, 10pF | 20pA (Typ) | -110dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
|
TMUX7436FPWRIC SW SPDT-NO/NCX2 11OHM 16TSSOP |
255 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 2 | 11Ohm | 60mOhm (Typ) | 8V ~ 44V | - | 520ns, 210ns | 215MHz | -300pC | 14pF, 28pF | 700pA | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
Frequently Asked Questions
What are Analog Switches, Multiplexers, Demultiplexers components used for?
Analog Switches, Multiplexers, Demultiplexers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches, Multiplexers, Demultiplexers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
