| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF400R17KE4EHOSA1IGBT MODULE 1700V 400A |
2,950 |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 400 A | - | 2.3V @ 15V, 400A | 1 mA | 36 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FF400R12KT3HOSA1IGBT MOD 1200V 580A 2000W |
2,722 |
|
Datasheet | C | Module | Tray | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | 580 A | 2000 W | 2.15V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FS3L200R10W3S7FB94BPSA1LOW POWER EASY AG-EASY3B-7011 |
2,759 |
|
Datasheet | EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 950 V | 70 A | - | 1.53V @ 15V, 30A | 31 µA | 6.48 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY3B |
|
MSCGLQ50H120CTBL2NGPM-IGBT-SBD-BL2 |
3,630 |
|
Datasheet | - | Module | Bulk | Active | - | Full Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ50DDU120CTBL2NGPM-IGBT-SBD-BL2 |
7,874 |
|
Datasheet | - | Module | Bulk | Active | - | Full Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
FF500R17KE4BOSA1IGBT MODULE 1700V 500A |
2,481 |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 500 A | - | 2.3V @ 15V, 500A | 1 mA | 45 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
F3L400R10W3S7FB11BPSA1IGBT MODULE LOW POWER EASY |
2,784 |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 950 V | 220 A | - | 2V @ 15V, 150A | 71 µA | 49.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY3B |
|
|
NXH400N100H4Q2F2SGMASS MARKET 250KW 1500V Q2 PACK |
4,479 |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 1000 V | 409 A | 959 W | 2.3V @ 15V, 400A | 500 µA | 26.093 nF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 42-PIM/Q2PACK (93x47) |
|
|
FF600R12ME4WB73BPSA1MEDIUM POWER ECONO |
1 |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
FF600R17ME4BOSA1IGBT MODULE VCES 1700V 600A |
4,041 |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | - | - | 2.3V @ 15V, 600A | 1 mA | 48 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

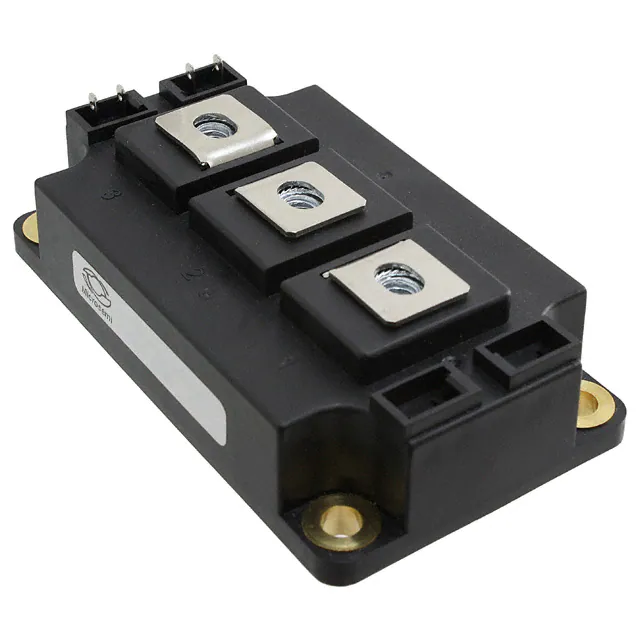

APTGT400A60D3GIGBT MODULE 600V 500A 1250W D3 |
1 |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 500 A | 1250 W | 1.9V @ 15V, 400A | 500 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
FS300R12OE4BOSA1IGBT MOD 1200V 460A 1650W |
4,771 |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 460 A | 1650 W | 2.1V @ 15V, 300A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FF1500R12IE5BPSA1IGBT MOD 1200V 1500A 20MW |
9,730 |
|
Datasheet | PrimePACK™3+ B | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 1500 A | - | 2.15V @ 15V, 1500A | 5 mA | 82 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FF1200R12IE5PBPSA1IGBT MOD 1200V 2400A 20MW |
8,340 |
|
Datasheet | PrimePACK™2 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 2400 A | - | 2.15V @ 15V, 1200A | 5 mA | 65.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | Module |
|
|
FF1800R12IE5PBPSA1IGBT MOD 1200V 1800A 20MW |
2,508 |
|
Datasheet | PrimePACK™3+ | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 1800 A | - | 2.15V @ 15V, 1800A | 5 mA | 98.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FF2400RB12IP7PBPSA1PP IHM I XHP 1 7KV AG-PRIME3+-71 |
1 |
|
Datasheet | PrimePACK™3 | - | Tray | Active | - | 2 Independent | 750 V | 2400 A | - | - | - | - | Standard | No | - | - | - |
|
FZ825R33HE4DBPSA1HV B SINGLE SWITCH POWER MODULES |
9,522 |
|
Datasheet | IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 3300 V | 825 A | 2400000 W | 2.65V @ 15V, 825A | 5 mA | 93.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB130-3 |
|
FZ2400R17HP4B29BOSA2IGBT MODULE 1700V 4800A |
1 |
|
Datasheet | IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 1700 V | 4800 A | 15500 W | 2.25V @ 15V, 2400A | 5 mA | 195 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FZ750R65KE3NOSA1IGBT MOD 6500V 750A A-IHV190-6 |
1 |
|
Datasheet | - | Module | Tray | Active | - | Single | 6500 V | 750 A | 14500 W | 3.4V @ 15V, 750A | 5 mA | 205 nF @ 25 V | Standard | No | -50°C ~ 125°C | Chassis Mount | Module |
|
P2000DL45X168HPSA1PRESS PACK IGBT |
1 |
|
Datasheet | - | TO-200AF | Tray | Active | Trench | Single | 4500 V | 2000 A | - | 2.5V @ 15V, 2000A | 200 µA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | BG-P16826K-1 |
