IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF1500R12IE5BPSA1IGBT MOD 1200V 1500A 20MW |
9,730 |
|
Datasheet | PrimePACK™3+ B | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 1500 A | - | 2.15V @ 15V, 1500A | 5 mA | 82 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FF1200R12IE5PBPSA1IGBT MOD 1200V 2400A 20MW |
8,340 |
|
Datasheet | PrimePACK™2 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 2400 A | - | 2.15V @ 15V, 1200A | 5 mA | 65.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | Module |
|
|
FF1800R12IE5PBPSA1IGBT MOD 1200V 1800A 20MW |
2,508 |
|
Datasheet | PrimePACK™3+ | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 1800 A | - | 2.15V @ 15V, 1800A | 5 mA | 98.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FF2400RB12IP7PBPSA1PP IHM I XHP 1 7KV AG-PRIME3+-71 |
1 |
|
Datasheet | PrimePACK™3 | - | Tray | Active | - | 2 Independent | 750 V | 2400 A | - | - | - | - | Standard | No | - | - | - |
|

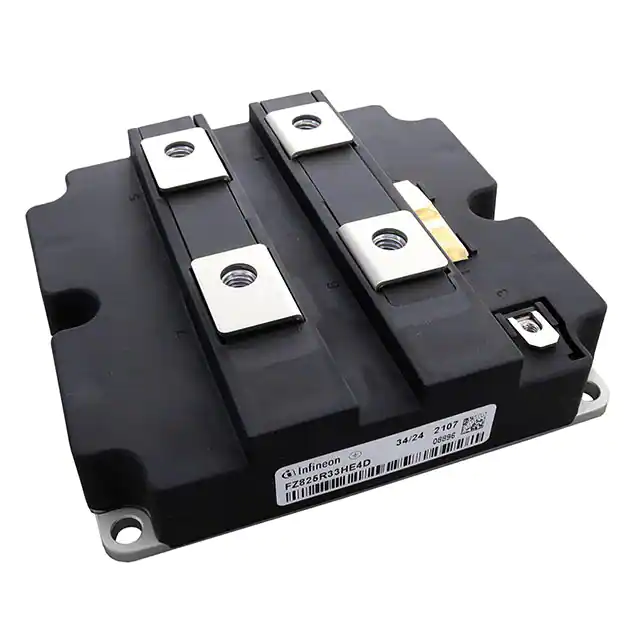

FZ825R33HE4DBPSA1HV B SINGLE SWITCH POWER MODULES |
9,522 |
|
Datasheet | IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 3300 V | 825 A | 2400000 W | 2.65V @ 15V, 825A | 5 mA | 93.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB130-3 |
|
FZ2400R17HP4B29BOSA2IGBT MODULE 1700V 4800A |
1 |
|
Datasheet | IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 1700 V | 4800 A | 15500 W | 2.25V @ 15V, 2400A | 5 mA | 195 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FZ750R65KE3NOSA1IGBT MOD 6500V 750A A-IHV190-6 |
1 |
|
Datasheet | - | Module | Tray | Active | - | Single | 6500 V | 750 A | 14500 W | 3.4V @ 15V, 750A | 5 mA | 205 nF @ 25 V | Standard | No | -50°C ~ 125°C | Chassis Mount | Module |
|
P2000DL45X168HPSA1PRESS PACK IGBT |
1 |
|
Datasheet | - | TO-200AF | Tray | Active | Trench | Single | 4500 V | 2000 A | - | 2.5V @ 15V, 2000A | 200 µA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | BG-P16826K-1 |
|
P3000ZL45X168HPSA1PRESS PACK IGBT |
1 |
|
Datasheet | - | TO-200AF | Tray | Active | Trench | Single | 4500 V | 3000 A | - | 2.5V @ 15V, 3000A | 200 µA | 620 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | BG-P16826K-1 |
|
FS50R06W1E3B11BOMA1IGBT MODULE 600V 70A 205W |
8,958 |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 70 A | 205 W | 1.9V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
