IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS50R12W1T7B11BOMA1IGBT MODULE LOW POWER EASY |
43 |
|
Datasheet | - | Module | Tray | Active | - | - | 1200 V | 50 A | - | - | 7.9 µA | 11.1 nF @ 25 V | - | No | -40°C ~ 175°C | Chassis Mount | Module |
|
FS50R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
9 |
|
Datasheet | EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | - | 7.9 µA | 11.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
FP50R06W2E3BOMA1IGBT MODULE 600V 65A 175W |
12 |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 65 A | 175 W | 1.9V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FP35R12W2T4BOMA1IGBT MOD 1200V 54A 215W |
5 |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 54 A | 215 W | 2.25V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP50R12W2T7B11BOMA1LOW POWER EASY |
15 |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 8 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B-2 |
|
|
FS75R12W2T4B11BOMA1IGBT MOD 1200V 107A 375W |
2 |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 107 A | 375 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP25R12KT3BPSA1LOW POWER ECONO |
9 |
|
Datasheet | EconoPIM™ 2 | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 40 A | 105 W | 2.15V @ 15V, 25A | 5 mA | 1.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2-8 |
|
FP75R12KT4B15BOSA1IGBT MOD 1200V 75A 385W |
7 |
|
Datasheet | EconoPIM™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 385 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

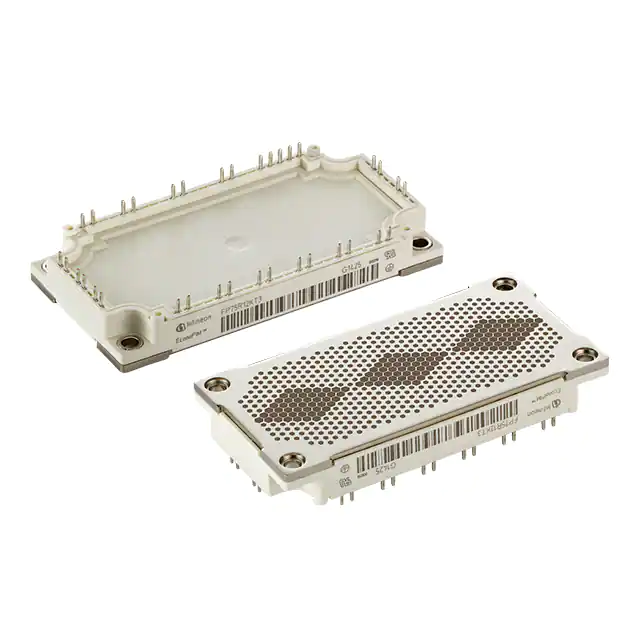

FP75R12KT3BOSA1IGBT MOD 1200V 105A 355W |
2 |
|
Datasheet | EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS75R12N2T7B15BPSA2LOW POWER ECONO |
12 |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 75 A | - | 1.8V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
