IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

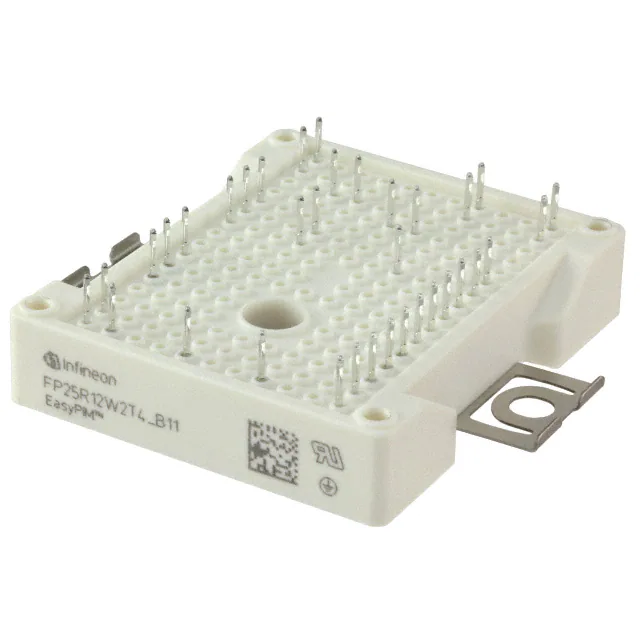

FP25R12W2T4B11BOMA1IGBT MOD 1200V 39A 175W |
18 |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 39 A | 175 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FP50R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
11 |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | - | 8 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
FP35R12KT4BPSA1LOW POWER ECONO |
16 |
|
Datasheet | EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 210 W | 2.25V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2-8 |
|
|
FP35R12KT4B11BPSA1LOW POWER ECONO AG-ECONO2B-711 |
4 |
|
Datasheet | EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 210 W | 2.15V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FP50R12KT4B11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
16 |
|
Datasheet | EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 280 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FP50R12KT4BPSA1LOW POWER ECONO AG-ECONO2B-411 |
11 |
|
Datasheet | EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 280 W | 2.25V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FP40R12KE3BPSA1LOW POWER ECONO AG-ECONO2C-311 |
2 |
|
Datasheet | SmartPIM1 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 55 A | 210 W | 2.15V @ 15V, 40A | 1 mA | 2.5 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2C |
|
|
FP75R12KT4B16BOSA1IGBT MOD 1200V 150A 385W |
9 |
|
Datasheet | EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | 385 W | 2.25V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP75R12KT4B11BOSA1IGBT MOD 1200V 75A 385W |
7 |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 385 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FF225R12ME4BOSA1IGBT MOD 1200V 320A 1050W |
21 |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 320 A | 1050 W | 2.15V @ 15V, 225A | 3 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
