IGBT Modules
Explore IGBT Modules parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT400A120GIGBT MODULE 1200V 560A 1785W SP6 |
4,855 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 560 A | 1785 W | 2.1V @ 15V, 400A | 750 µA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|

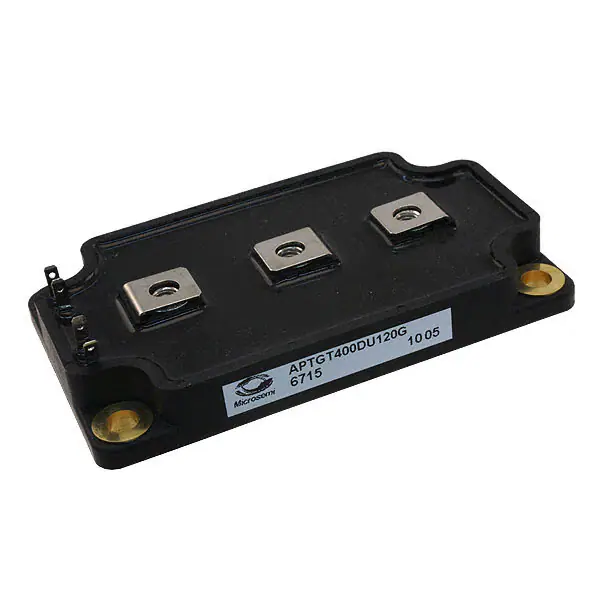

APTGT400DU120GIGBT MODULE 1200V 560A 1785W SP6 |
6,348 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 560 A | 1785 W | 2.1V @ 15V, 400A | 750 µA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT200H120GIGBT MODULE 1200V 280A 890W SP6 |
7,175 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 280 A | 890 W | 2.1V @ 15V, 200A | 350 µA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
DF900R12IP4DBOSA1IGBT MOD 1200V 900A 5100W |
6,834 |
|
Datasheet | PrimePACK™2 | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
APTGLQ200H120GIGBT MODULE 1200V 350A 1000W SP6 |
2,644 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Full Bridge | 1200 V | 350 A | 1000 W | 2.4V @ 15V, 200A | 100 µA | 12.3 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
APTGLQ400A120T6GIGBT MODULE 1200V 700A 1900W SP6 |
6,717 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 700 A | 1900 W | 2.4V @ 15V, 400A | 200 µA | 24.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP6 |
|
APTGL240TL120GIGBT MODULE 1200V 305A 1000W SP6 |
7,656 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Three Level Inverter | 1200 V | 305 A | 1000 W | 2.2V @ 15V, 200A | 2 mA | 12.3 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
CM800DY-24SIGBT MOD 1200V 790A 5355W |
8,129 |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 790 A | 5355 W | 2.4V @ 15V, 800A | 1 mA | 80 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FS225R12KE3BOSA1IGBT MOD 1200V 325A 1150W |
7,676 |
|
Datasheet | EconoPACK™+ | Module | Tray | Not For New Designs | Trench Field Stop | Full Bridge | 1200 V | 325 A | 1150 W | 2.15V @15V, 225A | 5 mA | 16 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FS200R07A5E3S6BPSA1IGBT MODULE HYBRID PACK LIGHT |
3,993 |
|
Datasheet | HybridPACK™ | Module | Tray | Obsolete | Trench | Full Bridge Inverter | 705 V | 200 A | 630 W | 1.7V @ 15V, 200A | 100 µA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
FS100R12KS4BOSA1IGBT MOD 1200V 130A 660W |
2,938 |
|
Datasheet | - | Module | Tray | Obsolete | - | Three Phase Inverter | 1200 V | 130 A | 660 W | 3.7V @ 15V, 100A | 5 mA | 6.8 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
APTGT400TL65GIGBT MODULE 650V SP6C |
8,713 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
QID1210006IGBT MODULE 1200V 100A 570W |
8,751 |
|
Datasheet | - | - | Bulk | Discontinued at Digi-Key | - | 2 Independent | 1200 V | 100 A | 570 W | 6.5V @ 15V, 100A | 1 mA | 16 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | - |
|
|
FF600R12IE4VBOSA1IGBT MOD 1200V 600A 3350W |
7,616 |
|
Datasheet | PrimePACK™2 | Module | Tray | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | 600 A | 3350 W | 2.05V @ 15V, 600A | 5 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
NVH950S75L4SPBAUTOMOTIVE 750V, 950A SSDC POWER |
9,829 |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 750 V | 950 A | 1300 W | 1.55V @ 15V, 600A | 500 µA | 60000 pF @ 30 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SSDC33 |
|
|
NVH950S75L4SPCAUTOMOTIVE 750V, 950A SSDC POWER |
8,295 |
|
Datasheet | - | Module | Bulk | Active | Field Stop | Three Phase Inverter | 750 V | 950 A | 1325 W | 1.55V @ 15V, 600A | 500 µA | 60000 pF @ 30 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SSDC33 |
|
APTGL475A120D3GIGBT MODULE 1200V 610A 2080W D3 |
9,991 |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 610 A | 2080 W | 2.2V @ 15V, 400A | 5 mA | 24.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
DF600R12IP4DVBOSA1IGBT MODULE VCES 1200V 600A |
7,071 |
|
Datasheet | PrimePACK™2 | - | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTGT400A120D3GIGBT MODULE 1200V 580A 2100W D3 |
3,381 |
|
Datasheet | - | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 580 A | 2100 W | 2.1V @ 15V, 400A | 750 µA | 29 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
APTGT300A170GIGBT MODULE 1700V 400A 1660W SP6 |
9,692 |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 400 A | 1660 W | 2.4V @ 15V, 300A | 750 µA | 26.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
