Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE90-333K-RC33MH 10% AXIAL EPOXY COATED |
1,714 |
|
Datasheet | AE90 | Axial | Bag | Active | Wirewound | - | 33 mH | ±10% | 67 mA | 85mA | Unshielded | 130Ohm Max | 50 @ 79.6kHz | 140kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
CHQ05-16NG-RC16NH 2% CERAMIC CORE HI. Q CHIP |
4,748 |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 16 nH | ±2% | 1.5 A | - | Unshielded | 60mOhm Max | 72 @ 500MHz | 2.95GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CHQ05-51NG-RC51NH 2% CERAMIC CORE HI. Q CHIP |
1,597 |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 51 nH | ±2% | 1 A | - | Unshielded | 120mOhm Max | 65 @ 500MHz | 1.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CHQ05-2N5J-RC2.5NH 5% CERAMIC CORE HI Q CHIP |
4,742 |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.5 nH | ±5% | 1.6 A | - | Unshielded | 20mOhm Max | 80 @ 1.5GHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CHQ05-48NG-RC48NH 2% CERAMIC CORE HI. Q CHIP |
1,920 |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 48 nH | ±2% | 1.2 A | - | Unshielded | 110mOhm Max | 65 @ 500MHz | 1.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CHQ05-30NG-RC30NH 2% CERAMIC CORE HI. Q CHIP |
2,376 |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 30 nH | ±2% | 1.2 A | - | Unshielded | 95mOhm Max | 65 @ 500MHz | 1.95GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
AS40-180K-RC18UH 10% AXIAL SHIELDED INDUCTOR |
1,120 |
|
Datasheet | AS40 | Axial | Tape & Reel (TR) | Active | - | - | 18 µH | ±10% | 300 mA | 235mA | Shielded | 890mOhm Max | 45 @ 2.5MHz | 45MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

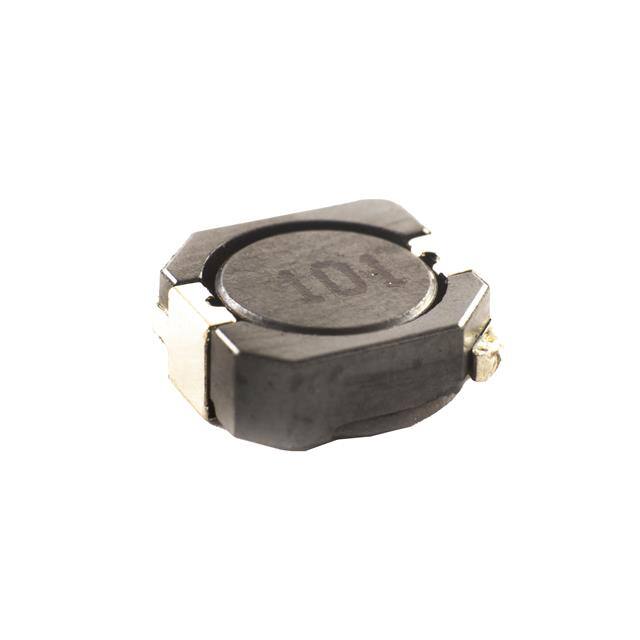

PCS104-221M-RC220UH 20% SMD POWER INDUCTOR |
1,471 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 920 mA | - | Shielded | 756mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
PCS104-680M-RC68UH 20% PWR CHIP SHIELDED IND. |
2,997 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.5 A | - | Shielded | 213mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PCHC40-2R2M-RC2.2UH 20% PWR CHIP HIGH CURRENT |
1,574 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 7.4 A | 7.8A | Unshielded | 11mOhm Max | - | 90MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.390" W (13.21mm x 9.91mm) | 0.250" (6.35mm) |
|
AS40-182K-RC1800UH 10% AXIAL SHIELDED IND. |
1,876 |
|
Datasheet | AS40 | Axial | Bag | Active | - | - | 1.8 mH | ±10% | 50 mA | 30mA | Shielded | 29.9Ohm Max | 45 @ 250kHz | 1MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
AS40-223K-RC22MH 10% AXIAL SHIELDED INDUCT. |
3,661 |
|
Datasheet | AS40 | Axial | Bag | Active | - | - | 22 mH | ±20% | 17 mA | 9mA | Shielded | 274Ohm Max | 27 @ 79kHz | 250kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
HFC03-3N9S-RC3.9NH 0.3NH 0402 HI-FREQ CHIP |
3,676 |
|
Datasheet | - | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | - | 3.9 nH | ±0.3nH | 400 mA | - | Unshielded | 180mOhm Max | 8 @ 100kHz | 6.1GHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
AS40-R22K-RC.22UH 10% AXIAL SHIELDED IND. |
2,397 |
|
Datasheet | AS40 | Axial | Bag | Active | - | - | 220 nH | ±10% | 1.1 A | 1.1A | Shielded | 67mOhm Max | 49 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
AS40-272J-RC2700UH 5% AXIAL SHIELDED IND. |
3,960 |
|
Datasheet | AS40 | Axial | Bag | Active | - | - | 2.7 mH | ±10% | 40 mA | 25mA | Shielded | 47.3Ohm Max | 45 @ 250kHz | 920kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
PCS2D14-100T-RC10UH 30% POWER CHIP INDUCTOR |
3,607 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 760 mA | 700mA | Shielded | 294mOhm Max | - | - | - | -35°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.061" (1.55mm) |
|
PCS3D16-100T-RC10UH 30% POWER CHIP INDUCTOR |
1,156 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 550 mA | - | Shielded | 210mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
HTC220LL-8R2M-RC8.2UH 30% HRZMNT TOROIDAL CHOKE |
1,959 |
|
Datasheet | - | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 8.2 µH | ±20% | 15.1 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
VTCB5825-300-40A30UH 15% @ 40A VERT.MNT. TOROID |
1,328 |
|
Datasheet | - | Radial, Vertical (Open) | Box | Active | Toroidal | - | 30 µH | ±15% | 40 A | - | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical (Open) | 2.283" L x 0.984" W (58.00mm x 25.00mm) | 2.559" (65.00mm) |
|
PCS5D28-8R2N-RC8.2UH 30% POWER CHIP SHIELDED |
3,765 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±30% | 1.6 A | - | Shielded | 53mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
