Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RB5480-1-102K-RC1000UH 10% RADIAL POWER CHOKE |
4,641 |
|
Datasheet | - | Radial, Vertical Cylinder | Bag | Active | - | - | 1 mH | ±10% | 60 mA | 92mA | Unshielded | 5.5Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.225" Dia (5.72mm) | 0.340" (8.64mm) |
|
RDC60-223K-RC22000UH 10% RADIAL DRUM CORE |
1,285 |
|
Datasheet | RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 22 mH | ±10% | 2 A | 1.8A | Unshielded | 2.74Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
RB5480-4-271K-RC270UH 10% RADIAL POWER CHOKE |
3,503 |
|
Datasheet | - | Radial, Vertical Cylinder | Bag | Active | - | - | 270 µH | ±10% | 1.3 A | 1.75A | Unshielded | 270mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.450" Dia (11.43mm) | 0.760" (19.30mm) |
|
RB5480-5-560K-RC56UH 10% RADIAL POWER CHOKE |
4,660 |
|
Datasheet | - | Radial, Vertical Cylinder | Bag | Active | - | - | 56 µH | ±10% | 4 A | 2.5A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 0.750" (19.05mm) |
|
|
RDC60-101K-RC100UH 10% RADIAL DRUM CORE |
3,790 |
|
Datasheet | RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 100 µH | ±10% | 27 A | 26.5A | Unshielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-121K-RC120UH 10% RADIAL DRUM CORE |
3,972 |
|
Datasheet | RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 120 µH | ±10% | 27 A | 24.5A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-391K-RC390UH 10% RADIAL DRUM CORE |
3,488 |
|
Datasheet | RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 390 µH | ±10% | 13.5 A | 13.6A | Unshielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-273K-RC27000UH 10% RADIAL DRUM CORE |
4,527 |
|
Datasheet | RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 27 mH | ±10% | 1.7 A | 1.6A | Unshielded | 3.71Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-331K-RC330UH 10% RADIAL DRUM CORE |
3,171 |
|
Datasheet | RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 330 µH | ±10% | 17 A | 14.8A | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RB5480-5-332K-RC3300UH 10% RADIAL POWER CHOKE |
1,272 |
|
Datasheet | - | Radial, Vertical Cylinder | Tray | Active | - | - | 3.3 mH | ±10% | 620 mA | 360mA | Unshielded | 1.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 0.750" (19.05mm) |
|

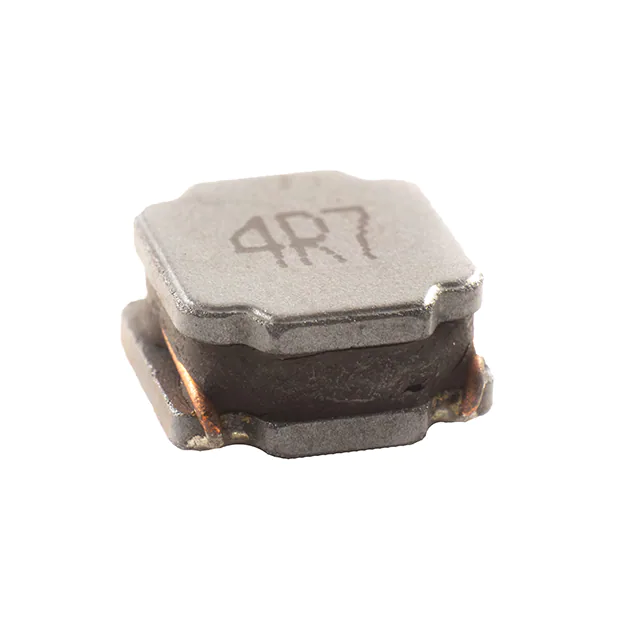

PCSV80-100M-RC10UH 20% PWR CHIP INDUCTOR |
3,851 |
|
Datasheet | - | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.8 A | 4.3A | Shielded | 38mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-330M-RC33UH 20% SHIELDED PWR INDUCTOR |
2,438 |
|
Datasheet | - | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 2 A | 2.3A | Shielded | 110mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-150M-RC15UH 20% SHIELDED PWR INDUCTOR |
3,639 |
|
Datasheet | - | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3.2 A | 3.6A | Shielded | 50mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-3R3M-RC3.3UH 20% SHIELDED PWR INDUCTOR |
1,881 |
|
Datasheet | - | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 6 A | 7.5A | Shielded | 15mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
PCSV54-100M-RC10UH 20% SMD PWR CHIP INDUCTOR |
1,486 |
|
Datasheet | - | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.2 A | 2.8A | Shielded | 60mOhm | - | - | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-2R0M-RC2.0UH 20% SHIELDED PWR INDUCTOR |
4,791 |
|
Datasheet | - | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2 µH | ±20% | 7.4 A | 9.6A | Shielded | 11mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV54-470M-RC47UH 20% SMD PWR CHIP INDUCTOR |
2,497 |
|
Datasheet | - | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 900 mA | 1.2A | Shielded | 310mOhm | - | - | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-121M-RC120UH 20% SHIELDED PWR INDUCTOR |
1,111 |
|
Datasheet | - | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 121 µH | ±20% | 1 A | 1.1A | Shielded | 425mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-6R8M-RC6.8UH 20% SHIELDED PWR INDUCTOR |
1,063 |
|
Datasheet | - | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 5.1 A | 5.4A | Shielded | 25mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PCSV80-4R7M-RC4.7UH 20% SHIELDED PWR INDUCTOR |
4,985 |
|
Datasheet | - | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 5.5 A | 6A | Shielded | 18mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
