Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3HCR-27FIXED IND 27UH 3A 35 MOHM TH |
1,510 |
|
Datasheet | HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 3 A | 15A | Unshielded | 35mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 0.875" L (20.62mm x 22.23mm) | - |
|
|
3HCR-5FIXED IND 5UH 3A 15 MOHM TH |
2,284 |
|
Datasheet | HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 3 A | 19A | Unshielded | 15mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.625" Dia x 0.875" L (15.88mm x 22.23mm) | - |
|
|
3HCR-50FIXED IND 50UH 3A 50 MOHM TH |
1,889 |
|
Datasheet | HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 3 A | 12A | Unshielded | 50mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 1.125" L (20.62mm x 28.58mm) | - |
|
|
3HCR-500FIXED IND 500UH 3A 130 MOHM TH |
1,596 |
|
Datasheet | HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 3 A | 1A | Unshielded | 130mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.950" Dia x 1.625" L (24.13mm x 41.28mm) | - |
|
5HC-10FIXED IND 10UH 5A 15 MOHM TH |
1,310 |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 5 A | 18A | Unshielded | 15mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.640" Dia x 1.125" L (16.26mm x 28.58mm) | - |
|
5HC-100FIXED IND 100UH 5A 50 MOHM TH |
4,764 |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 5 A | 7A | Unshielded | 50mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.875" Dia x 1.375" L (22.23mm x 34.93mm) | - |
|
5HC-150FIXED IND 150UH 5A 60 MOHM TH |
2,890 |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 5 A | 5A | Unshielded | 60mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.875" Dia x 1.625" L (22.23mm x 41.28mm) | - |
|
5HC-250FIXED IND 250UH 5A 75 MOHM TH |
3,159 |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±10% | 5 A | 3A | Unshielded | 75mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.100" Dia x 1.625" L (27.94mm x 41.28mm) | - |
|

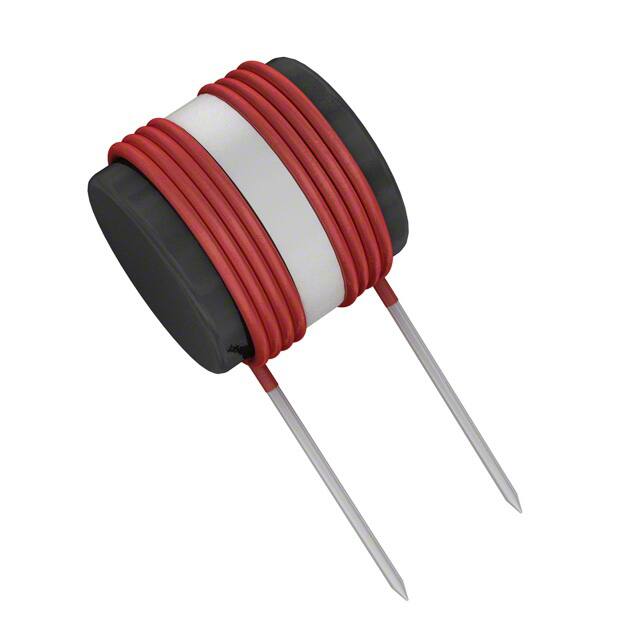

5HC-27FIXED IND 27UH 5A 25 MOHM TH |
2,124 |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 5 A | 15A | Unshielded | 25mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.875" Dia x 0.875" L (22.23mm x 22.23mm) | - |
|
5HC-5FIXED IND 5UH 5A 12 MOHM TH |
4,143 |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 5 A | 20A | Unshielded | 12mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.640" Dia x 0.875" L (16.26mm x 22.23mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
