Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ER1025-62KRFIXED IND 56UH 100MA 5.7 OHM TH |
3,507 |
|
Datasheet | Military, MIL-PRF-39010/10, ER1025 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±10% | 100 mA | - | Unshielded | 5.7Ohm Max | 45 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-64KRFIXED IND 68UH 92MA 6.7 OHM TH |
4,138 |
|
Datasheet | Military, MIL-PRF-39010/10, ER1025 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±10% | 92 mA | - | Unshielded | 6.7Ohm Max | 50 @ 2.5MHz | 15MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-68KRFIXED IND 100UH 84MA 8 OHM TH |
1,170 |
|
Datasheet | Military, MIL-PRF-39010/10, ER1025 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 84 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
15HC-10FIXED IND 10UH 15A 10 MOHM TH |
2,349 |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 15 A | 17A | Unshielded | 10mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.725" Dia x 1.687" L (18.42mm x 42.85mm) | - |
|
15HC-100FIXED IND 100UH 15A 30 MOHM TH |
1,076 |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 15 A | 5A | Unshielded | 30mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia x 1.625" L (38.10mm x 41.28mm) | - |
|

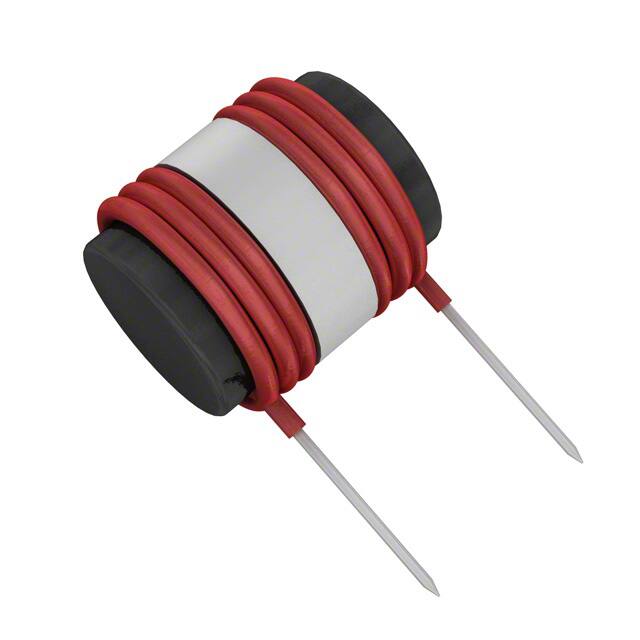

15HC-27FIXED IND 27UH 15A 15 MOHM TH |
1,332 |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 15 A | 14A | Unshielded | 15mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.375" L (25.40mm x 34.93mm) | - |
|

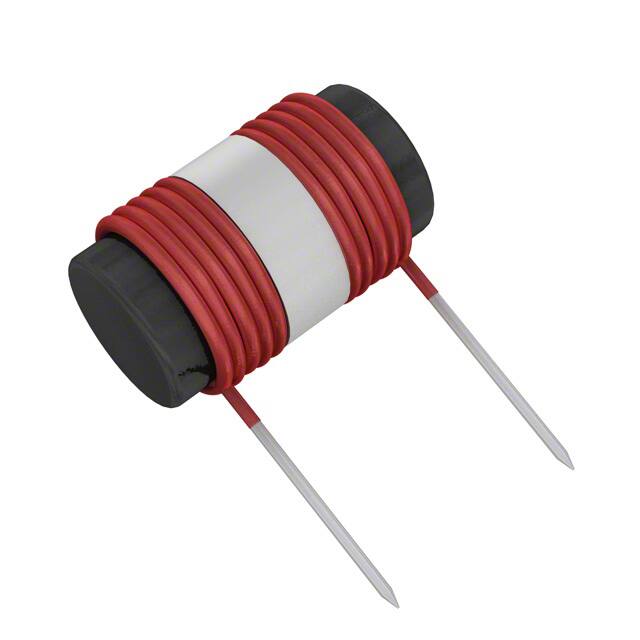

15HC-5FIXED IND 5UH 15A 8 MOHM TH |
2,434 |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 15 A | 20A | Unshielded | 8mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.725" Dia x 1.375" L (18.42mm x 34.93mm) | - |
|
15HC-50FIXED IND 50UH 15A 20 MOHM TH |
3,174 |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 15 A | 9A | Unshielded | 20mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.625" L (25.40mm x 41.28mm) | - |
|
15HCR-10FIXED IND 10UH 15A 10 MOHM TH |
3,569 |
|
Datasheet | HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 15 A | 17A | Unshielded | 10mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.725" Dia x 1.687" L (18.42mm x 42.85mm) | - |
|
|
15HCR-100FIXED IND 100UH 15A 30 MOHM TH |
3,323 |
|
Datasheet | HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 15 A | 5A | Unshielded | 30mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia x 1.625" L (38.10mm x 41.28mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
