Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMP3316-103MMOLDED UNSHIELDED INDUCTOR |
1,987 |
|
Datasheet | SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 1.4 A | 1.4A | Unshielded | 260mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-153MMOLDED UNSHIELDED INDUCTOR |
1,082 |
|
Datasheet | SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 µH | ±20% | 1.2 A | 1A | Unshielded | 380mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-473MMOLDED UNSHIELDED INDUCTOR |
2,448 |
|
Datasheet | SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 µH | ±20% | 650 mA | 640mA | Unshielded | 1.23Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-103MLFMOLDED UNSHIELDED INDUCTOR |
3,994 |
|
Datasheet | SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 1.4 A | 1.4A | Unshielded | 260mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
050KM1503HMHORIZ STANDOFF TOROIDAL CHOKE |
3,628 |
|
Datasheet | KMHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 150 µH | ±10% | 2.33 A | 780mA | Shielded | 100mOhm Max | - | 2MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.420" (10.67mm) |
|
|
050KM2003HMHORIZ STANDOFF TOROIDAL CHOKE |
1,156 |
|
Datasheet | KMHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 200 µH | ±10% | 1.97 A | 650mA | Shielded | 140mOhm Max | - | 1.7MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.420" (10.67mm) |
|
|
050KM2503HMHORIZ STANDOFF TOROIDAL CHOKE |
1,897 |
|
Datasheet | KMHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 250 µH | ±10% | 1.84 A | 590mA | Shielded | 160mOhm Max | - | 1.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.420" (10.67mm) |
|
FIE220-1FIXED IND 11.7UH 120A 1 MOHM TH |
1,018 |
|
Datasheet | FIE220 | 24-DIP Module | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 11.7 µH | ±10% | 120 A | - | Unshielded | 1mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 2.350" L x 2.050" W (59.69mm x 52.07mm) | 2.050" (52.07mm) |
|
|
2534R-28KFIXED IND 1.5MH 118MA 12 OHM TH |
2,401 |
|
Datasheet | 2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 1.5 mH | ±10% | 118 mA | - | Unshielded | 12Ohm Max | 90 @ 250kHz | 1.15MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-44KFIXED IND 6.8MH 61MA 45 OHM TH |
3,951 |
|
Datasheet | 2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 6.8 mH | ±10% | 61 mA | - | Unshielded | 45Ohm Max | 75 @ 250kHz | 500kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
PL8123FIXED IND 73UH 1.3A 290 MOHM SMD |
3,553 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 73 µH | - | 1.3 A | - | Unshielded | 290mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL8123NLFIXED IND 73UH 1.3A 290 MOHM SMD |
4,913 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 73 µH | - | 1.3 A | - | Unshielded | 290mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
SMT3106-152MLFSHIELDED TOROIDAL CHOKE |
4,904 |
|
Datasheet | SMT3106 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 15 µH | ±20% | 2.2 A | 1.6A | Shielded | 56mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.169" (4.30mm) |
|
CTRL5480F-4-104K1000UH RADIAL FXED INDUCTR |
4,103 |
|
Datasheet | CTRL5480F-4 | Radial, Vertical Cylinder | Bulk | Active | - | - | 100 mH | ±10% | 46 mA | 68mA | Unshielded | 130Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.449" Dia (11.40mm) | 0.709" (18.00mm) |
|
|
CTRL5480F-4-101K100UH RADIAL FIXED INDUCTOR |
3,852 |
|
Datasheet | CTRL5480F-4 | Radial, Vertical Cylinder | Bulk | Active | - | - | 100 µH | ±10% | 2 A | 2.8A | Unshielded | 108mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.449" Dia (11.40mm) | 0.709" (18.00mm) |
|

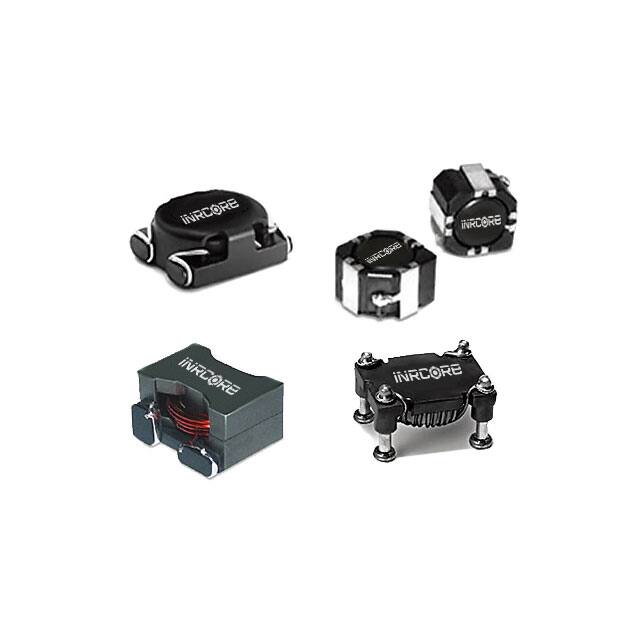

PL8120FIXED IND 3.8UH 8A 8.3 MOHM SMD |
4,783 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 3.8 µH | - | 8 A | - | Unshielded | 8.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL8120NLFIXED IND 3.8UH 8A 8.3 MOHM SMD |
4,204 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 3.8 µH | - | 8 A | - | Unshielded | 8.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
HCM2213V2-3R3-RIND MP 3.3UH 41A 2 PADS SMT |
1,672 |
|
Datasheet | HCMV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 3.3 µH | ±20% | 34 A | 41A | Shielded | 1.77mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
HCM2213V2-101-RIND MP 100UH 8A 2 PADS SMT |
2,748 |
|
Datasheet | HCMV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 100 µH | ±20% | 6.4 A | 8A | Shielded | 39.5mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
HCM2213V2-4R7-RIND MP 4.7UH 37A 2 PADS SMT |
3,726 |
|
Datasheet | HCMV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 4.7 µH | ±20% | 33 A | 37A | Shielded | 1.85mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
