Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
050KM3303HLFHORIZONTAL TOROIDAL INDUCTOR |
4,594 |
|
Datasheet | KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 330 µH | ±10% | 1.69 A | 500mA | Shielded | 190mOhm Max | - | 1MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 0.300" (7.62mm) |
|
|
M1330-44KFIXED IND 10UH 144MA 3.3 OHM SMD |
2,971 |
|
Datasheet | M1330 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 10 µH | ±10% | 144 mA | - | Unshielded | 3.3Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
|
PL8151FIXED IND 2.1UH 11.5A 4 MOHM SMD |
4,075 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 2.1 µH | - | 11.5 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL8151NLFIXED IND 2.1UH 11.5A 4 MOHM SMD |
2,461 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 2.1 µH | - | 11.5 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL10107FIXED IND 650NH 52A 0.98MOHM SMD |
3,080 |
|
Datasheet | - | Nonstandard | Tube | Active | Planar | - | 650 nH | ±15% | 52 A | 53A | Unshielded | 0.98mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10107NLFIXED IND 650NH 52A 0.98MOHM SMD |
3,020 |
|
Datasheet | - | Nonstandard | Tube | Active | Planar | - | 650 nH | ±15% | 52 A | 53A | Unshielded | 0.98mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10108FIXED IND 910NH 39A 0.98MOHM SMD |
4,860 |
|
Datasheet | - | Nonstandard | Tube | Active | Planar | - | 910 nH | ±15% | 39 A | 37A | Unshielded | 0.98mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10108NLFIXED IND 910NH 39A 0.98MOHM SMD |
2,241 |
|
Datasheet | - | Nonstandard | Tube | Active | Planar | - | 910 nH | ±15% | 39 A | 37A | Unshielded | 0.98mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10109FIXED IND 1.1UH 30A 0.98MOHM SMD |
3,627 |
|
Datasheet | - | Nonstandard | Tube | Active | Planar | - | 1.1 µH | ±15% | 30 A | 30A | Unshielded | 0.98mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10109NLFIXED IND 1.1UH 30A 0.98MOHM SMD |
2,410 |
|
Datasheet | - | Nonstandard | Tube | Active | Planar | - | 1.1 µH | ±15% | 30 A | 30A | Unshielded | 0.98mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10110FIXED IND 1.3UH 25A 0.98MOHM SMD |
4,168 |
|
Datasheet | - | Nonstandard | Tube | Active | Planar | - | 1.3 µH | ±15% | 25 A | 26A | Unshielded | 0.98mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10110NLFIXED IND 1.3UH 25A 0.98MOHM SMD |
4,613 |
|
Datasheet | - | Nonstandard | Tube | Active | Planar | - | 1.3 µH | ±15% | 25 A | 26A | Unshielded | 0.98mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10119NLTFIXED IND 2.42UH 30A 1.8MOHM SMD |
1,559 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 2.42 µH | ±15% | 30 A | 27A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10119TFIXED IND 2.42UH 30A 1.8MOHM SMD |
4,960 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 2.42 µH | ±15% | 30 A | 27A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
059KM7503HHORIZONTAL TOROIDAL INDUCTOR |
3,121 |
|
Datasheet | KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 750 µH | ±10% | 2.1 A | 1.6A | Shielded | 240mOhm Max | - | 600kHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.475" (12.06mm) |
|
|
050KM1003HMHORIZ STANDOFF TOROIDAL CHOKE |
3,724 |
|
Datasheet | KMHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 100 µH | ±10% | 3.14 A | 960mA | Shielded | 55mOhm Max | - | 4MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.420" (10.67mm) |
|
|
PL10102FIXED IND 910NH 39A 0.48MOHM SMD |
4,260 |
|
Datasheet | - | Nonstandard | Tube | Active | Planar | - | 910 nH | ±15% | 39 A | 37A | Unshielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PL10102NLFIXED IND 910NH 39A 0.48MOHM SMD |
1,127 |
|
Datasheet | - | Nonstandard | Tube | Active | Planar | - | 910 nH | ±15% | 39 A | 37A | Unshielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|

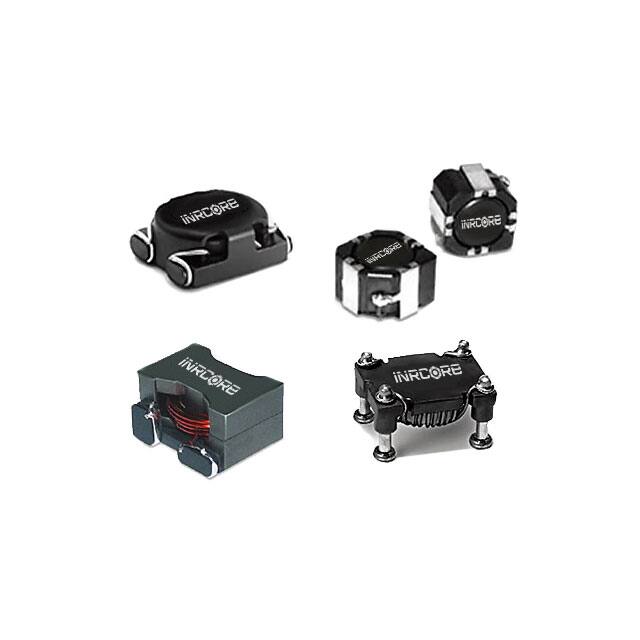

PL8132FIXED IND 40.5UH 2.7A 100MOHM SM |
3,855 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 40.5 µH | - | 2.7 A | - | Unshielded | 100mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL8132NLFIXED IND 40.5UH 2.7A 100MOHM SM |
2,896 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 40.5 µH | - | 2.7 A | - | Unshielded | 100mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
