Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIL1331-562KFIXED IND 5.6UH 124MA 2.9OHM SMD |
3,806 |
|
Datasheet | MIL1331 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 5.6 µH | ±10% | 124 mA | 124mA | Shielded | 2.9Ohm Max | 50 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
MIL1331-681KFIXED IND 680NH 430MA 240MOHM SM |
4,508 |
|
Datasheet | MIL1331 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 680 nH | ±10% | 430 mA | 430mA | Shielded | 240mOhm Max | 39 @ 25MHz | 180MHz | - | -55°C ~ 105°C | 25 MHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
MIL1331-682KFIXED IND 6.8UH 118MA 3.2OHM SMD |
2,126 |
|
Datasheet | MIL1331 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 6.8 µH | ±10% | 118 mA | 118mA | Shielded | 3.2Ohm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
MIL1331-821KFIXED IND 820NH 405MA 270MOHM SM |
4,105 |
|
Datasheet | MIL1331 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 820 nH | ±10% | 405 mA | 405mA | Shielded | 270mOhm Max | 38 @ 25MHz | 165MHz | - | -55°C ~ 105°C | 25 MHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
MIL1331-822KFIXED IND 8.2UH 111MA 3.6OHM SMD |
1,148 |
|
Datasheet | MIL1331 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 8.2 µH | ±10% | 111 mA | 111mA | Shielded | 3.6Ohm Max | 50 @ 7.9MHz | 53MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|

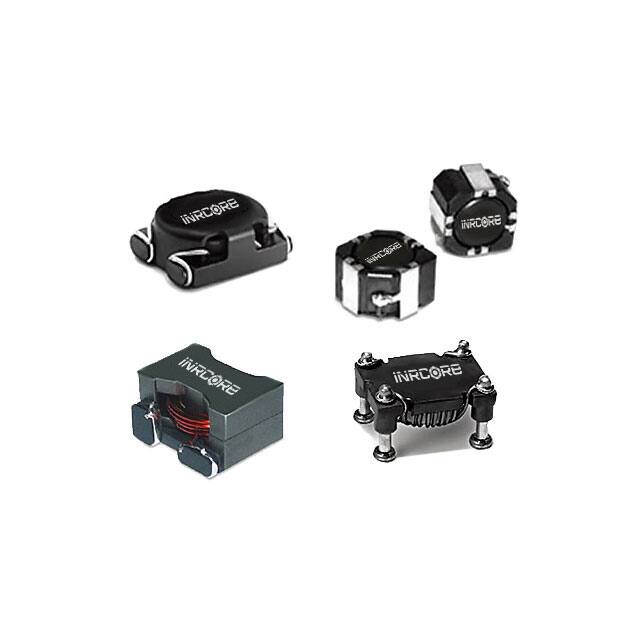

PL8161FIXED IND 4.2UH 11.4A 5.4MOHM SM |
4,425 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 4.2 µH | - | 11.4 A | - | Unshielded | 5.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
|
PL8161NLFIXED IND 4.2UH 11.4A 5.4MOHM SM |
1,681 |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 4.2 µH | - | 11.4 A | - | Unshielded | 5.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
|
050AT7502VSMVERTICAL MOUNT TOROIDAL INDUCTOR |
2,132 |
|
Datasheet | ATVSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 75 µH | ±10% | 3.47 A | 2.5A | Shielded | 45mOhm Max | - | 5MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.625" L x 0.550" W (15.87mm x 13.97mm) | 0.550" (13.97mm) |
|
|
SMP3316LP-332MLOW PROFILE UNSHIELDED INDUCTOR |
4,616 |
|
Datasheet | SMP3316LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 2.3 A | 2.4A | Unshielded | 91.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.197" (5.00mm) |
|
|
SMP3316LP-682MLOW PROFILE UNSHIELDED INDUCTOR |
3,684 |
|
Datasheet | SMP3316LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 1.7 A | 1.6A | Unshielded | 178mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.197" (5.00mm) |
|
|
SMP3316LP-102MLOW PROFILE UNSHIELDED INDUCTOR |
3,575 |
|
Datasheet | SMP3316LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 4.4 A | 4.2A | Unshielded | 26.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.197" (5.00mm) |
|
|
SMP3316LP-152MLOW PROFILE UNSHIELDED INDUCTOR |
1,822 |
|
Datasheet | SMP3316LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 3.5 A | 3.4A | Unshielded | 41mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.197" (5.00mm) |
|
|
SMP3316LP-222MLOW PROFILE UNSHIELDED INDUCTOR |
1,387 |
|
Datasheet | SMP3316LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.9 A | 3A | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.197" (5.00mm) |
|
|
SMP3316LP-472MLOW PROFILE UNSHIELDED INDUCTOR |
4,468 |
|
Datasheet | SMP3316LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 2 A | 1.8A | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.197" (5.00mm) |
|
|
IHB3BV1R0MFIXED IND 1UH 20.3A 3 MOHM TH |
1,178 |
|
Datasheet | IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 1 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV3R3MFIXED IND 3.3UH 20.3A 3 MOHM TH |
3,488 |
|
Datasheet | IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 3.3 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV4R7MFIXED IND 4.7UH 20.3A 3 MOHM TH |
4,906 |
|
Datasheet | IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 4.7 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV5R6MFIXED IND 5.6UH 20.3A 3 MOHM TH |
1,067 |
|
Datasheet | IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 5.6 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV8R2MFIXED IND 8.2UH 17.6A 4 MOHM TH |
1,618 |
|
Datasheet | IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 8.2 µH | ±20% | 17.6 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
S14100036FIXED IND 56UH 17A 8.5 MOHM TH |
3,889 |
|
Datasheet | WE-LCB | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 56 µH | ±20% | 17 A | - | Unshielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 0.906" W (36.00mm x 23.00mm) | 1.378" (35.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
