Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SNG-19A-080FIXED INDUCTOR 80UH 10 MOHM |
3,260 |
|
Datasheet | SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 80 µH | -30%, +50% | - | - | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | User Defined | - | 1.181" Dia (30.00mm) | 0.787" (20.00mm) |
|
ETQ-PAF1R2HFAFIXED IND 1.2UH 22.6A 1 MOHM SMD |
3,695 |
|
Datasheet | PCC-F179F (S1) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | - | 1.2 µH | ±30% | 22.6 A | 21.4A | Shielded | 1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.677" L x 0.661" W (17.20mm x 16.80mm) | 0.354" (9.00mm) |
|
050AT2502VSMVERTICAL MOUNT TOROIDAL INDUCTOR |
3,436 |
|
Datasheet | ATVSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 5.2 A | 5.3A | Shielded | 20mOhm Max | - | 10MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.625" L x 0.550" W (15.87mm x 13.97mm) | 0.550" (13.97mm) |
|

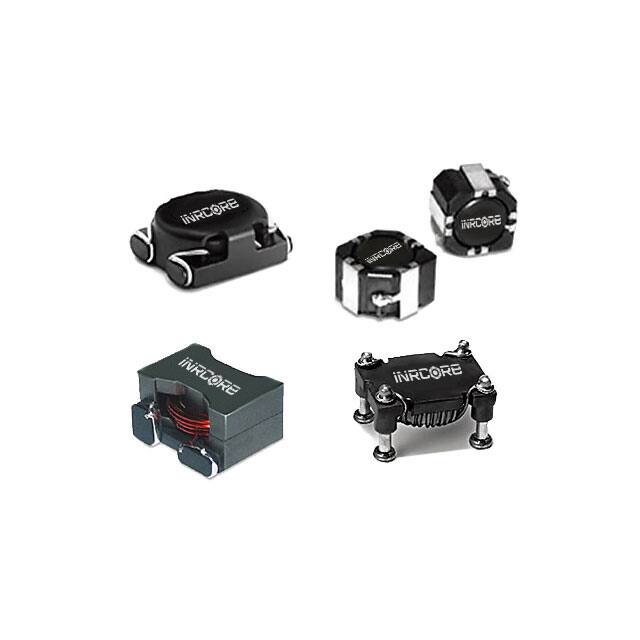

PL8302FIXED IND 20.4UH 13.5A 10.1 MOHM |
1,095 |
|
Datasheet | HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 20.4 µH | - | 13.5 A | - | Unshielded | 10.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
1537-701JFIXED IND 150NH 2.27A 28 MOHM TH |
2,166 |
|
Datasheet | 1537-7 | Axial | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±5% | 2.27 A | 2.27A | Shielded | 28mOhm | 45 @ 25MHz | 250MHz | - | - | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
MLRF24M394JMIL MOLDED AXIAL RF COIL |
2,546 |
|
Datasheet | MLRF24M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.9 mH | ±5% | 61 mA | - | Unshielded | 44Ohm Max | 80 @ 250kHz | 1.45MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
MLRF24M564JMIL MOLDED AXIAL RF COIL |
1,234 |
|
Datasheet | MLRF24M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 mH | ±5% | 56 mA | - | Unshielded | 53Ohm Max | 80 @ 250kHz | 1.25MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
PL8901NLTFIXED IND 1UH 11A 4 MOHM SMD |
1,533 |
|
Datasheet | PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 11 A | 14A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8901TFIXED IND 1UH 11A 4 MOHM SMD |
2,963 |
|
Datasheet | PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 11 A | 14A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
PL8902NLTFIXED IND 1.5UH 10A 6 MOHM SMD |
1,217 |
|
Datasheet | PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 10 A | 13A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8902TFIXED IND 1.5UH 10A 6 MOHM SMD |
4,195 |
|
Datasheet | PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 10 A | 13A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
PL8903NLTFIXED IND 2.7UH 9A 7.3 MOHM SMD |
4,325 |
|
Datasheet | PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 9 A | 11A | Shielded | 7.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8903TFIXED IND 2.7UH 9A 7.3 MOHM SMD |
4,042 |
|
Datasheet | PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 9 A | 11A | Shielded | 7.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8907TFIXED IND 7.6UH 5.5A 18.5MOHM SM |
2,234 |
|
Datasheet | PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.6 µH | ±30% | 5.5 A | 6.2A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
SMP8527-182KMOLDED UNSHIELDED INDUCTOR |
2,044 |
|
Datasheet | SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 18 µH | ±10% | 3.02 A | 2.2A | Unshielded | 54mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
|
|
SMP8527-152KLFMOLDED UNSHIELDED INDUCTOR |
2,519 |
|
Datasheet | SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±10% | 3.17 A | 2.6A | Unshielded | 49mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
|
|
SMP8527-222KLFMOLDED UNSHIELDED INDUCTOR |
1,462 |
|
Datasheet | SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 22 µH | ±10% | 2.88 A | 2A | Unshielded | 59mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
|
|
SMP8527-152KMOLDED UNSHIELDED INDUCTOR |
2,754 |
|
Datasheet | SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±10% | 3.17 A | 2.6A | Unshielded | 49mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
|
|
SMP8527-272KMOLDED UNSHIELDED INDUCTOR |
4,384 |
|
Datasheet | SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 27 µH | ±10% | 2.65 A | 1.8A | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
|
|
SMP8527-472KLFMOLDED UNSHIELDED INDUCTOR |
4,660 |
|
Datasheet | SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±10% | 2.2 A | 1.4A | Unshielded | 101mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
