Fixed Inductors

Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
S0603-15NH1D FIXED IND 15NH 700MA 200MOHM SMD Delevan	4,980	0.00	RFQ	Datasheet	S0603	0603 (1608 Metric)	Bulk	Active	Drum Core, Wirewound	Alumina	15 nH	±3%	700 mA	-	Unshielded	200mOhm Max	32 @ 250MHz	4GHz	-	-55°C ~ 125°C	250 MHz	-	Surface Mount	0603 (1608 Metric)	0.062" L x 0.035" W (1.58mm x 0.89mm)	0.040" (1.02mm)
S0603-22NH1D FIXED IND 22NH 700MA 220MOHM SMD Delevan	4,246	0.00	RFQ	Datasheet	S0603	0603 (1608 Metric)	Bulk	Active	Drum Core, Wirewound	Alumina	22 nH	±3%	700 mA	-	Unshielded	220mOhm Max	35 @ 250MHz	3GHz	-	-55°C ~ 125°C	250 MHz	-	Surface Mount	0603 (1608 Metric)	0.062" L x 0.035" W (1.58mm x 0.89mm)	0.040" (1.02mm)
S0603-3N3H1D FIXED IND 3.3NH 700MA 100MOHM SM Delevan	1,289	0.00	RFQ	Datasheet	S0603	0603 (1608 Metric)	Bulk	Active	Drum Core, Wirewound	Alumina	3.3 nH	±3%	700 mA	-	Unshielded	100mOhm Max	18 @ 250MHz	6GHz	-	-55°C ~ 125°C	250 MHz	-	Surface Mount	0603 (1608 Metric)	0.062" L x 0.035" W (1.58mm x 0.89mm)	0.040" (1.02mm)
S0603-5N6H1D FIXED IND 5.6NH 700MA 190MOHM SM Delevan	4,708	0.00	RFQ	Datasheet	S0603	0603 (1608 Metric)	Bulk	Active	Drum Core, Wirewound	Alumina	5.6 nH	±3%	700 mA	-	Unshielded	190mOhm Max	18 @ 250MHz	5.8GHz	-	-55°C ~ 125°C	250 MHz	-	Surface Mount	0603 (1608 Metric)	0.062" L x 0.035" W (1.58mm x 0.89mm)	0.040" (1.02mm)
S0603-8N2H1D FIXED IND 8.2NH 700MA 150MOHM SM Delevan	2,674	0.00	RFQ	Datasheet	S0603	0603 (1608 Metric)	Bulk	Active	Drum Core, Wirewound	Alumina	8.2 nH	±3%	700 mA	-	Unshielded	150mOhm Max	24 @ 250MHz	4.8GHz	-	-55°C ~ 125°C	250 MHz	-	Surface Mount	0603 (1608 Metric)	0.062" L x 0.035" W (1.58mm x 0.89mm)	0.040" (1.02mm)
050AT1003SM WIREWOUND TOROIDAL INDUCTOR Gowanda Electronics	2,249	0.00	RFQ	Datasheet	ATSM	Nonstandard	Tape & Reel (TR)	Active	Toroidal	-	100 µH	±10%	3.14 A	2.2A	Shielded	55mOhm Max	-	4MHz	-	-55°C ~ 130°C	1 kHz	-	Surface Mount	-	0.700" L x 0.670" W (17.78mm x 17.02mm)	0.405" (10.28mm)
CTS4F-6R8J 6.8UH XIALSHIELDED INDUCTOR Central Technologies	2,027	4.90	RFQ	Datasheet	CTS4F	Axial	Tape & Reel (TR)	Active	Molded	-	6.8 µH	±5%	560 mA	560mA	Shielded	750mOhm Max	42 @ 7.9MHz	62MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	Axial	0.160" Dia x 0.449" L (4.06mm x 11.40mm)	-
CTS4F-221K 220UH XIALSHIELDED INDUCTOR Central Technologies	1,284	4.90	RFQ	Datasheet	CTS4F	Axial	Tape & Reel (TR)	Active	Molded	-	220 µH	±10%	251 mA	80mA	Shielded	3.5Ohm Max	65 @ 790kHz	9.4MHz	-	-55°C ~ 125°C	1 kHz	-	Through Hole	Axial	0.160" Dia x 0.449" L (4.06mm x 11.40mm)	-
CTS4F-R22K 0.22UH XIALSHIELDED INDUCTOR Central Technologies	1,748	4.90	RFQ	Datasheet	CTS4F	Axial	Tape & Reel (TR)	Active	Molded	-	220 nH	±10%	2.05 A	2.05A	Shielded	50mOhm Max	50 @ 25MHz	400MHz	-	-55°C ~ 125°C	25 MHz	-	Through Hole	Axial	0.160" Dia x 0.449" L (4.06mm x 11.40mm)	-
CTS4F-4R7J 4.7UH XIALSHIELDED INDUCTOR Central Technologies	4,968	4.90	RFQ	Datasheet	CTS4F	Axial	Tape & Reel (TR)	Active	Molded	-	4.7 µH	±5%	710 mA	710mA	Shielded	470mOhm Max	42 @ 7.9MHz	72MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	Axial	0.160" Dia x 0.449" L (4.06mm x 11.40mm)	-
CTS4F-220J 22UH XIALSHIELDED INDUCTOR Central Technologies	2,759	4.90	RFQ	Datasheet	CTS4F	Axial	Tape & Reel (TR)	Active	Molded	-	22 µH	±5%	565 mA	220mA	Shielded	740mOhm Max	50 @ 2.5MHz	38MHz	-	-55°C ~ 125°C	2.5 MHz	-	Through Hole	Axial	0.160" Dia x 0.449" L (4.06mm x 11.40mm)	-
PL8300NLT FIXED IND 38UH 9.5A 19.3MOHM SMD iNRCORE, LLC	2,220	8.99	RFQ	Datasheet	HCCI-80	Nonstandard	Tape & Reel (TR)	Active	Toroidal	-	38 µH	-	9.5 A	-	Unshielded	19.3mOhm Max	-	-	-	-55°C ~ 130°C	300 kHz	-	Surface Mount	-	1.220" L x 1.000" W (30.99mm x 25.40mm)	0.500" (12.70mm)

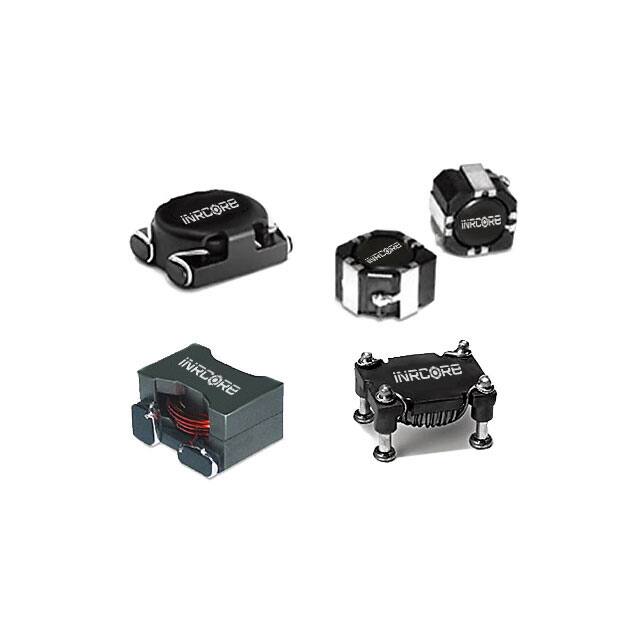

PL8300T FIXED IND 38UH 9.5A 19.3MOHM SMD iNRCORE, LLC	3,354	8.99	RFQ	Datasheet	HCCI-80	Nonstandard	Tape & Reel (TR)	Active	Toroidal	-	38 µH	-	9.5 A	-	Unshielded	19.3mOhm Max	-	-	-	-55°C ~ 130°C	300 kHz	-	Surface Mount	-	1.220" L x 1.000" W (30.99mm x 25.40mm)	0.500" (12.70mm)
PL8301NLT FIXED IND 28.7UH 12A 13.8 MOHM iNRCORE, LLC	1,112	8.99	RFQ	Datasheet	HCCI-80	Nonstandard	Tape & Reel (TR)	Active	Toroidal	-	28.7 µH	-	12 A	-	Unshielded	13.8mOhm Max	-	-	-	-55°C ~ 130°C	300 kHz	-	Surface Mount	-	1.220" L x 1.000" W (30.99mm x 25.40mm)	0.500" (12.70mm)
PL8301T FIXED IND 28.7UH 12A 13.8 MOHM iNRCORE, LLC	2,500	8.99	RFQ	Datasheet	HCCI-80	Nonstandard	Tape & Reel (TR)	Active	Toroidal	-	28.7 µH	-	12 A	-	Unshielded	13.8mOhm Max	-	-	-	-55°C ~ 130°C	300 kHz	-	Surface Mount	-	1.220" L x 1.000" W (30.99mm x 25.40mm)	0.500" (12.70mm)
IHDM1008BCEV5R6M20 HIGH CURRENT THROUGH-HOLE INDUCT Vishay Dale	4,162	12.22	RFQ	Datasheet	IHDM-1008BC-x0	Vertical, 2 PC Pin	Tray	Active	Wirewound	Iron Powder	5.6 µH	±20%	45 A	125A	Unshielded	1.5mOhm Max	-	34MHz	-	-40°C ~ 180°C	100 kHz	-	Through Hole	Vertical, 2 PC Pin	1.005" L x 0.816" W (25.53mm x 20.73mm)	0.896" (22.75mm)
PL9121T FIXED IND 120UH 1.3A 253MOHM SMD iNRCORE, LLC	4,312	8.33	RFQ	Datasheet	PL91XX	Nonstandard	Tape & Reel (TR)	Active	-	-	120 µH	±20%	1.3 A	1.3A	Shielded	253mOhm Max	-	-	-	-55°C ~ 130°C	-	-	Surface Mount	-	0.413" L x 0.413" W (10.50mm x 10.50mm)	0.248" (6.30mm)
1944-15F FIXED IND 1.5UH 850MA 380MOHM TH Delevan	4,073	7.52	RFQ	Datasheet	1944	Axial	Tape & Reel (TR)	Active	Molded	Phenolic	1.5 µH	±1%	850 mA	-	Unshielded	380mOhm Max	45 @ 15MHz	160MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	-	0.193" Dia x 0.447" L (4.90mm x 11.35mm)	-
1944-16F FIXED IND 1.8UH 720MA 540MOHM TH Delevan	2,431	7.52	RFQ	Datasheet	1944	Axial	Tape & Reel (TR)	Active	Molded	Phenolic	1.8 µH	±1%	720 mA	-	Unshielded	540mOhm Max	45 @ 15MHz	144MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	-	0.193" Dia x 0.447" L (4.90mm x 11.35mm)	-
1944-17F FIXED IND 2.2UH 610MA 750MOHM TH Delevan	2,937	7.52	RFQ	Datasheet	1944	Axial	Tape & Reel (TR)	Active	Molded	Phenolic	2.2 µH	±1%	610 mA	-	Unshielded	750mOhm Max	45 @ 15MHz	132MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	-	0.193" Dia x 0.447" L (4.90mm x 11.35mm)	-

FAQ

Frequently Asked Questions

What are Fixed Inductors components used for?

Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right Fixed Inductors part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
