Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HF1008R-392FFIXED IND 3.9UH 275MA 1.95OHM SM |
3,567 |
|
Datasheet | HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±1% | 275 mA | - | Unshielded | 1.95Ohm Max | 30 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-471FFIXED IND 470NH 310MA 1.55OHM SM |
2,333 |
|
Datasheet | HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±1% | 310 mA | - | Unshielded | 1.55Ohm Max | 30 @ 25MHz | 425MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-472FFIXED IND 4.7UH 273MA 2 OHM SMD |
3,965 |
|
Datasheet | HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±1% | 273 mA | - | Unshielded | 2Ohm Max | 30 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-561FFIXED IND 560NH 300MA 1.65OHM SM |
3,826 |
|
Datasheet | HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 560 nH | ±1% | 300 mA | - | Unshielded | 1.65Ohm Max | 30 @ 25MHz | 415MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-621FFIXED IND 620NH 290MA 1.75OHM SM |
2,237 |
|
Datasheet | HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 620 nH | ±1% | 290 mA | - | Unshielded | 1.75Ohm Max | 30 @ 25MHz | 375MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-681FFIXED IND 680NH 280MA 1.85OHM SM |
2,706 |
|
Datasheet | HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 nH | ±1% | 280 mA | - | Unshielded | 1.85Ohm Max | 30 @ 25MHz | 340MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-751FFIXED IND 750NH 275MA 1.95OHM SM |
1,820 |
|
Datasheet | HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 750 nH | ±1% | 275 mA | - | Unshielded | 1.95Ohm Max | 30 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-821FFIXED IND 820NH 273MA 2 OHM SMD |
3,983 |
|
Datasheet | HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 820 nH | ±1% | 273 mA | - | Unshielded | 2Ohm Max | 30 @ 25MHz | 325MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-911FFIXED IND 910NH 270MA 2.05OHM SM |
1,456 |
|
Datasheet | HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 910 nH | ±1% | 270 mA | - | Unshielded | 2.05Ohm Max | 30 @ 25MHz | 305MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
SMRF2007-332MMOLDED VERT TOROIDAL INDUCTOR |
2,330 |
|
Datasheet | SMRF2007 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 743 mA | 78mA | Unshielded | 330mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.175" (4.44mm) |
|
|
SMRF2007-151MMOLDED VERT TOROIDAL INDUCTOR |
2,285 |
|
Datasheet | SMRF2007 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 µH | ±20% | 1.59 A | 1.2A | Unshielded | 72mOhm Max | - | 125MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.175" (4.44mm) |
|
|
ER5025S-100JMINDUCTOR RF SMD |
3,435 |
|
Datasheet | ER5025S | Nonstandard | Tape & Reel (TR) | Active | Molded | Phenolic | 100 nH | ±5% | 2.245 A | - | Shielded | 25mOhm Max | 45 @ 25MHz | 450MHz | - | -55°C ~ 105°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
ER5025S-152JMINDUCTOR RF SMD |
1,321 |
|
Datasheet | ER5025S | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±5% | 395 mA | - | Shielded | 800mOhm Max | 40 @ 2.5MHz | 42MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
PL8304NLTFIXED IND 8.4UH 19A 5.1 MOHM SMD |
3,298 |
|
Datasheet | HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|

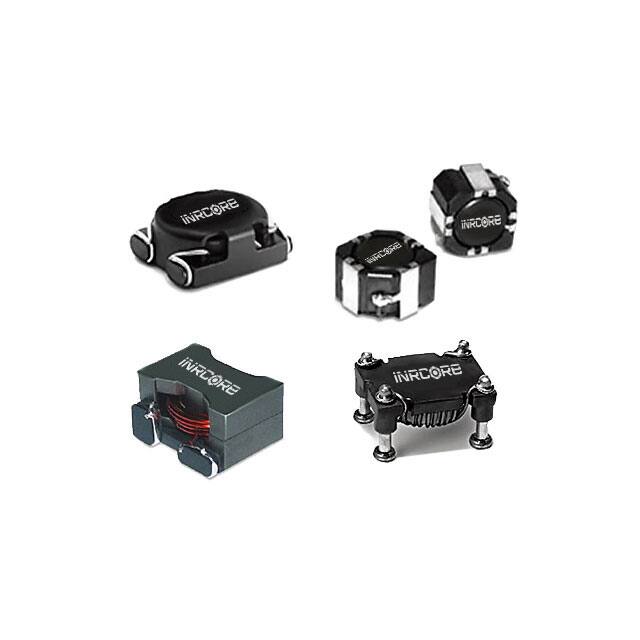

PL8304TFIXED IND 8.4UH 19A 5.1 MOHM SMD |
3,530 |
|
Datasheet | HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL9118TFIXED IND 68UH 1.8A 120 MOHM SMD |
2,754 |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.8 A | 1.8A | Shielded | 120mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
030AT1503SMLFWIREWOUND TOROIDAL INDUCTOR |
2,183 |
|
Datasheet | ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 150 µH | ±10% | 1.33 A | 1A | Shielded | 185mOhm Max | - | 3.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
030AT1503SMWIREWOUND TOROIDAL INDUCTOR |
1,653 |
|
Datasheet | ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 150 µH | ±10% | 1.33 A | 1A | Shielded | 185mOhm Max | - | 3.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
CPCF2920AS-101MTHT HIGH CURRENT POWER INDUCTOR |
1,837 |
|
Datasheet | CPCF2920AS | Vertical, 4 PC Pin | Tray | Active | Wirewound | Metal Composite | 100 µH | ±20% | 10.5 A | 9A | Shielded | 25.19mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 1.142" L x 0.945" W (29.00mm x 24.00mm) | 0.846" (21.50mm) |
|
|
CPCF2920LS-101MTHT HIGH CURRENT POWER INDUCTOR |
4,098 |
|
Datasheet | CPCF2920LS | Vertical, 4 PC Pin | Tray | Active | Wirewound | Metal Composite | 100 µH | ±20% | 8.2 A | 9.48A | Shielded | 39.49mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 1.142" L x 0.945" W (29.00mm x 24.00mm) | 0.846" (21.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
