Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GA20-683KHIGH CURRENT AXIAL POWER CHOKE |
3,061 |
|
Datasheet | GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 680 µH | ±10% | 416 mA | 490mA | Unshielded | 1.61Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-473KLFHIGH CURRENT AXIAL POWER CHOKE |
1,184 |
|
Datasheet | GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 470 µH | ±10% | 491 mA | 590mA | Unshielded | 1.15Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-823KHIGH CURRENT AXIAL POWER CHOKE |
3,739 |
|
Datasheet | GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 820 µH | ±10% | 377 mA | 440mA | Unshielded | 1.96Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-563KHIGH CURRENT AXIAL POWER CHOKE |
2,140 |
|
Datasheet | GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 560 µH | ±10% | 0.494 mA | 310mA | Unshielded | 1.14Ohm Max | - | 1.1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-823KLFHIGH CURRENT AXIAL POWER CHOKE |
2,485 |
|
Datasheet | GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 820 µH | ±10% | 0.404 mA | 260mA | Unshielded | 1.7Ohm Max | - | 960kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-563KHIGH CURRENT AXIAL POWER CHOKE |
1,003 |
|
Datasheet | GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 560 µH | ±10% | 468 mA | 540mA | Unshielded | 1.27Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-473KHIGH CURRENT AXIAL POWER CHOKE |
4,563 |
|
Datasheet | GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 470 µH | ±10% | 530 µA | 320mA | Unshielded | 990mOhm Max | - | 1.2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-683KHIGH CURRENT AXIAL POWER CHOKE |
2,806 |
|
Datasheet | GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 680 µH | ±10% | 0.43 mA | 0.28mA | Unshielded | 1.5Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|

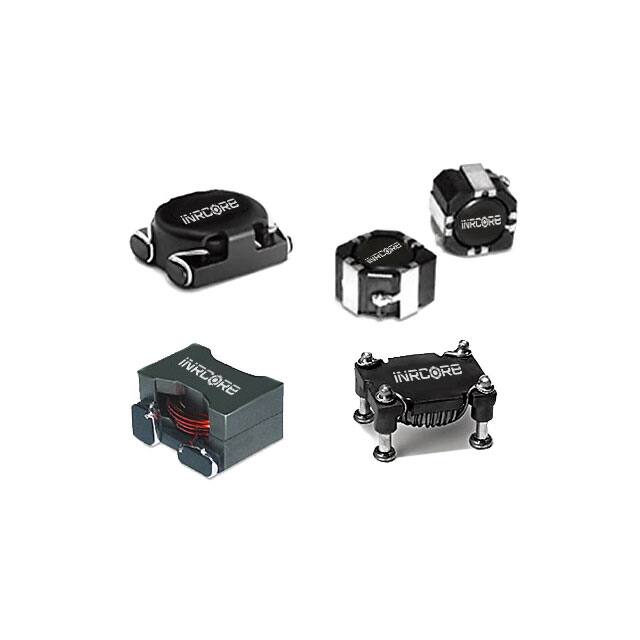

PL8100TFIXED IND 1.1UH 3.4A 11 MOHM SMD |
3,342 |
|
Datasheet | SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 1.1 µH | - | 3.4 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|
|
2500R-56JFIXED IND 3.9MH 62MA 44 OHM TH |
3,293 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 3.9 mH | ±5% | 62 mA | - | Unshielded | 44Ohm Max | 80 @ 250kHz | 1.45MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-58JFIXED IND 4.3MH 60MA 46 OHM TH |
1,439 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 4.3 mH | ±5% | 60 mA | - | Unshielded | 46Ohm Max | 80 @ 250kHz | 1.4MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-60JFIXED IND 4.7MH 59MA 48 OHM TH |
4,318 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 4.7 mH | ±5% | 59 mA | - | Unshielded | 48Ohm Max | 80 @ 250kHz | 1.35MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-62JFIXED IND 5MH 58MA 50 OHM TH |
4,271 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5 mH | ±5% | 58 mA | - | Unshielded | 50Ohm Max | 80 @ 250kHz | 1.3MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-63JFIXED IND 5.1MH 58MA 50 OHM TH |
3,404 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5.1 mH | ±5% | 58 mA | - | Unshielded | 50Ohm Max | 80 @ 250kHz | 1.3MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-64JFIXED IND 5.6MH 56MA 53 OHM TH |
3,206 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5.6 mH | ±5% | 56 mA | - | Unshielded | 53Ohm Max | 80 @ 250kHz | 1.25MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-66JFIXED IND 6.2MH 55MA 56 OHM TH |
4,820 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.2 mH | ±5% | 55 mA | - | Unshielded | 56Ohm Max | 80 @ 250kHz | 1.2MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-68JFIXED IND 6.8MH 54MA 59 OHM TH |
1,482 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.8 mH | ±5% | 54 mA | - | Unshielded | 59Ohm Max | 80 @ 250kHz | 1.15MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-70JFIXED IND 7.5MH 52MA 62 OHM TH |
3,948 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 7.5 mH | ±5% | 52 mA | - | Unshielded | 62Ohm Max | 80 @ 250kHz | 1.1MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-72JFIXED IND 8.2MH 51MA 65 OHM TH |
2,298 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 8.2 mH | ±5% | 51 mA | - | Unshielded | 65Ohm Max | 80 @ 250kHz | 1.05MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-74JFIXED IND 9.1MH 49MA 68 OHM TH |
2,644 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 9.1 mH | ±5% | 49 mA | - | Unshielded | 68Ohm Max | 80 @ 250kHz | 1MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
