Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GA20-333KHIGH CURRENT AXIAL POWER CHOKE |
4,569 |
|
Datasheet | GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 330 µH | ±10% | 647 mA | 700mA | Unshielded | 665mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-333KHIGH CURRENT AXIAL POWER CHOKE |
1,900 |
|
Datasheet | GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 330 µH | ±10% | 0.639 mA | 380mA | Unshielded | 680mOhm Max | - | 1.4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-223KHIGH CURRENT AXIAL POWER CHOKE |
2,796 |
|
Datasheet | GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 220 µH | ±10% | 804 mA | 860mA | Unshielded | 430mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
TCK-166PWR SUPP, SUPPLIES & COND |
3,277 |
|
Datasheet | - | Nonstandard | Bulk | Active | - | - | 8.2 µH | ±20% | 9 A | - | Unshielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
PL8101NLTFIXED IND 7UH 1.4A 70 MOHM SMD |
3,000 |
|
Datasheet | SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 7 µH | - | 1.4 A | - | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|

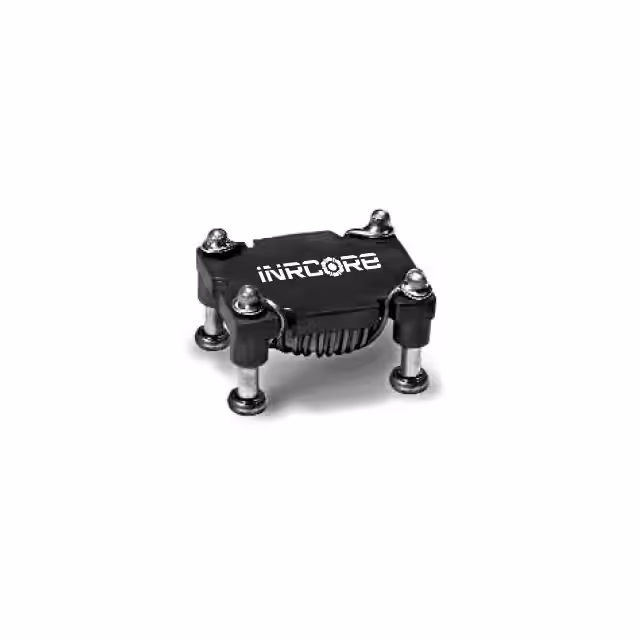

PL8101TFIXED IND 7UH 1.4A 70 MOHM SMD |
4,169 |
|
Datasheet | SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 7 µH | - | 1.4 A | - | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|
SWS-0.85-680FIXED IND 680UH 850MA 1.25OHM SM |
2,847 |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 680 µH | ±20% | 850 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 125°C | 20 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.435" (11.05mm) |
|
750341479FIXED IND 2.2MH 1.16 OHM TH |
4,728 |
|
Datasheet | MID-DC16US | Radial, Horizontal, 6 Leads | Tray | Active | - | - | 2.2 mH | ±10% | - | - | - | 1.16Ohm Max | - | - | - | - | 100 kHz | - | Through Hole | - | 0.695" L x 0.655" W (17.65mm x 16.64mm) | 0.591" (15.00mm) |
|
|
MLP22-272LMOLDED AXL UNSHIELDED INDUCTOR |
2,100 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 27 µH | ±15% | 1.48 A | 1.48A | Unshielded | 179mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-123LMOLDED AXL UNSHIELDED INDUCTOR |
3,316 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 120 µH | ±15% | 730 mA | 730mA | Unshielded | 735mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-152LMOLDED AXL UNSHIELDED INDUCTOR |
1,280 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±15% | 2.11 A | 2.11A | Unshielded | 89mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-223LMOLDED AXL UNSHIELDED INDUCTOR |
3,453 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±15% | 500 mA | 500mA | Unshielded | 1.58Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-103LMOLDED AXL UNSHIELDED INDUCTOR |
4,423 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±15% | 760 mA | 760mA | Unshielded | 672mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-122LMOLDED AXL UNSHIELDED INDUCTOR |
2,760 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 12 µH | ±15% | 2.24 A | 2.24A | Unshielded | 79mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-823LMOLDED AXL UNSHIELDED INDUCTOR |
3,529 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 820 µH | ±15% | 260 mA | 260mA | Unshielded | 6.04Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-183LMOLDED AXL UNSHIELDED INDUCTOR |
4,365 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 180 µH | ±15% | 530 mA | 530mA | Unshielded | 1.37Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-822LMOLDED AXL UNSHIELDED INDUCTOR |
2,240 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 82 µH | ±15% | 810 mA | 810mA | Unshielded | 604mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-392LMOLDED AXL UNSHIELDED INDUCTOR |
1,107 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 39 µH | ±15% | 1.12 A | 1.12A | Unshielded | 315mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-472LMOLDED AXL UNSHIELDED INDUCTOR |
1,815 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±15% | 1.04 A | 1.04A | Unshielded | 362mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
MLP22-563LMOLDED AXL UNSHIELDED INDUCTOR |
4,755 |
|
Datasheet | MLP22 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 560 µH | ±15% | 330 mA | 330mA | Unshielded | 3.75Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
