Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2500R-38JFIXED IND 1.6MH 74MA 26 OHM TH |
3,036 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.6 mH | ±5% | 74 mA | - | Unshielded | 26Ohm Max | 65 @ 250kHz | 2.3MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-40JFIXED IND 1.8MH 71MA 28 OHM TH |
1,891 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.8 mH | ±5% | 71 mA | - | Unshielded | 28Ohm Max | 65 @ 250kHz | 2.2MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-44JFIXED IND 2.2MH 68MA 30 OHM TH |
3,345 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 2.2 mH | ±5% | 68 mA | - | Unshielded | 30Ohm Max | 70 @ 250kHz | 2MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-46JFIXED IND 2.4MH 67MA 31 OHM TH |
2,055 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 2.4 mH | ±5% | 67 mA | - | Unshielded | 31Ohm Max | 70 @ 250kHz | 1.9MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-48JFIXED IND 2.7MH 65MA 33 OHM TH |
3,241 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 2.7 mH | ±5% | 65 mA | - | Unshielded | 33Ohm Max | 70 @ 250kHz | 1.8MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-50JFIXED IND 3MH 63MA 35 OHM TH |
1,038 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 3 mH | ±5% | 63 mA | - | Unshielded | 35Ohm Max | 70 @ 250kHz | 1.7MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-52JFIXED IND 3.3MH 61MA 38 OHM TH |
2,469 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 3.3 mH | ±5% | 61 mA | - | Unshielded | 38Ohm Max | 70 @ 250kHz | 1.6MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-54JFIXED IND 3.6MH 59MA 40 OHM TH |
4,229 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 3.6 mH | ±5% | 59 mA | - | Unshielded | 40Ohm Max | 70 @ 250kHz | 1.5MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|

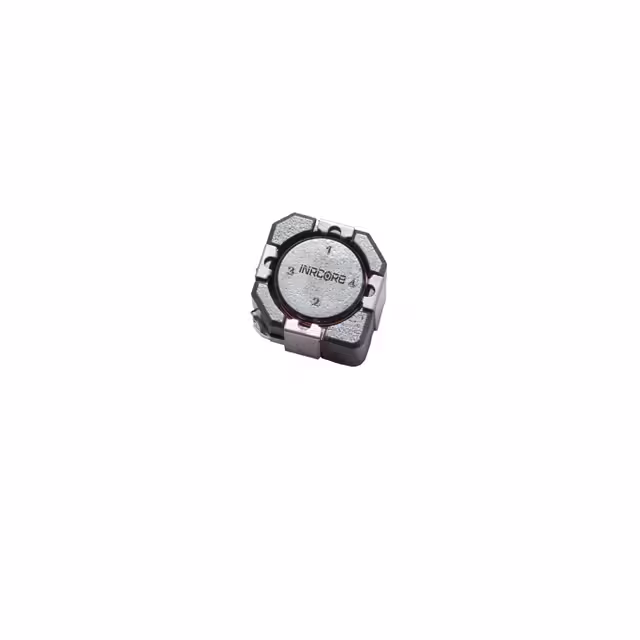

PL9422TFIXED IND 330UH 450MA 1.199 OHM |
4,742 |
|
Datasheet | PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 450 mA | 450mA | Shielded | 1.199Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
831651000FIXED IND 1UH 20A 4 MOHM SMD |
2,022 |
|
Datasheet | WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 1 µH | ±20% | 20 A | 30A | Shielded | 4mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - |
|
|
831653300FIXED IND 3.3UH 11.5A 13 MOHM |
2,884 |
|
Datasheet | WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 3.3 µH | ±20% | 11.5 A | 22A | Shielded | 13mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - |
|
|
831654700FIXED IND 4.7UH 10A 17 MOHM SMD |
3,354 |
|
Datasheet | WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 4.7 µH | ±20% | 10 A | 19.5A | Shielded | 17mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - |
|
|
831651001FIXED IND 10UH 6.3A 31.1MOHM SMD |
3,118 |
|
Datasheet | WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 10 µH | ±20% | 6.3 A | 15A | Shielded | 31.1mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - |
|
|
831651501FIXED IND 15UH 5A 67 MOHM SMD |
4,531 |
|
Datasheet | WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | 15 µH | ±20% | 5 A | 13A | Shielded | 67mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - |
|
DRAP124-4R7-RFIXED IND 4.7UH 5.47A 17MOHM SMD |
4,300 |
|
Datasheet | DRAP124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 5.47 A | 9.06A | Shielded | 17mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.181" (4.60mm) |
|
IHSM3825ER680LFIXED IND 68UH 610MA 1.04OHM SMD |
2,908 |
|
Datasheet | IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±15% | 610 mA | 580mA | Unshielded | 1.04Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
|
P0149NLTFIXED IND 100UH 1.23A 283MOHM SM |
4,640 |
|
Datasheet | Bobcat | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 100 µH | - | 1.23 A | - | Unshielded | 283mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
P0148NLTFIXED IND 83UH 1.35A 208MOHM SMD |
1,477 |
|
Datasheet | Bobcat | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 83 µH | - | 1.35 A | - | Unshielded | 208mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
P0147NLTFIXED IND 56UH 1.65A 139MOHM SMD |
4,464 |
|
Datasheet | Bobcat | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 56 µH | - | 1.65 A | - | Unshielded | 139mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
P0145NLTFIXED IND 14.6UH 3.13A 46MOHM SM |
4,890 |
|
Datasheet | Bobcat | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 14.6 µH | - | 3.13 A | - | Unshielded | 46mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
