Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLRF15M113JMIL MOLDED AXIAL RF COIL |
3,485 |
|
Datasheet | MLRF15M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 110 µH | ±5% | 128 mA | - | Unshielded | 4.9Ohm Max | 60 @ 790kHz | 8.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
|
MLRF15M133JMIL MOLDED AXIAL RF COIL |
2,201 |
|
Datasheet | MLRF15M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 130 µH | ±5% | 121 mA | - | Unshielded | 5.45Ohm Max | 65 @ 790kHz | 8.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
|
MLRF15M243JMIL MOLDED AXIAL RF COIL |
3,552 |
|
Datasheet | MLRF15M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 240 µH | ±5% | 101 mA | - | Unshielded | 7.8Ohm Max | 65 @ 790kHz | 5.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
|
1330R-78JFIXED IND 270UH 47MA 25 OHM SMD |
2,156 |
|
Datasheet | 1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 270 µH | ±5% | 47 mA | - | Unshielded | 25Ohm Max | 30 @ 790kHz | 8MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-80JFIXED IND 330UH 45MA 28 OHM SMD |
3,126 |
|
Datasheet | 1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±5% | 45 mA | - | Unshielded | 28Ohm Max | 30 @ 790kHz | 7MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-82JFIXED IND 390UH 40MA 35 OHM SMD |
4,161 |
|
Datasheet | 1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 390 µH | ±5% | 40 mA | - | Unshielded | 35Ohm Max | 30 @ 790kHz | 6.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-84JFIXED IND 470UH 36MA 42 OHM SMD |
2,426 |
|
Datasheet | 1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±5% | 36 mA | - | Unshielded | 42Ohm Max | 30 @ 790kHz | 6MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-86JFIXED IND 560UH 35MA 46 OHM SMD |
2,649 |
|
Datasheet | 1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 560 µH | ±5% | 35 mA | - | Unshielded | 46Ohm Max | 30 @ 790kHz | 5MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-88JFIXED IND 680UH 30MA 60 OHM SMD |
4,966 |
|
Datasheet | 1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±5% | 30 mA | - | Unshielded | 60Ohm Max | 30 @ 790kHz | 4.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-90JFIXED IND 820UH 29MA 65 OHM SMD |
3,885 |
|
Datasheet | 1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 820 µH | ±5% | 29 mA | - | Unshielded | 65Ohm Max | 30 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1330R-92JFIXED IND 1MH 28MA 72 OHM SMD |
3,529 |
|
Datasheet | 1330R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±5% | 28 mA | - | Unshielded | 72Ohm Max | 30 @ 790kHz | 3.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
SMP5025-564KMOLDED UNSHIELDED INDUCTOR |
4,988 |
|
Datasheet | SMP5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 5.6 mH | ±10% | 114 mA | 110mA | Unshielded | 30Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
SMP5025-474KMOLDED UNSHIELDED INDUCTOR |
1,354 |
|
Datasheet | SMP5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 mH | ±10% | 125 mA | 120mA | Unshielded | 25Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
SMP5025-394KMOLDED UNSHIELDED INDUCTOR |
2,807 |
|
Datasheet | SMP5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 3.9 mH | ±10% | 136 mA | 130mA | Unshielded | 21Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
SMP5025-394KLFMOLDED UNSHIELDED INDUCTOR |
4,973 |
|
Datasheet | SMP5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 3.9 mH | ±10% | 136 mA | 130mA | Unshielded | 21Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
UP2C-330-RFIXED IND 33UH 2.16A 79.7MOHM SM |
3,443 |
|
Datasheet | UNI-PAC™ 2C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.16 A | 2.2A | Unshielded | 79.7mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.205" (5.20mm) |
|

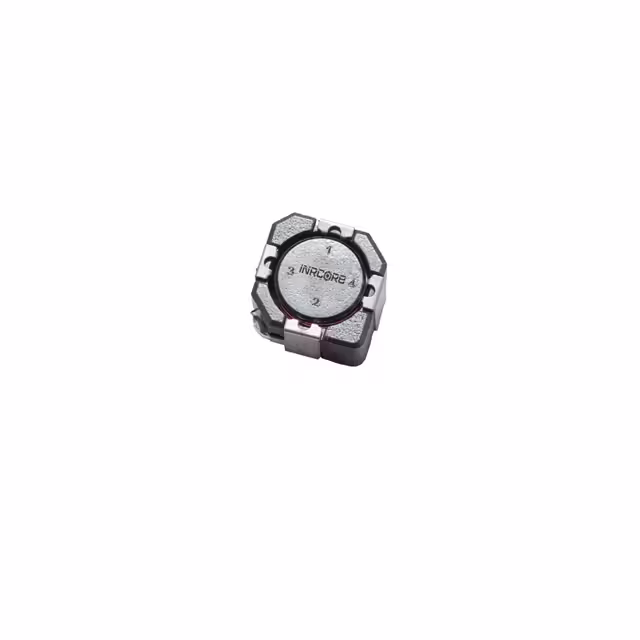

PL9420TFIXED IND 150UH 700MA 545MOHM SM |
1,299 |
|
Datasheet | PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 700 mA | 700mA | Shielded | 545mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
PL9421TFIXED IND 220UH 580MA 837MOHM SM |
3,165 |
|
Datasheet | PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 580 mA | 580mA | Shielded | 837mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
SWS-0.82-78FIXED IND 78UH 820MA 300MOHM SMD |
2,931 |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 78 µH | ±20% | 820 mA | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.285" (7.25mm) |
|
0819-74JFIXED IND 120UH 54.5MA 16 OHM TH |
4,159 |
|
Datasheet | 819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 120 µH | ±5% | 54.5 mA | - | Unshielded | 16Ohm Max | 35 @ 790kHz | 8.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
