Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMP5025-152KMOLDED UNSHIELDED INDUCTOR |
1,185 |
|
Datasheet | SMP5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±10% | 2.09 A | 2A | Unshielded | 89mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
SMP5025-332KMOLDED UNSHIELDED INDUCTOR |
2,323 |
|
Datasheet | SMP5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 33 µH | ±10% | 1.33 A | 1.4A | Unshielded | 222mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
SMP5025-182KLFMOLDED UNSHIELDED INDUCTOR |
3,063 |
|
Datasheet | SMP5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 18 µH | ±10% | 1.89 A | 1.8A | Unshielded | 109mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
SMP5025-122KMOLDED UNSHIELDED INDUCTOR |
3,344 |
|
Datasheet | SMP5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 12 µH | ±10% | 2.22 A | 2.2A | Unshielded | 79mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
2218-VFIXED IND 330UH 3.3A 100 MOHM TH |
2,532 |
|
Datasheet | 2200 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 330 µH | ±15% | 3.3 A | - | Shielded | 100mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2220-VFIXED IND 470UH 2.3A 190 MOHM TH |
1,627 |
|
Datasheet | 2200 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 470 µH | ±15% | 2.3 A | - | Shielded | 190mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2224-VFIXED IND 1MH 1.9A 280 MOHM TH |
3,540 |
|
Datasheet | 2200 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 1 mH | ±15% | 1.9 A | - | Shielded | 280mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
IHSM5832ER1R58LFIXED IND 1.8UH 8.6A 13 MOHM SMD |
3,819 |
|
Datasheet | IHSM-5832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±15% | 8.6 A | 4.4A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM5832ER2R7LFIXED IND 2.7UH 8.4A 17 MOHM SMD |
3,476 |
|
Datasheet | IHSM-5832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±15% | 8.4 A | 3.7A | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
CDMT40D30HF-4R7NCFIXED IND 4.7UH 3.6A 37 MOHM SMD |
4,925 |
|
Datasheet | CDMT40D30 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±30% | 3.6 A | 4.3A | Shielded | 37mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.163" L x 0.163" W (4.15mm x 4.15mm) | 0.122" (3.10mm) |
|
|
CPLA-4-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD |
1,197 |
|
Datasheet | CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.417" L x 0.394" W (36.00mm x 10.00mm) | 0.189" (4.80mm) |
|
|
19F104JMOLDED UNSHIELDED RF COILS AXL |
2,212 |
|
Datasheet | 19F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1 mH | ±5% | 147 mA | - | Unshielded | 12.8Ohm Max | - | 2.8MHz | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
|
24FP-123KLFFIXED IND 120UH 1.12A 0.283OHM |
2,470 |
|
Datasheet | 24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 120 µH | ±10% | 1.12 A | 1A | Unshielded | 283mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-683KLFFIXED IND 680UH 490MA 1.5OHM TH |
4,711 |
|
Datasheet | 24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 680 µH | ±10% | 490 mA | 450mA | Unshielded | 1.5Ohm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-823KLFFIXED IND 820UH 420MA 1.98OHM TH |
3,149 |
|
Datasheet | 24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 820 µH | ±10% | 420 mA | 410mA | Unshielded | 1.98Ohm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-563KLFFIXED IND 560UH 560MA 1.14OHM TH |
4,610 |
|
Datasheet | 24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 560 µH | ±10% | 560 mA | 490mA | Unshielded | 1.14Ohm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
24FP-333KLFFIXED IND 330UH 740MA 0.65OHM TH |
4,605 |
|
Datasheet | 24FP | Axial | Tape & Reel (TR) | Active | Molded | - | 330 µH | ±10% | 740 mA | 630mA | Unshielded | 650mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|

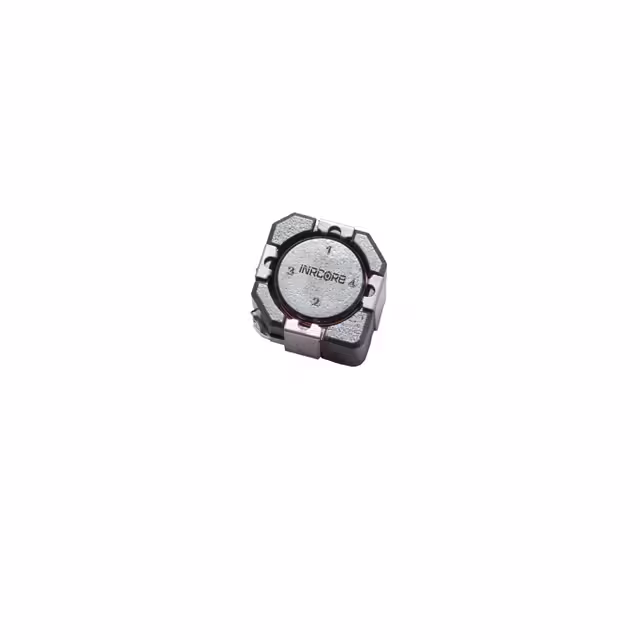

PL9406TFIXED IND 6.2UH 3.6A 25.2MOHM SM |
4,194 |
|
Datasheet | PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.2 µH | ±30% | 3.6 A | 3.6A | Shielded | 25.2mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
PL9407TFIXED IND 6.8UH 3.3A 27.8MOHM SM |
2,158 |
|
Datasheet | PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | 3.3 A | 3.3A | Shielded | 27.8mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
|
17S154MLFMOLDED SHIELDED RF COILS AXIAL |
1,207 |
|
Datasheet | 17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 mH | ±20% | 55 mA | - | Shielded | 26.5Ohm Max | 45 @ 250kHz | 1.2MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
