Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

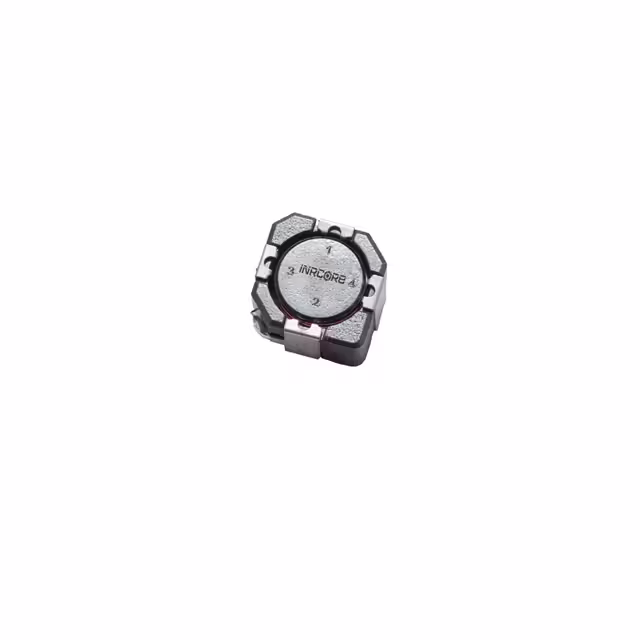

PL9411TFIXED IND 15UH 2.25A 65.2MOHM SM |
1,106 |
|
Datasheet | PL94XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 2.25 A | 2.25A | Shielded | 65.2mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.132" (3.35mm) |
|
BMRF001717708R2MB1INDUCTOR POWER |
2,797 |
|
Datasheet | BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 15 A | 20A | Shielded | 8.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
BMRF00171770100MB1INDUCTOR POWER |
1,666 |
|
Datasheet | BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 13 A | 18.5A | Shielded | 9.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
BMRF00171770220MB1INDUCTOR POWER |
2,940 |
|
Datasheet | BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 8.7 A | 10.5A | Shielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
BMRF00171770150MB1INDUCTOR POWER |
4,701 |
|
Datasheet | BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 11 A | 13.5A | Shielded | 15.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
MSC30101KTFIXED IND 100UH 84MA 8 OHM TH |
1,688 |
|
Datasheet | MSC30, Sigma Inductors | Axial | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 84 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
|
IHSM7832RG100KFIXED IND 10UH 5A 36 MOHM SMD |
1,338 |
|
Datasheet | IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±10% | 5 A | 1.7A | Unshielded | 36mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM7832RG101LFIXED IND 100UH 1.7A 226MOHM SMD |
4,626 |
|
Datasheet | IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 1.7 A | 680mA | Unshielded | 226mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM7832RG151LFIXED IND 150UH 1.4A 362MOHM SMD |
2,118 |
|
Datasheet | IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±15% | 1.4 A | 540mA | Unshielded | 362mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM7832RG330LFIXED IND 33UH 3A 84 MOHM SMD |
3,712 |
|
Datasheet | IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±15% | 3 A | 990mA | Unshielded | 84mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM7832RG390LFIXED IND 39UH 2.8A 95 MOHM SMD |
3,206 |
|
Datasheet | IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±15% | 2.8 A | 930mA | Unshielded | 95mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM7832RG470LFIXED IND 47UH 2.6A 120 MOHM SMD |
3,894 |
|
Datasheet | IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±15% | 2.6 A | 870mA | Unshielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM7832RG560LFIXED IND 56UH 2.4A 140 MOHM SMD |
4,852 |
|
Datasheet | IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±15% | 2.4 A | 820mA | Unshielded | 140mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM7832RG680LFIXED IND 68UH 2.1A 160 MOHM SMD |
3,581 |
|
Datasheet | IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±15% | 2.1 A | 760mA | Unshielded | 160mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
ATCA-05-900M-HFIXED IND 90UH 5A 34 MOHM TH |
2,348 |
|
Datasheet | ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 90 µH | ±20% | 5 A | - | Unshielded | 34mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.181" Dia (30.00mm) | 0.669" (17.00mm) |
|
ATCA-05-900M-VFIXED IND 90UH 5A 34 MOHM TH |
3,999 |
|
Datasheet | ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 90 µH | ±20% | 5 A | - | Unshielded | 34mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.181" L x 0.669" W (30.00mm x 17.00mm) | - |
|
|
2510R-00HFIXED IND 100NH 865MA 140MOHM SM |
3,952 |
|
Datasheet | 2510R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 100 nH | ±3% | 865 mA | - | Unshielded | 140mOhm Max | 25 @ 25MHz | 640MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | 0.110" (2.79mm) |
|
|
2510R-02HFIXED IND 120NH 785MA 170MOHM SM |
2,760 |
|
Datasheet | 2510R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 120 nH | ±3% | 785 mA | - | Unshielded | 170mOhm Max | 25 @ 25MHz | 610MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | 0.110" (2.79mm) |
|
|
2510R-04HFIXED IND 150NH 725MA 200MOHM SM |
4,948 |
|
Datasheet | 2510R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 150 nH | ±3% | 725 mA | - | Unshielded | 200mOhm Max | 25 @ 25MHz | 530MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | 0.110" (2.79mm) |
|
|
2510R-06HFIXED IND 180NH 690MA 220MOHM SM |
3,459 |
|
Datasheet | 2510R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 180 nH | ±3% | 690 mA | - | Unshielded | 220mOhm Max | 25 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | 0.110" (2.79mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
