Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6306-RCFIXED IND 10MH 100MA 31 OHM TH |
3,290 |
|
Datasheet | 6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 100 mA | - | Unshielded | 31Ohm Max | 95 @ 79.6kHz | 710kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - |
|
6302-RCFIXED IND 2.5MH 160MA 9 OHM TH |
2,088 |
|
Datasheet | 6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.5 mH | ±5% | 160 mA | - | Unshielded | 9Ohm Max | 95 @ 252kHz | 1.3MHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.470" Dia x 0.875" L (11.94mm x 22.22mm) | - |
|

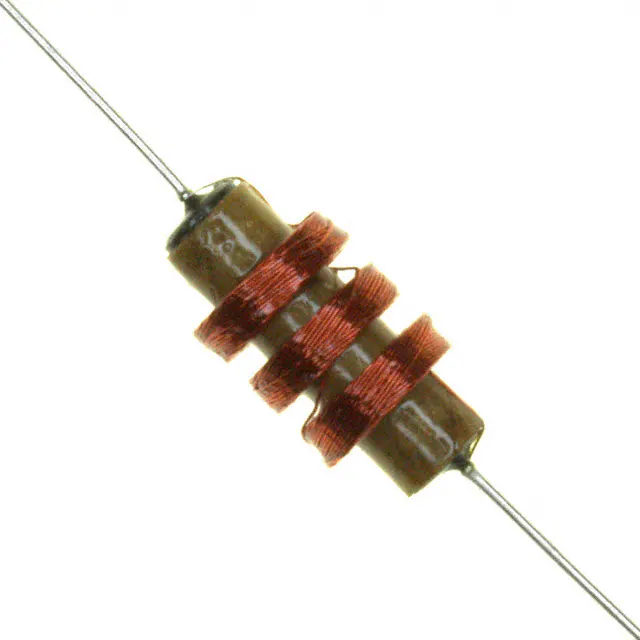

6304-RCFIXED IND 5MH 160MA 14 OHM TH |
3,571 |
|
Datasheet | 6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 mH | ±5% | 160 mA | - | Unshielded | 14Ohm Max | 80 @ 252kHz | 1MHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - |
|
CI100505-1N2DFIXED IND 1.2NH 300MA 90MOHM SMD |
1,245 |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 1.2 nH | ±0.3nH | 300 mA | - | Unshielded | 90mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-1N8DFIXED IND 1.8NH 300MA 120MOHM SM |
1,452 |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 1.8 nH | ±0.3nH | 300 mA | - | Unshielded | 120mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-2N7DFIXED IND 2.7NH 300MA 130MOHM SM |
2,524 |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 300 mA | - | Unshielded | 130mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-3N9DFIXED IND 3.9NH 300MA 210MOHM SM |
3,264 |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 300 mA | - | Unshielded | 210mOhm Max | 8 @ 100MHz | 4GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-5N6DFIXED IND 5.6NH 300MA 230MOHM SM |
3,747 |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 5.6 nH | ±0.3nH | 300 mA | - | Unshielded | 230mOhm Max | 8 @ 100MHz | 4GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-12NJFIXED IND 12NH 200MA 400MOHM SMD |
3,946 |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 12 nH | ±5% | 200 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 2.7GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-18NJFIXED IND 18NH 200MA 550MOHM SMD |
3,489 |
|
Datasheet | CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 18 nH | ±5% | 200 mA | - | Unshielded | 550mOhm Max | 8 @ 100MHz | 2.1GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
