Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9250A-686-RCFIXED IND 68MH 12MA 580 OHM TH |
2,943 |
|
Datasheet | 9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 68 mH | ±10% | 12 mA | 4mA | Shielded | 580Ohm Max | 23 @ 79kHz | 130kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-156-RCFIXED IND 15MH 22MA 157 OHM TH |
3,334 |
|
Datasheet | 9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 15 mH | ±10% | 22 mA | 12mA | Shielded | 157Ohm Max | 30 @ 79kHz | 290kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250A-186-RCFIXED IND 18MH 21MA 175 OHM TH |
2,843 |
|
Datasheet | 9250A | Axial | Bulk | Obsolete | Molded | Ferrite | 18 mH | ±10% | 21 mA | 10mA | Shielded | 175Ohm Max | 30 @ 79kHz | 280kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
CW201212-1R0GFIXED IND 1NH 600MA SMD |
1,908 |
|
Datasheet | CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 nH | ±2% | 600 mA | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
CW252016-1R0GFIXED IND 1UH 330MA 1.75 OHM SMD |
2,356 |
|
Datasheet | CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±2% | 330 mA | - | Unshielded | 1.75Ohm Max | 25 @ 50MHz | 290MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
CW252016-6R8JFIXED IND 6.8NH 150MA 6 OHM SMD |
1,057 |
|
Datasheet | CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 150 mA | - | Unshielded | 6Ohm | 18 @ 7.9MHz | 25MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|

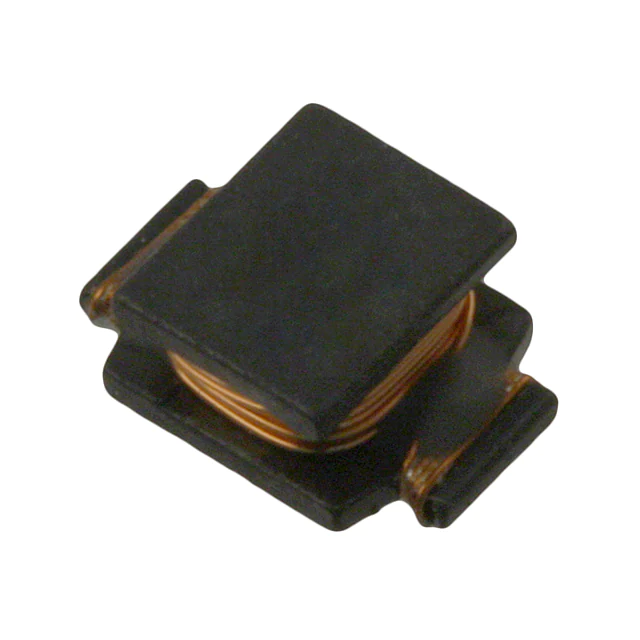

SDR0703-100MLFIXED IND 10UH 1A 170 MOHM SMD |
1,219 |
|
Datasheet | SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 1.4A | Unshielded | 170mOhm Max | 23 @ 2.52MHz | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
74F156AP-RCFIXED IND 1.5UH 900MA 250MOHM TH |
2,101 |
|
Datasheet | 74F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 1.5 µH | ±20% | 900 mA | - | Unshielded | 250mOhm Max | 45 @ 7.96MHz | 160MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.200" Dia x 0.500" L (5.08mm x 12.70mm) | - |
|

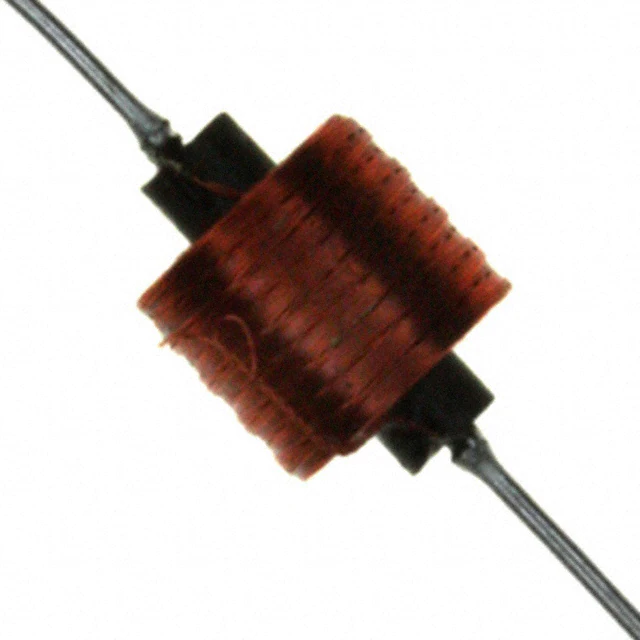

70F753AI-RCFIXED IND 7.5MH 41MA 85.2 OHM TH |
3,334 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 7.5 mH | ±5% | 41 mA | - | Unshielded | 85.2Ohm Max | 49 @ 250kHz | 600kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.380" L (7.87mm x 9.65mm) | - |
|
5622-RCFIXED IND 500UH 5A 90 MOHM TH |
2,402 |
|
Datasheet | 5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 5 A | - | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.110" (28.19mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
