Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM1210-181JFIXED IND 180UH 60MA 17 OHM SMD |
1,014 |
|
Datasheet | PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 60 mA | - | Unshielded | 17Ohm Max | 20 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

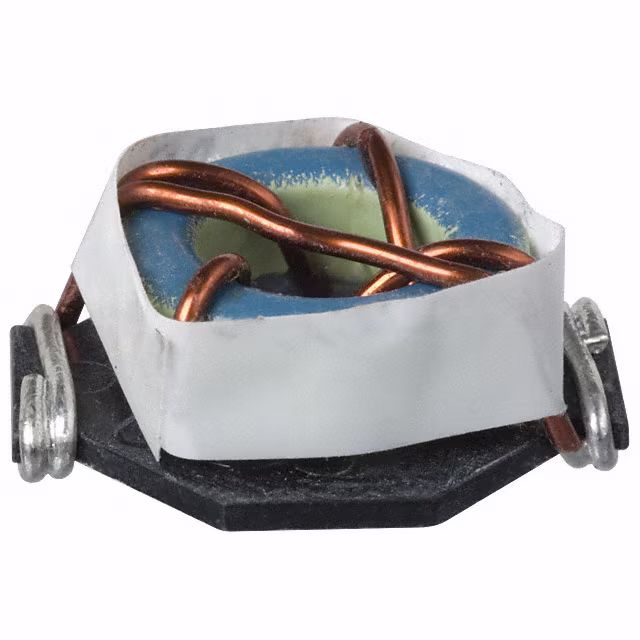

PM2110-5R6MFIXED IND 5.6UH 13.7A 5 MOHM SMD |
1,887 |
|
Datasheet | PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | 5.6 µH | ±20% | 13.7 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.570" (14.48mm) |
|
PM2110-390KFIXED IND 39UH 6.8A 20 MOHM SMD |
1,392 |
|
Datasheet | PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | 39 µH | ±10% | 6.8 A | - | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.620" (15.75mm) |
|
|
PM2110-331KFIXED IND 330UH 3.2A 90 MOHM SMD |
4,299 |
|
Datasheet | PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | 330 µH | ±10% | 3.2 A | - | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.600" (15.24mm) |
|
|
PM2110-391KFIXED IND 390UH 3.1A 98 MOHM SMD |
4,321 |
|
Datasheet | PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | 390 µH | ±10% | 3.1 A | - | Unshielded | 98mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.600" (15.24mm) |
|
PM2120-331KFIXED IND 330UH 3.6A 100MOHM SMD |
3,707 |
|
Datasheet | PM2120 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | 330 µH | ±10% | 3.6 A | - | Unshielded | 100mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.780" (19.81mm) |
|
1110-3R3MFIXED IND 3.3UH 9A 5 MOHM TH |
4,573 |
|
Datasheet | 1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 9 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-271KFIXED IND 270UH 1.6A 300 MOHM TH |
2,745 |
|
Datasheet | 1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 1.6 A | - | Unshielded | 300mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-471KFIXED IND 470UH 800MA 636MOHM TH |
3,006 |
|
Datasheet | 1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 800 mA | - | Unshielded | 636mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
1120-1R2MFIXED IND 1.2UH 11.4A 3 MOHM TH |
1,796 |
|
Datasheet | 1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 11.4 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
