Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM3308-221MFIXED IND 220UH 400MA 1.9OHM SMD |
2,810 |
|
Datasheet | PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 400 mA | 500mA | Unshielded | 1.9Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-681MFIXED IND 680UH 100MA 5.3OHM SMD |
2,505 |
|
Datasheet | PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 100 mA | 200mA | Unshielded | 5.3Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
|
PM3308-102MFIXED IND 1MH 50MA 8.4 OHM SMD |
3,095 |
|
Datasheet | PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 50 mA | 100mA | Unshielded | 8.4Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.118" (3.00mm) |
|
PM3340-681MFIXED IND 680UH 200MA 1.2OHM SMD |
2,962 |
|
Datasheet | PM3340 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 200 mA | 1A | Unshielded | 1.2Ohm Max | - | - | - | -55°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.402" W (13.00mm x 10.20mm) | 0.453" (11.50mm) |
|

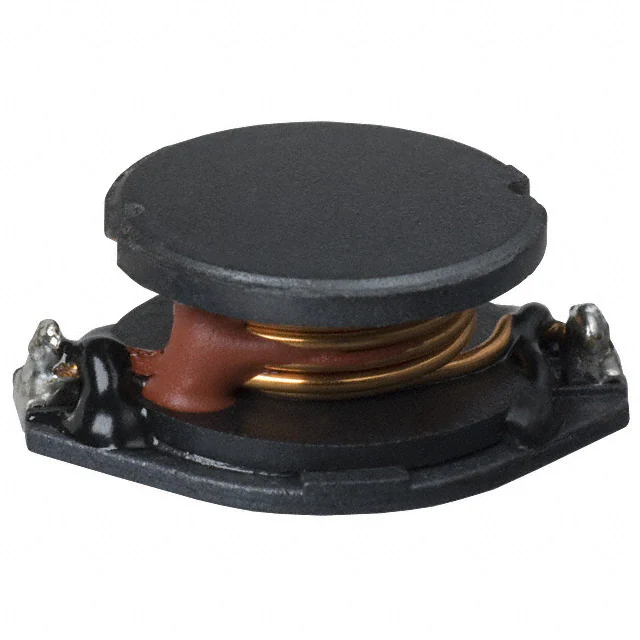

PM5022-102MFIXED IND 1MH 500MA 1.8 OHM SMD |
4,527 |
|
Datasheet | PM5022 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 500 mA | 1A | Unshielded | 1.8Ohm | - | - | - | -55°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
2102-HFIXED IND 12UH 10.3A 7 MOHM TH |
4,748 |
|
Datasheet | 2100 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 12 µH | ±15% | 10.3 A | - | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2215-HFIXED IND 180UH 3.8A 75 MOHM TH |
1,162 |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 180 µH | ±15% | 3.8 A | - | Shielded | 75mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
PM1812-R12KFIXED IND 120NH 770MA 200MOHM SM |
3,868 |
|
Datasheet | PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 120 nH | ±10% | 770 mA | - | Unshielded | 200mOhm Max | 35 @ 25.2MHz | 280MHz | - | -40°C ~ 100°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
PM1812-R18KFIXED IND 180NH 700MA 240MOHM SM |
2,546 |
|
Datasheet | PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 180 nH | ±10% | 700 mA | - | Unshielded | 240mOhm Max | 35 @ 25.2MHz | 220MHz | - | -40°C ~ 100°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
PM1812-R47KFIXED IND 470NH 545MA 320MOHM SM |
4,124 |
|
Datasheet | PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 470 nH | ±10% | 545 mA | - | Unshielded | 320mOhm Max | 40 @ 25.2MHz | 145MHz | - | -40°C ~ 100°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
