Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR0908-332YLFIXED IND 3.3MH 150MA 8 OHM SMD |
1,259 |
|
Datasheet | SRR0908 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±15% | 150 mA | 240mA | Shielded | 8Ohm Max | 95 @ 252kHz | 900kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.307" (7.80mm) |
|
|
SRR0908-5R6MLFIXED IND 5.6UH 3.8A 27 MOHM SMD |
2,110 |
|
Datasheet | SRR0908 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 3.8 A | 5.5A | Shielded | 27mOhm Max | 18 @ 7.96MHz | 25MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.307" (7.80mm) |
|
PM105-150M-RCFIXED IND 15UH 2.25A 80 MOHM SMD |
4,149 |
|
Datasheet | PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.25 A | 4A | Unshielded | 80mOhm | 30 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-181K-RCFIXED IND 180UH 720MA 630MOHM SM |
4,580 |
|
Datasheet | PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 720 mA | 1.3A | Unshielded | 630mOhm | 12 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-330K-RCFIXED IND 33UH 1.5A 120 MOHM SMD |
1,344 |
|
Datasheet | PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.5 A | 2.9A | Unshielded | 120mOhm | 25 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|

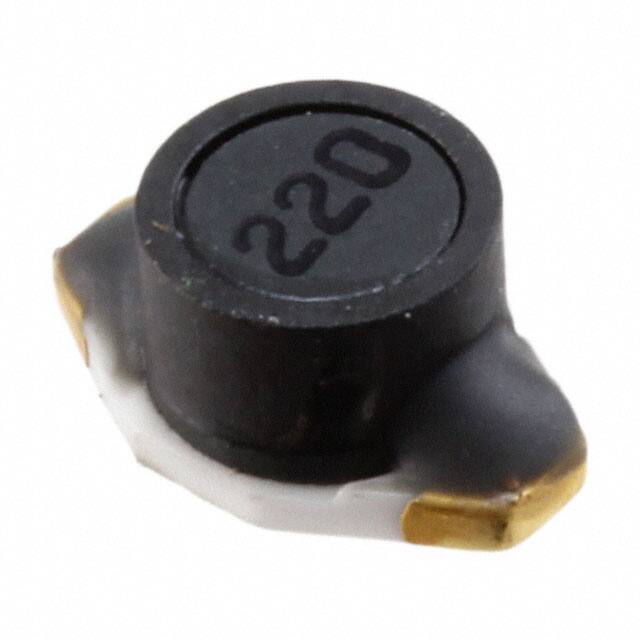

PM1608S-220M-RCFIXED IND 22UH 700MA 110MOHM SMD |
4,093 |
|
Datasheet | PM1608S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | - | Shielded | 110mOhm Max | 40 @ 100kHz | 25MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
SRP1038C-R10YFIXED IND 100NH 53A 0.38MOHM SMD |
1,132 |
|
Datasheet | SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 100 nH | ±30% | 53 A | 85A | Shielded | 0.38mOhm Max | 10 @ 100kHz | 215MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038C-R15MFIXED IND 150NH 45A 0.6 MOHM SMD |
2,640 |
|
Datasheet | SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 150 nH | ±20% | 45 A | 80A | Shielded | 0.6mOhm Max | 10 @ 100kHz | 150MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038C-R20MFIXED IND 200NH 40A 1 MOHM SMD |
4,803 |
|
Datasheet | SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 200 nH | ±20% | 40 A | 75A | Shielded | 1mOhm Max | 10 @ 100kHz | 142MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038C-R30MFIXED IND 300NH 38A 1.2 MOHM SMD |
3,097 |
|
Datasheet | SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 300 nH | ±20% | 38 A | 70A | Shielded | 1.2mOhm Max | 15 @ 100kHz | 99MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
