Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9250-565FIXED IND 5.6MH 28MA 98.9 OHM TH |
3,707 |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 28 mA | 17mA | Shielded | 98.9Ohm Max | 44 @ 250kHz | 730kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-685FIXED IND 6.8MH 27MA 111 OHM TH |
2,893 |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 27 mA | 16mA | Shielded | 111Ohm Max | 40 @ 250kHz | 660kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-565-RCFIXED IND 5.6MH 28MA 98.9 OHM TH |
2,347 |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 28 mA | 17mA | Shielded | 98.9Ohm Max | 44 @ 250kHz | 730kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-685-RCFIXED IND 6.8MH 27MA 111 OHM TH |
2,058 |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 27 mA | 16mA | Shielded | 111Ohm Max | 40 @ 250kHz | 660kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250-126FIXED IND 12MH 23MA 143 OHM TH |
3,770 |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 12 mH | ±10% | 23 mA | 13mA | Shielded | 143Ohm Max | 30 @ 79kHz | 330kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

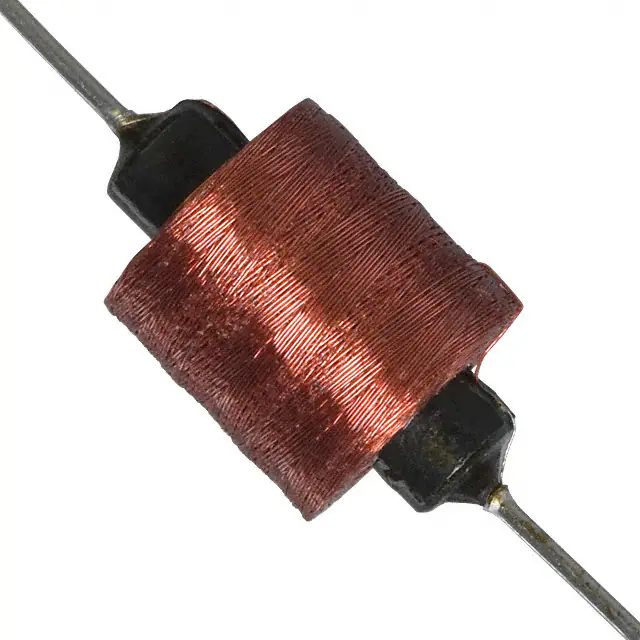

70F101AFFIXED IND 100MH 29MA 278 OHM TH |
3,708 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 mH | ±5% | 29 mA | - | Unshielded | 278Ohm Max | 48 @ 79kHz | 157kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.440" Dia x 0.630" L (11.18mm x 16.00mm) | - |
|
70F221AFFIXED IND 220MH 39MA 424 OHM TH |
2,380 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 mH | ±5% | 39 mA | - | Unshielded | 424Ohm Max | 51 @ 25kHz | 70kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.540" Dia x 0.880" L (13.72mm x 22.35mm) | - |
|
70F331AFFIXED IND 330MH 34MA 540 OHM TH |
3,775 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 mH | ±5% | 34 mA | - | Unshielded | 540Ohm Max | 54 @ 25kHz | 60kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.580" Dia x 0.880" L (14.73mm x 22.35mm) | - |
|
70F471AFFIXED IND 470MH 30MA 704 OHM TH |
2,737 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 mH | ±5% | 30 mA | - | Unshielded | 704Ohm Max | 55 @ 25kHz | 54kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.610" Dia x 0.880" L (15.49mm x 22.35mm) | - |
|
|
70F391AFFIXED IND 390MH 33MA 617 OHM TH |
1,363 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 390 mH | ±5% | 33 mA | - | Unshielded | 617Ohm Max | 54 @ 25kHz | 56kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.600" Dia x 0.880" L (15.24mm x 22.35mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
