Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0906-220MLFIXED IND 22UH 1.6A 130 MOHM SMD |
4,960 |
|
Datasheet | SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.6 A | 2.4A | Unshielded | 130mOhm Max | 35 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
SDR0906-120MLFIXED IND 12UH 2A 100 MOHM SMD |
2,543 |
|
Datasheet | SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2 A | 3.1A | Unshielded | 100mOhm Max | 35 @ 2.52MHz | 23MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
SDR0906-221KLFIXED IND 220UH 600MA 850MOHM SM |
4,836 |
|
Datasheet | SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 600 mA | 800mA | Unshielded | 850mOhm Max | 20 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
SDR0906-2R7MLFIXED IND 2.7UH 3.5A 40 MOHM SMD |
3,554 |
|
Datasheet | SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 3.5 A | 6.5A | Unshielded | 40mOhm Max | 30 @ 7.96MHz | 84MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
SDR0906-330KLFIXED IND 33UH 1.25A 180MOHM SMD |
2,259 |
|
Datasheet | SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.25 A | 2A | Unshielded | 180mOhm Max | 35 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|
8230-94-RCFIXED IND 100NH 1.1A 70 MOHM TH |
4,259 |
|
Datasheet | 8230 | Axial | Bulk | Active | Wirewound | Phenolic | 100 nH | ±10% | 1.1 A | - | Unshielded | 70mOhm Max | 40 @ 25MHz | 690MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-04-RCFIXED IND 220NH 935MA 140MOHM TH |
1,536 |
|
Datasheet | 8230 | Axial | Bulk | Active | Wirewound | Phenolic | 220 nH | ±10% | 935 mA | - | Unshielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-18-RCFIXED IND 820NH 380MA 850MOHM TH |
1,906 |
|
Datasheet | 8230 | Axial | Bulk | Active | Wirewound | Phenolic | 820 nH | ±10% | 380 mA | - | Unshielded | 850mOhm Max | 28 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-36-RCFIXED IND 4.7UH 320MA 1.2 OHM TH |
3,921 |
|
Datasheet | 8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 320 mA | - | Unshielded | 1.2Ohm Max | 45 @ 7.9MHz | 75MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

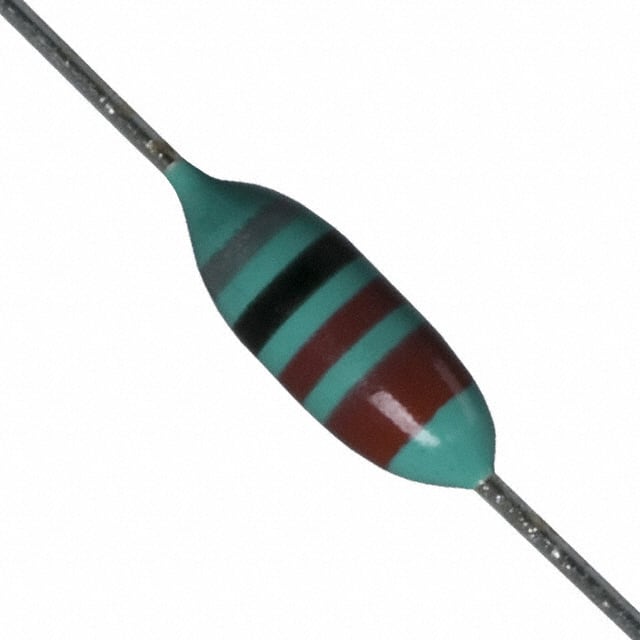

8230-52-RCFIXED IND 22UH 190MA 3.3 OHM TH |
4,889 |
|
Datasheet | 8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 190 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
