Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

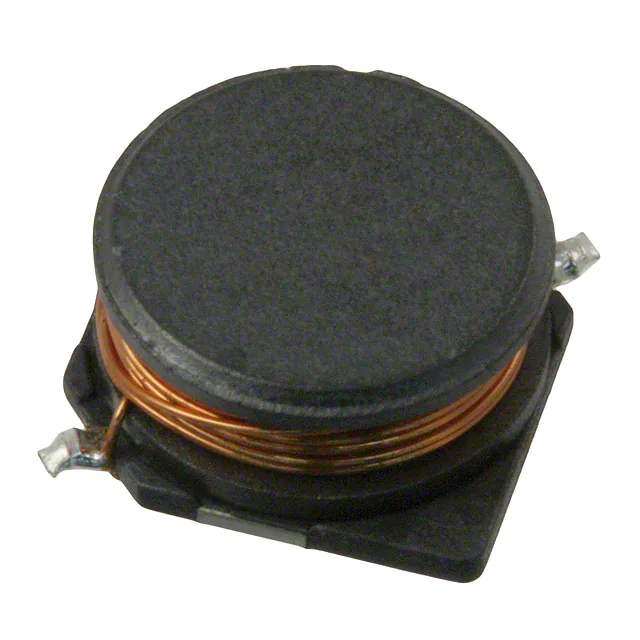

SDR1045-330MFIXED IND 33UH 1.9A 220 MOHM SMD |
4,613 |
|
Datasheet | SDR1045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.9 A | 2.1A | Unshielded | 220mOhm Max | 20 @ 2.52MHz | 15.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.189" (4.80mm) |
|
SDE1006A-1R5MFIXED IND 1.5UH 7.2A 18 MOHM SMD |
2,510 |
|
Datasheet | SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 7.2 A | 8A | Unshielded | 18mOhm Max | - | 69.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-3R3MFIXED IND 3.3UH 5.4A 24 MOHM SMD |
4,906 |
|
Datasheet | SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5.4 A | 6A | Unshielded | 24mOhm Max | - | 48.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-5R6MFIXED IND 5.6UH 4.5A 40 MOHM SMD |
4,001 |
|
Datasheet | SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 4.5 A | 5A | Unshielded | 40mOhm Max | - | 35.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-6R8MFIXED IND 6.8UH 4.2A 44 MOHM SMD |
4,286 |
|
Datasheet | SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.2 A | 4.6A | Unshielded | 44mOhm Max | - | 32.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-120MFIXED IND 12UH 3.6A 70 MOHM SMD |
4,429 |
|
Datasheet | SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 3.6 A | 3.8A | Unshielded | 70mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-180MFIXED IND 18UH 3A 90 MOHM SMD |
4,286 |
|
Datasheet | SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3 A | 2.8A | Unshielded | 90mOhm Max | - | 19.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-270MFIXED IND 27UH 2.3A 110 MOHM SMD |
3,143 |
|
Datasheet | SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2.3 A | 2.5A | Unshielded | 110mOhm Max | - | 13.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-390MFIXED IND 39UH 1.9A 140 MOHM SMD |
1,857 |
|
Datasheet | SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 1.9 A | 2.1A | Unshielded | 140mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-470KFIXED IND 47UH 1.8A 170 MOHM SMD |
2,859 |
|
Datasheet | SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.8 A | 1.95A | Unshielded | 170mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
