Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1245CC-1R5MIND SMD 1.5UH 27A |
1,269 |
|
Datasheet | SRP1245CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 27 A | 48A | Shielded | 3.5mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
SRU2013-470YFIXED IND 47UH 250MA 2.86OHM SMD |
4,146 |
|
Datasheet | SRU2013 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 250 mA | 230mA | Shielded | 2.86Ohm Max | 14 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
SRP0315-1R5KFIXED IND 1.5UH 4.1A 48 MOHM SMD |
2,519 |
|
Datasheet | SRP0315 | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±10% | 4.1 A | 4.4A | Shielded | 48mOhm Max | 14 @ 7.96MHz | 46MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.059" (1.50mm) |
|
|
SRP1265CC-R68MIND SMD 0.68UH 41A |
1,038 |
|
Datasheet | SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 680 nH | ±20% | 41 A | 58A | Shielded | 1.5mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|

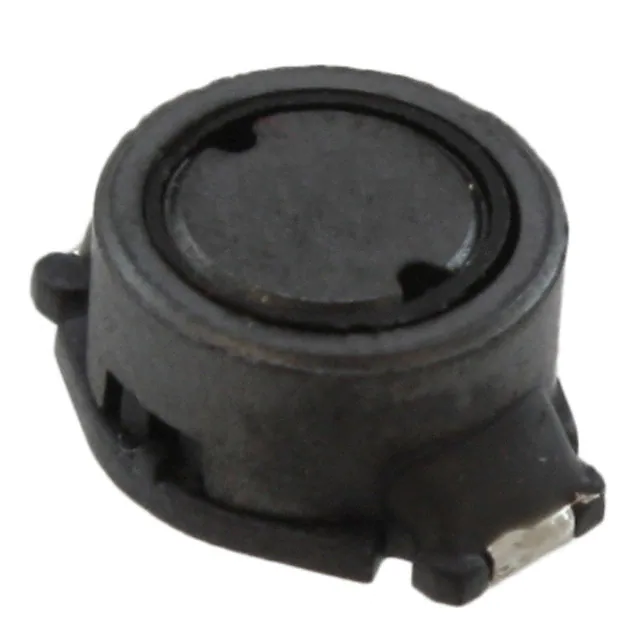

SRR0805-681KFIXED IND 680UH 170MA 3.4OHM SMD |
4,449 |
|
Datasheet | SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 170 mA | 320mA | Shielded | 3.4Ohm Max | 32 @ 796kHz | 2.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|

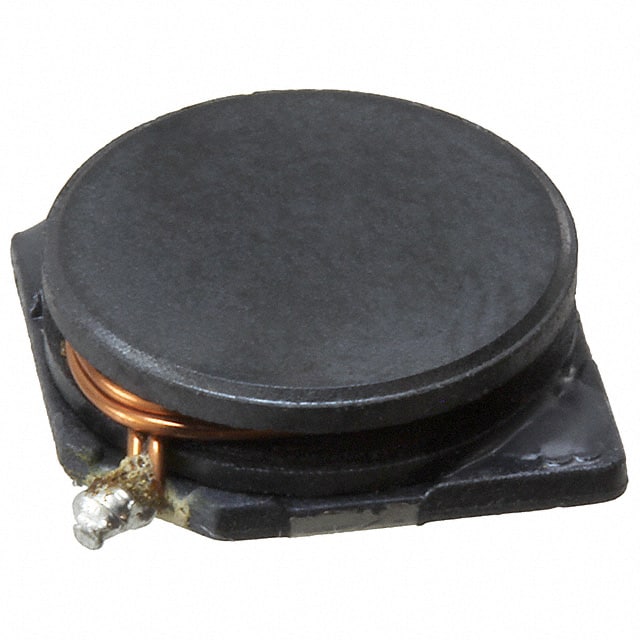

SDR1030-2R7MFIXED IND 2.7UH 3A 28 MOHM SMD |
4,787 |
|
Datasheet | SDR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 3 A | 4.2A | Unshielded | 28mOhm Max | 13 @ 7.96MHz | 73.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.130" (3.30mm) |
|
|
SRP7030CA-2R7MFIXED IND 2.7UH SMD |
4,402 |
|
Datasheet | SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 2.7 µH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
SRU6013-330YFIXED IND 33UH 780MA 500MOHM SMD |
2,048 |
|
Datasheet | SRU6013 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 780 mA | 580mA | Shielded | 500mOhm Max | 10 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.063" (1.60mm) |
|
SRE6603-102MFIXED IND 1MH 150MA 3.4 OHM SMD |
2,233 |
|
Datasheet | SRE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 150 mA | 45mA | Shielded | 3.4Ohm Max | 40 @ 100kHz | 2MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
9250-393FIXED IND 39UH 205MA 1.93 OHM TH |
3,480 |
|
Datasheet | 9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 205 mA | 180mA | Shielded | 1.93Ohm Max | 50 @ 2.5MHz | 29MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
