Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8230-30FIXED IND 2.7UH 495MA 500MOHM TH |
2,811 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 495 mA | - | Unshielded | 500mOhm Max | 37 @ 7.9MHz | 100MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-32FIXED IND 3.3UH 380MA 850MOHM TH |
4,086 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 380 mA | - | Unshielded | 850mOhm Max | 45 @ 7.9MHz | 90MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-34FIXED IND 3.9UH 350MA 1 OHM TH |
2,995 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 350 mA | - | Unshielded | 1Ohm Max | 45 @ 7.9MHz | 82MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-36FIXED IND 4.7UH 320MA 1.2 OHM TH |
1,721 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 320 mA | - | Unshielded | 1.2Ohm Max | 45 @ 7.9MHz | 75MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-38FIXED IND 5.6UH 260MA 1.8 OHM TH |
2,617 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 260 mA | - | Unshielded | 1.8Ohm Max | 50 @ 7.9MHz | 68MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-40FIXED IND 6.8UH 245MA 2 OHM TH |
2,924 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 245 mA | - | Unshielded | 2Ohm Max | 50 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

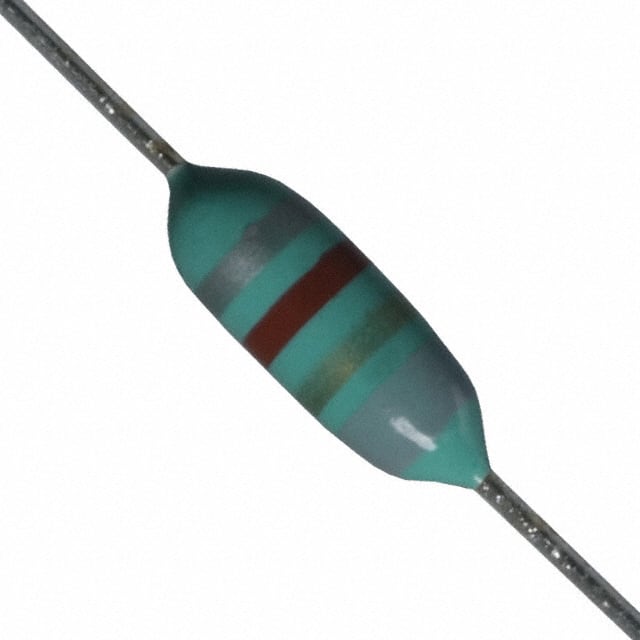

8230-42FIXED IND 8.2UH 210MA 2.7 OHM TH |
1,769 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 210 mA | - | Unshielded | 2.7Ohm Max | 55 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-44FIXED IND 10UH 180MA 3.7 OHM TH |
3,072 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 180 mA | - | Unshielded | 3.7Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

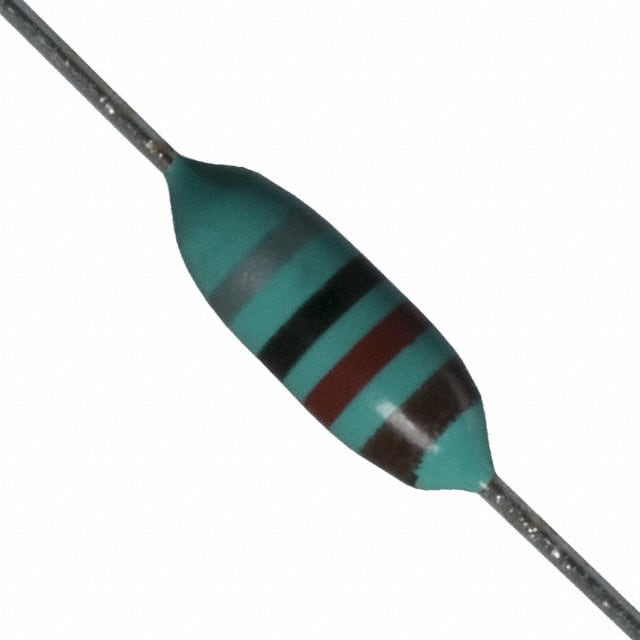

8230-46FIXED IND 12UH 210MA 2.7 OHM TH |
1,054 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 210 mA | - | Unshielded | 2.7Ohm Max | 45 @ 2.5MHz | 40MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

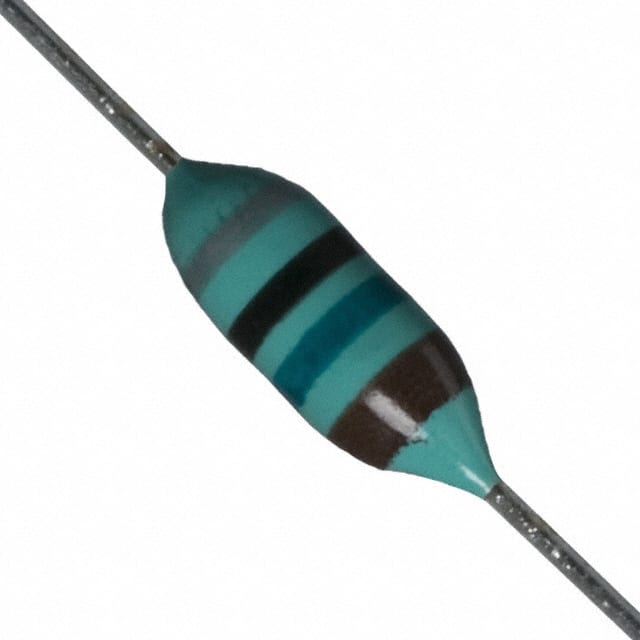

8230-48FIXED IND 15UH 205MA 2.8 OHM TH |
3,055 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 205 mA | - | Unshielded | 2.8Ohm Max | 45 @ 2.5MHz | 35MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
