Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8230-10FIXED IND 390NH 640MA 300MOHM TH |
1,851 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 390 nH | ±10% | 640 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 380MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

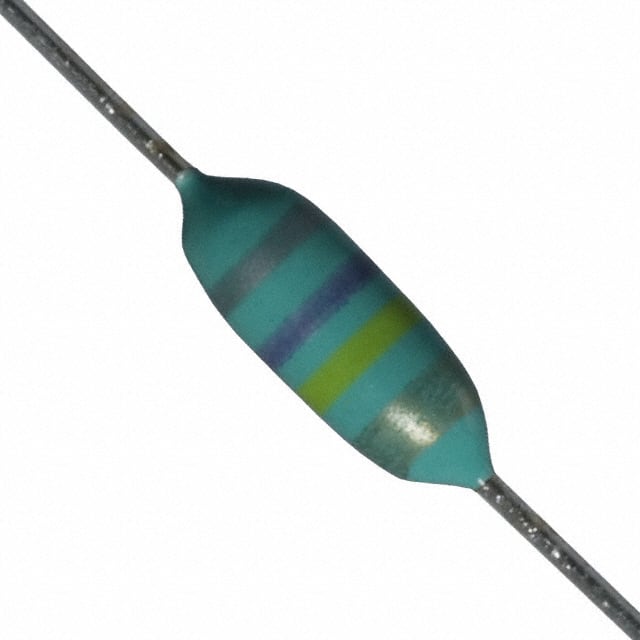

8230-12FIXED IND 470NH 590MA 350MOHM TH |
2,054 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 470 nH | ±10% | 590 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 340MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

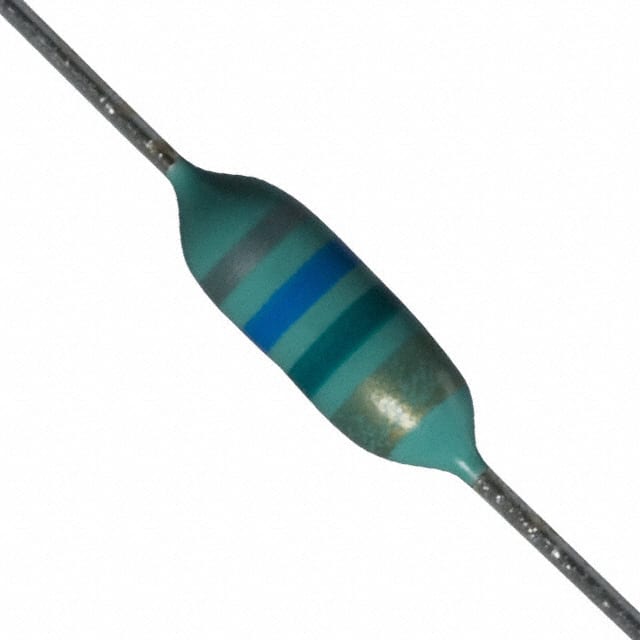

8230-14FIXED IND 560NH 495MA 500MOHM TH |
3,715 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 560 nH | ±10% | 495 mA | - | Unshielded | 500mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-16FIXED IND 680NH 450MA 600MOHM TH |
3,412 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 680 nH | ±10% | 450 mA | - | Unshielded | 600mOhm Max | 28 @ 25MHz | 275MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-18FIXED IND 820NH 380MA 850MOHM TH |
4,918 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 820 nH | ±10% | 380 mA | - | Unshielded | 850mOhm Max | 28 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

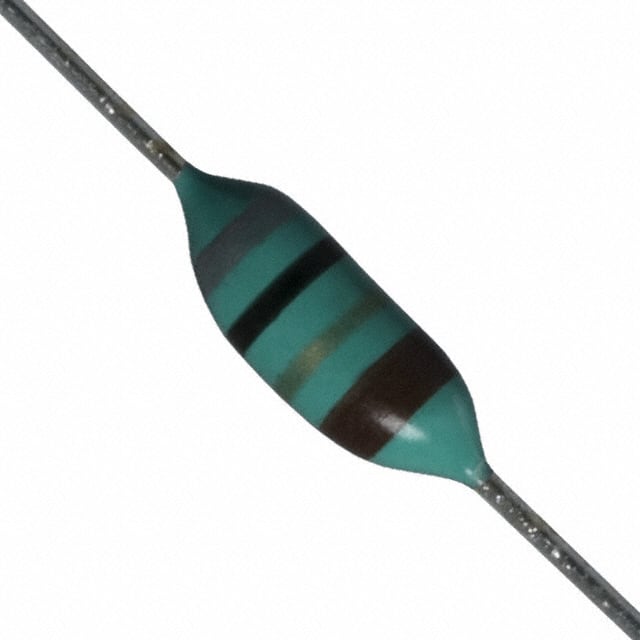

8230-20FIXED IND 1UH 350MA 1 OHM TH |
1,355 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 1 µH | ±10% | 350 mA | - | Unshielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-22FIXED IND 1.2UH 825MA 180MOHM TH |
3,022 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 825 mA | - | Unshielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-24FIXED IND 1.5UH 745MA 220MOHM TH |
2,045 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 745 mA | - | Unshielded | 220mOhm Max | 28 @ 7.9MHz | 140MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-26FIXED IND 1.8UH 640MA 300MOHM TH |
4,158 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 640 mA | - | Unshielded | 300mOhm Max | 30 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-28FIXED IND 2.2UH 550MA 400MOHM TH |
1,657 |
|
Datasheet | 8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 550 mA | - | Unshielded | 400mOhm Max | 30 @ 7.9MHz | 115MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
