Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1208-270MLFIXED IND 27UH 3A 48 MOHM SMD |
1,887 |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 3 A | 4.3A | Shielded | 48mOhm Max | 23 @ 2.52MHz | 6.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-180MLFIXED IND 18UH 3.8A 40 MOHM SMD |
1,678 |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3.8 A | 4A | Shielded | 40mOhm Max | 21 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-122KLFIXED IND 1.2MH 400MA 2 OHM SMD |
1,135 |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 400 mA | 570mA | Shielded | 2Ohm Max | 10 @ 252kHz | 800kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-681KLFIXED IND 680UH 600MA 1 OHM SMD |
794 |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 600 mA | 820mA | Shielded | 1Ohm Max | 13 @ 796kHz | 1.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-472KLFIXED IND 4.7MH 280MA 9.6OHM SMD |
485 |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 280 mA | 300mA | Shielded | 9.6Ohm Max | 20 @ 252kHz | 420kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
SRP3020TA-R47MFIXED IND 470NH 7A 23 MOHM SMD |
257 |
|
Datasheet | SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 470 nH | ±20% | 7 A | 9A | Shielded | 23mOhm Max | 5 @ 100kHz | 105MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
SRR6040A-330MFIXED IND 33UH 1.1A 120 MOHM SMD |
2,861 |
|
Datasheet | SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 1.1 A | 1.02A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
|
SRR1208-390YLFIXED IND 39UH 2.5A 76 MOHM SMD |
1,172 |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±15% | 2.5 A | 3.4A | Shielded | 76mOhm Max | 25 @ 2.52MHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|

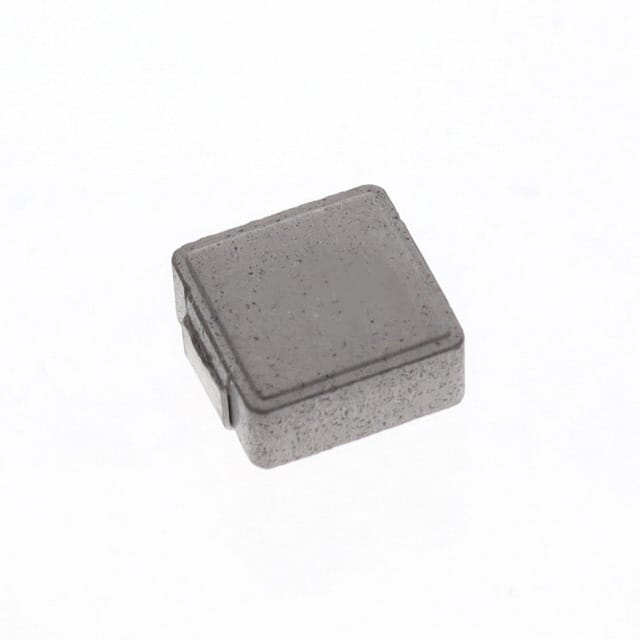

SRP6530A-3R3MIND,7.1X6.6X3MM,3.3UH20%,8A,SHD |
2,076 |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 8 A | 13.5A | Shielded | 30mOhm Max | 24 @ 7.96MHz | 25MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

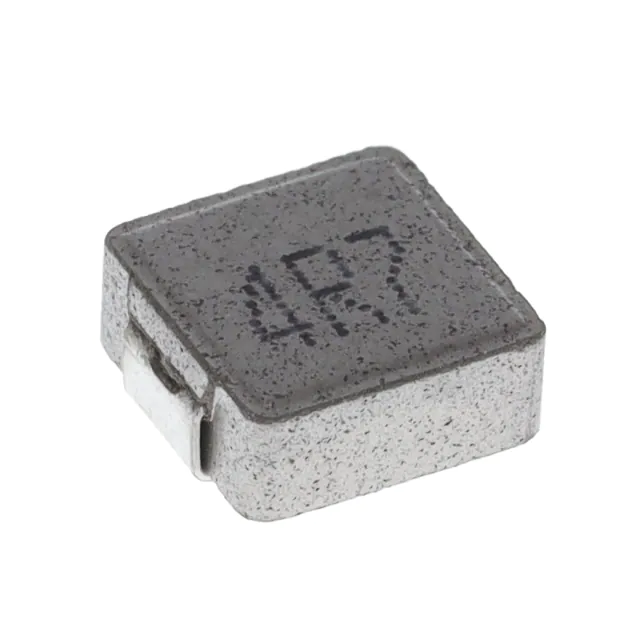

SRP6530A-4R7MIND,7.1X6.6X3MM,4.7UH20%,6A,SHD |
128 |
|
Datasheet | SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 6 A | 11A | Shielded | 40mOhm Max | 21 @ 7.96MHz | 22MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
