Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

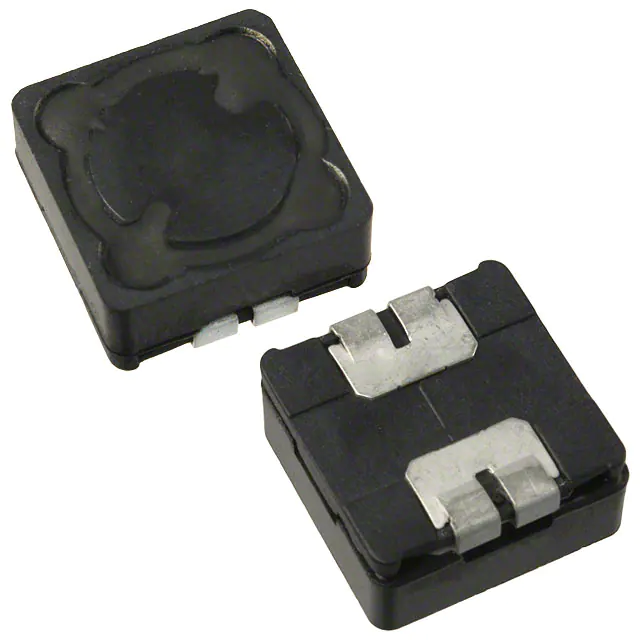

SRR1206-120MLFIXED IND 12UH 3A 38 MOHM SMD |
7,788 |
|
Datasheet | SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 3 A | 5.5A | Shielded | 38mOhm Max | 18 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
RL622-104K-RCFIXED IND 100MH 20MA 235 OHM TH |
3,080 |
|
Datasheet | RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 20 mA | - | Unshielded | 235Ohm Max | 20 @ 25.2kHz | 100kHz | - | -55°C ~ 105°C | 25.2 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
SRR1206-100MLFIXED IND 10UH 3.3A 35 MOHM SMD |
2,027 |
|
Datasheet | SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.3 A | 5.7A | Shielded | 35mOhm Max | 18 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
SRR1205-500YLFIXED IND 50UH 1.5A 200 MOHM SMD |
773 |
|
Datasheet | SRR1205 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±15% | 1.5 A | 2.8A | Shielded | 200mOhm Max | 18 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.217" (5.50mm) |
|
SRR1208-150MLFIXED IND 15UH 4A 36 MOHM SMD |
26,983 |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4 A | 5.6A | Shielded | 36mOhm Max | 21 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-120MLFIXED IND 12UH 4.8A 25 MOHM SMD |
25,250 |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 4.8 A | 6.5A | Shielded | 25mOhm Max | 19 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-330YLFIXED IND 33UH 2.8A 62 MOHM SMD |
19,679 |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±15% | 2.8 A | 3.8A | Shielded | 62mOhm Max | 23 @ 2.52MHz | 6.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-100MLFIXED IND 10UH 5A 21 MOHM SMD |
16,314 |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5 A | 6.7A | Shielded | 21mOhm Max | 20 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
SRP3020TA-2R2MFIXED IND 2.2UH 3.5A 75 MOHM SMD |
14,242 |
|
Datasheet | SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 3.5 A | 3.7A | Shielded | 75mOhm Max | 10 @ 100kHz | 45MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRR1208-4R5MLFIXED IND 4.5UH 6.5A 14 MOHM SMD |
12,542 |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.5 µH | ±20% | 6.5 A | 10A | Shielded | 14mOhm Max | 24 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
